Boot Hard Disk Drive (HDD) Replacement

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

6

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

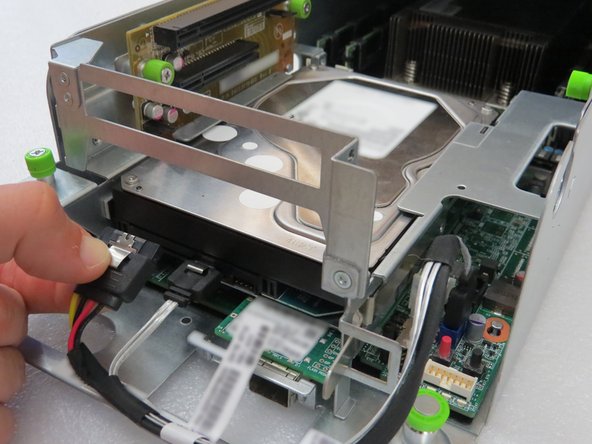

  1. Disconnect the power cable. Press the metal retention tab to release the cable. Press the metal retention tab to release the cable.

    • Disconnect the power cable.

    • Press the metal retention tab to release the cable.

    Edit

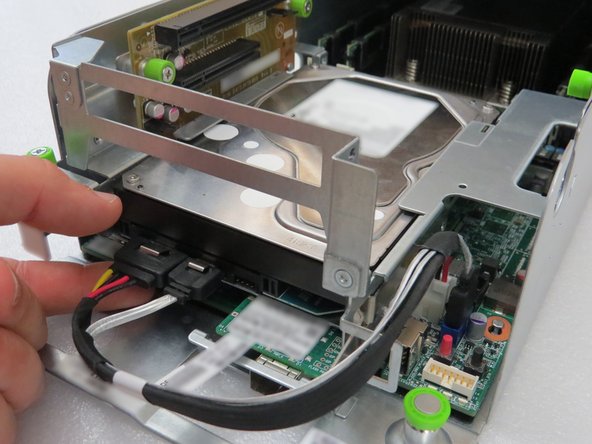

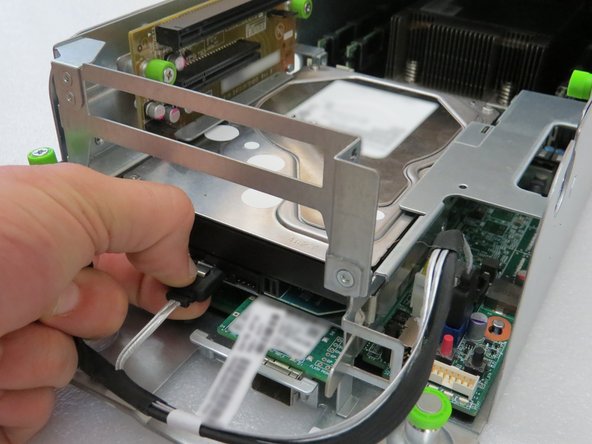

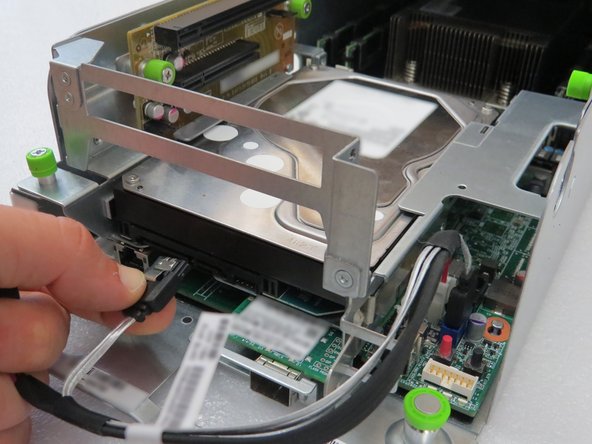

  2. Disconnect the SATA cable. Press the metal retention tab to release the cable.

    • Disconnect the SATA cable.

    • Press the metal retention tab to release the cable.

    Edit

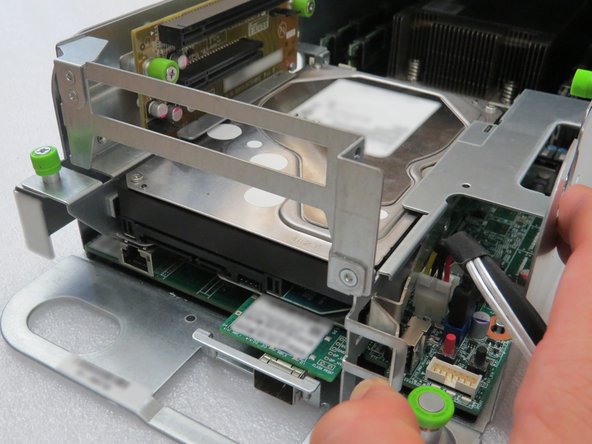

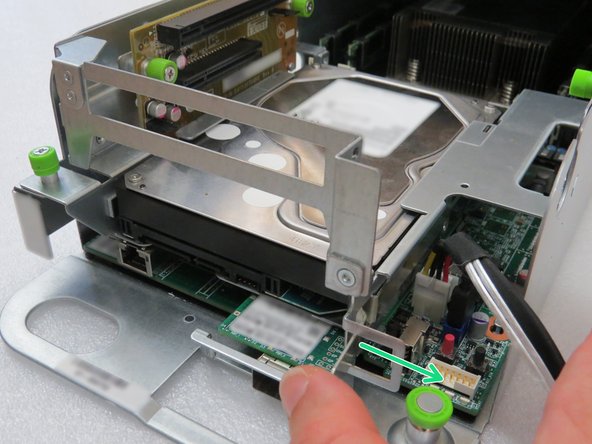

  3. Press the hard disk drive retention bracket towards the right. Press the hard disk drive retention bracket towards the right.

    • Press the hard disk drive retention bracket towards the right.

    Edit

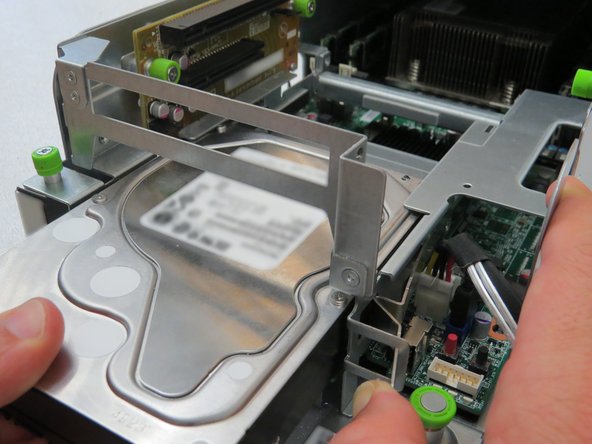

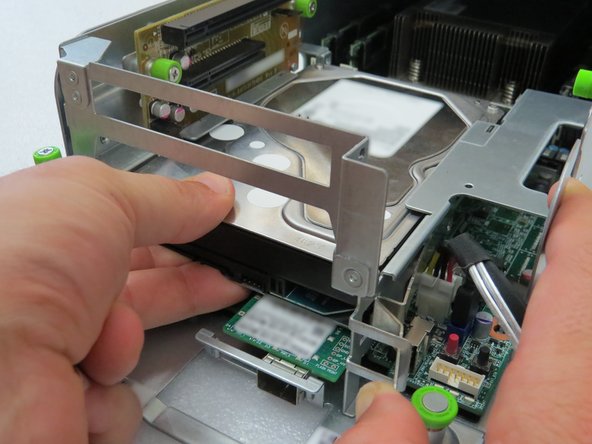

  4. Remove the boot hard disk drive. Remove the boot hard disk drive.

    • Remove the boot hard disk drive.

    Edit

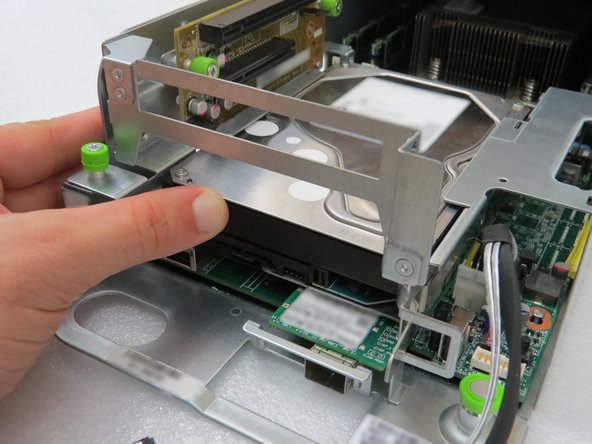

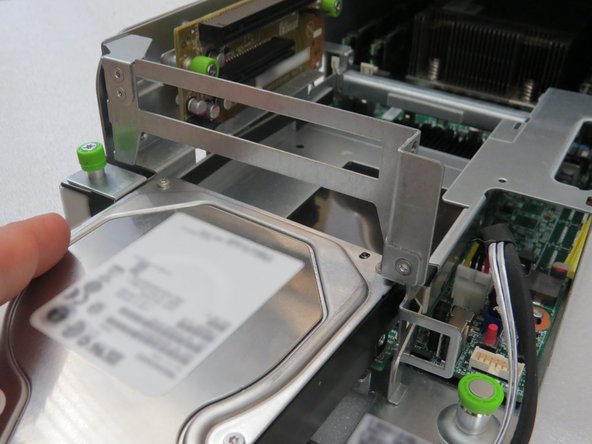

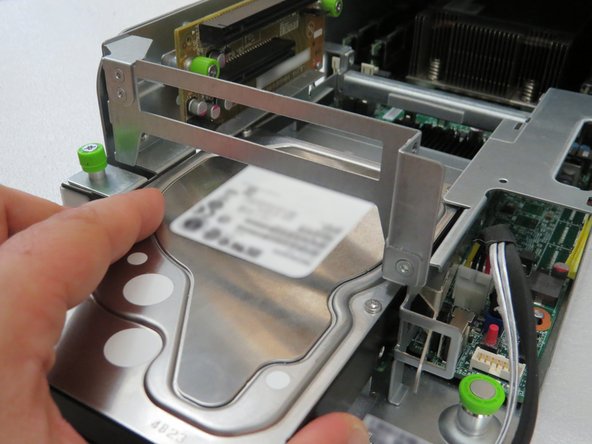

  5. Push the HDD back into the riser cage assembly. Retention tab will 'click' when the HDD has seated properly. Retention tab will 'click' when the HDD has seated properly.

    • Push the HDD back into the riser cage assembly.

    • Retention tab will 'click' when the HDD has seated properly.

    Edit

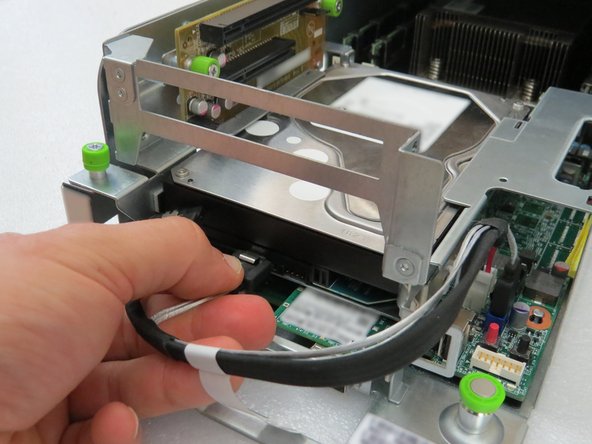

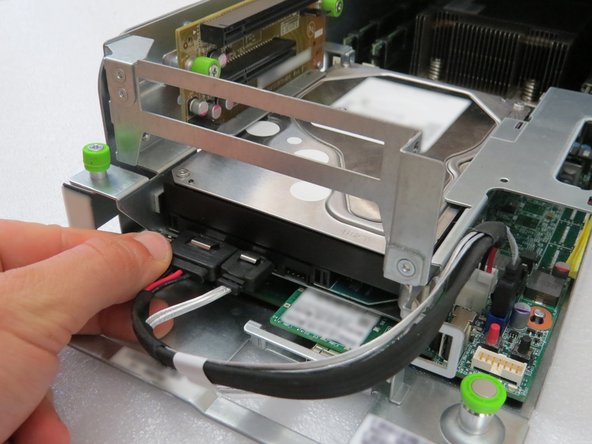

  6. Connect the SATA / power cable to the hard disk drive. Connect the SATA / power cable to the hard disk drive.

    • Connect the SATA / power cable to the hard disk drive.

    Edit
