Boot Hard Disk Drive Replacement

Written By: Ross Williams (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

13

Time Required

Suggest a time??

Sections

1

Flags

0

Introduction

Overview

This guide demonstrates how to replace the boot hard disk drive from the Open Compute V3 server. == Acronyms and Terms == * HDD - Hard Disk Drive * Mini-SAS - Mini Serial Attached SCSI * RAID - Redundant Array of Independent Disks * SCSI - Small Computer System Interface * SFP - Small Form-factor Pluggable Plus

  1. The server can be powered off remotely or on the hardware itself.

    • The server can be powered off remotely or on the hardware itself.

    • Remote Power Down: Login to the server to power it off.

    • shutdown -h now;exit

    • Hardware Power Down: Press and hold the power switch for at least three seconds, as annotated.

    Edit

  2. Disconnect the Mini-SAS cable by pulling on the pull-tab, as shown. Disconnect the Mini-SAS cable by pulling on the pull-tab, as shown.

    • Disconnect the Mini-SAS cable by pulling on the pull-tab, as shown.

    Edit

  3. Disconnect the Ethernet cable from the server. Press the tab on the end of the cable to release it.

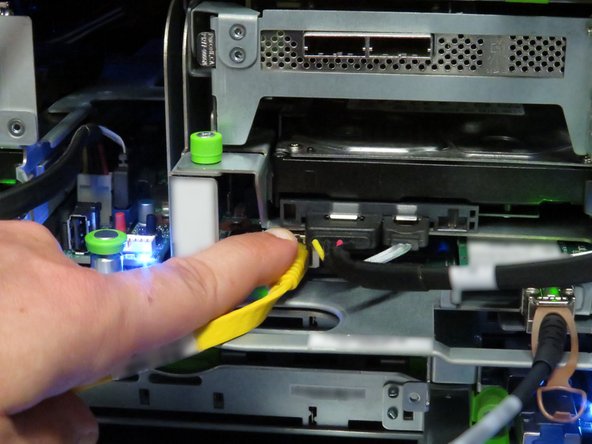

    • Disconnect the Ethernet cable from the server.

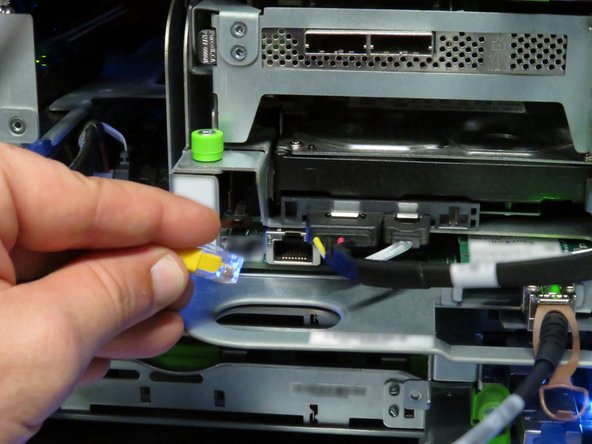

    • Press the tab on the end of the cable to release it.

    Edit

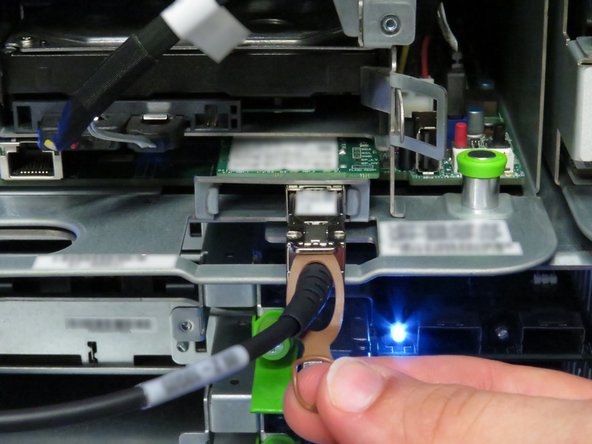

  4. Disconnect the 10G SFP+ cable by pulling on the pull-tab, as shown. Disconnect the 10G SFP+ cable by pulling on the pull-tab, as shown.

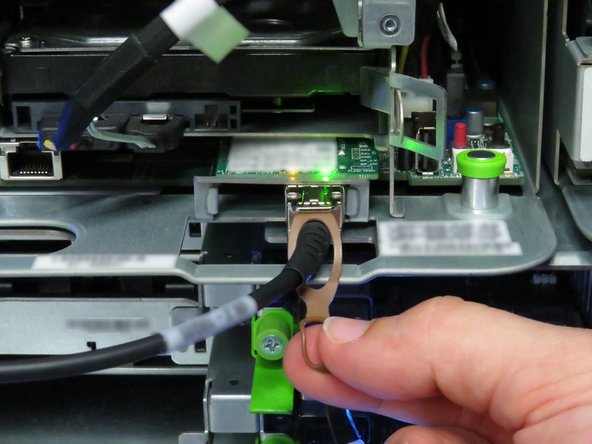

    • Disconnect the 10G SFP+ cable by pulling on the pull-tab, as shown.

    Edit

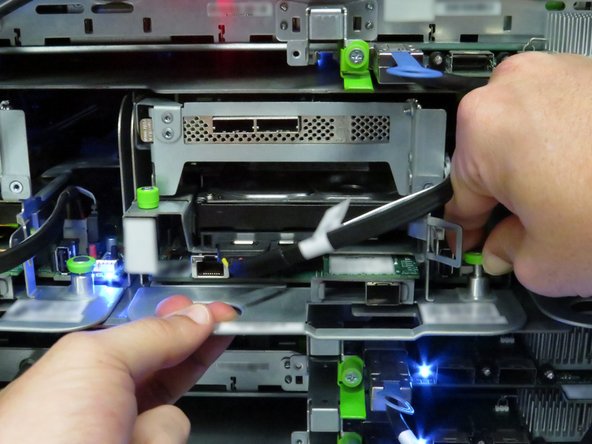

  5. Pull the retention plunger upwards. Grasp the server as shown. Remove the server from the rack.

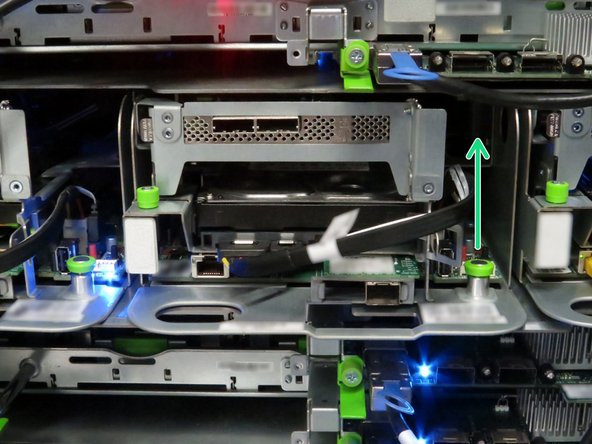

    • Pull the retention plunger upwards.

    • Grasp the server as shown.

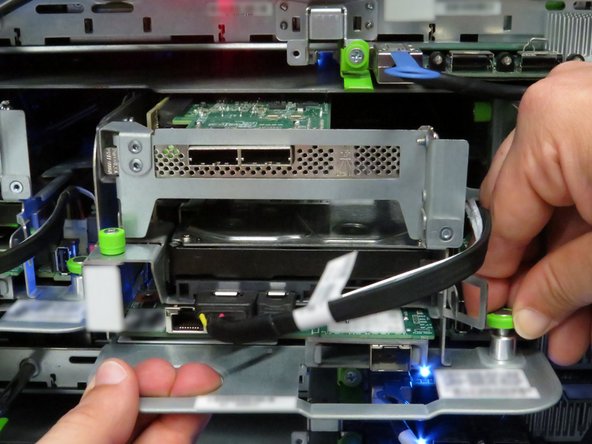

    • Remove the server from the rack.

    Edit

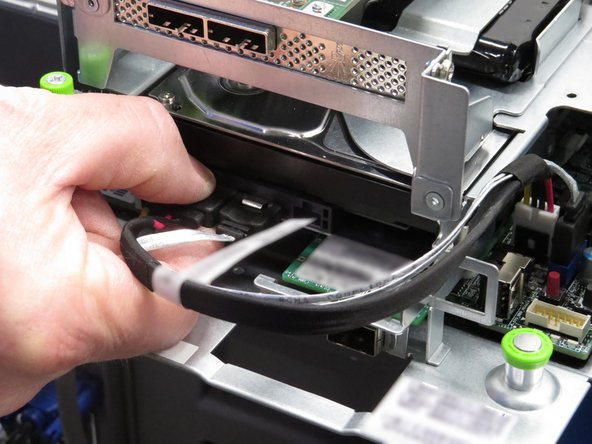

  6. Disconnect the HDD SATA / Power cable, as shown. Make sure to engage the locking mechanisms on the cable. Make sure to engage the locking mechanisms on the cable.

    • Disconnect the HDD SATA / Power cable, as shown.

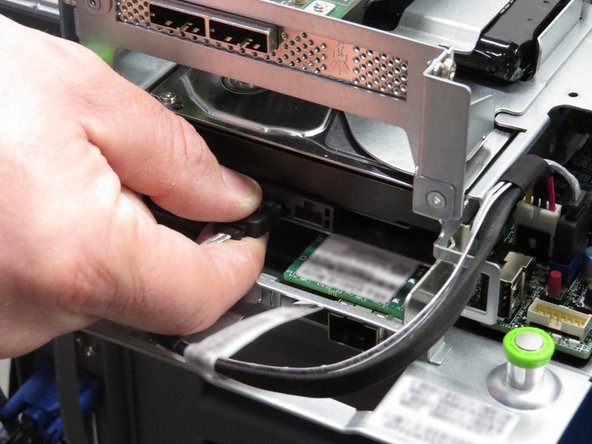

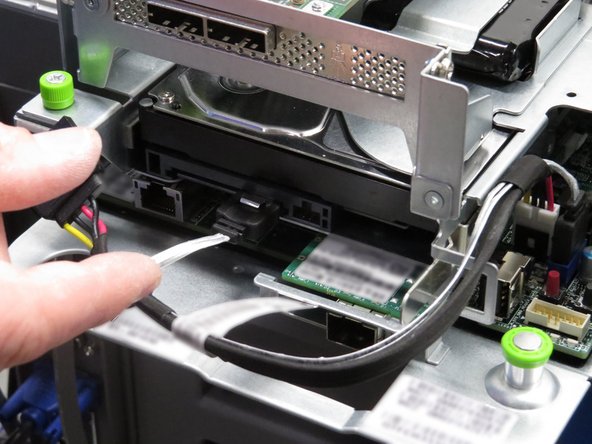

    • Make sure to engage the locking mechanisms on the cable.

    Edit

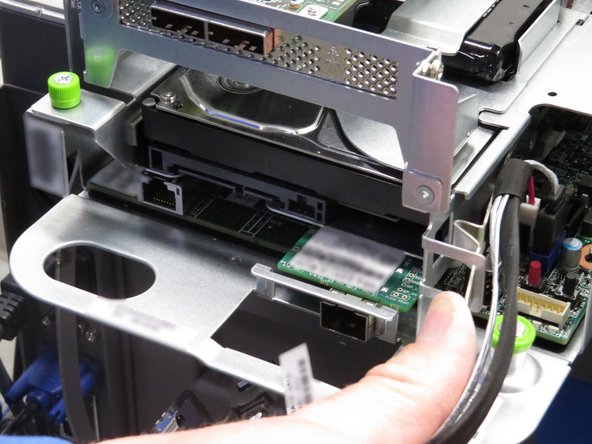

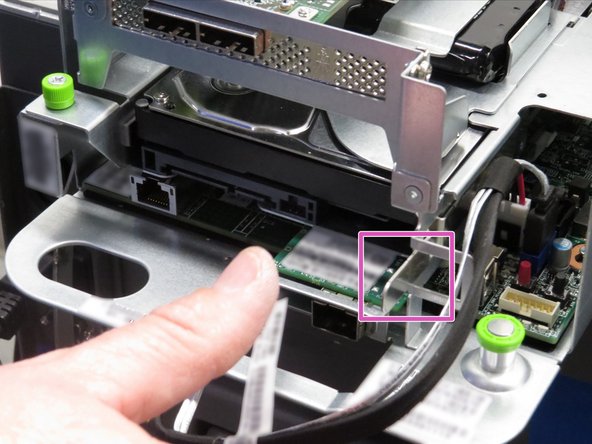

  7. Push the HDD retention tab towards the right of the server node, as shown. Push the HDD retention tab towards the right of the server node, as shown.

    • Push the HDD retention tab towards the right of the server node, as shown.

    Edit

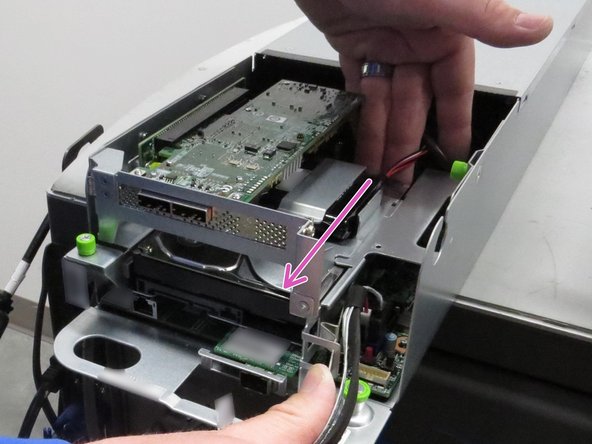

  8. With the retention tab pushed outward, push the HDD towards front of the server. Remove the HDD from the server.

    • With the retention tab pushed outward, push the HDD towards front of the server.

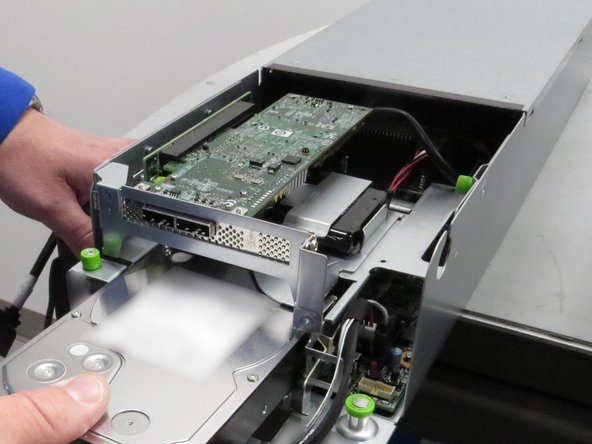

    • Remove the HDD from the server.

    Edit

  9. Insert a new HDD into the drive cage.

    • Insert a new HDD into the drive cage.

    • You do not need to actuate the HDD retention lever when inserting a new HDD.

    • Connect the SATA / Power cable to the new HDD.

    Edit

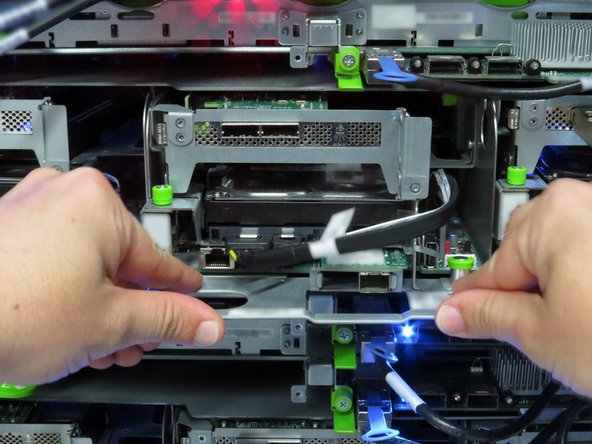

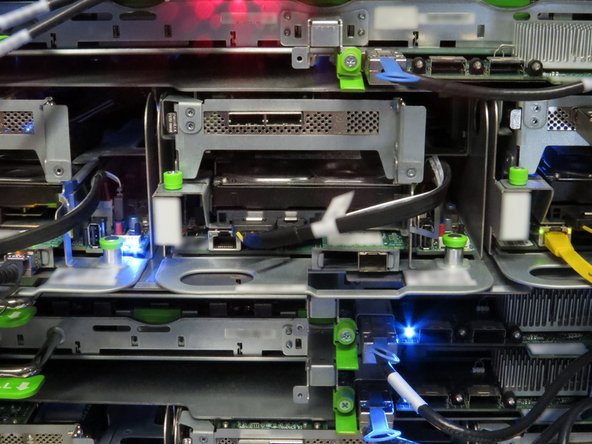

  10. Place the server in the slot where it was previously removed. Push the server into the slot. Do not use the chassis handle as it could pinch your hand.

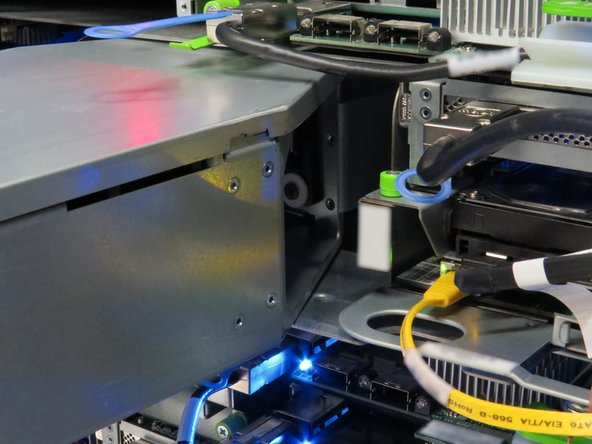

    • Place the server in the slot where it was previously removed.

    • Push the server into the slot.

    • Do not use the chassis handle as it could pinch your hand.

    Edit

  11. Connect the Ethernet cable to the RJ45 port on the server motherboard.

    • Connect the Ethernet cable to the RJ45 port on the server motherboard.

    Edit

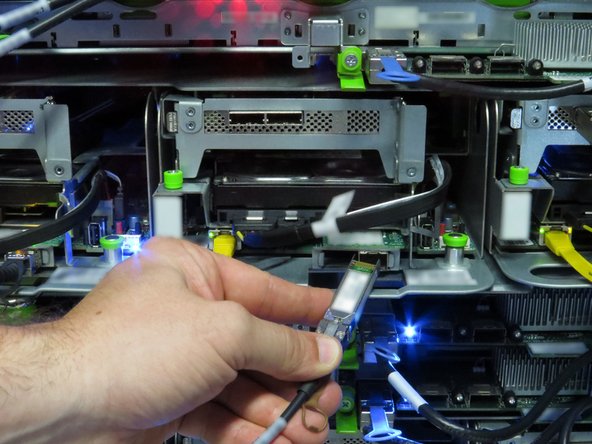

  12. Connect the 10G SFP+ cable to the network interface controller port. A distinctive 'click' will be audible when the cable is seated correctly.

    • Connect the 10G SFP+ cable to the network interface controller port.

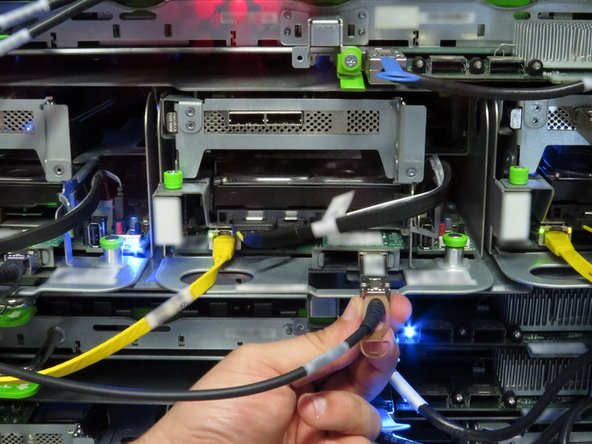

    • A distinctive 'click' will be audible when the cable is seated correctly.

    Edit

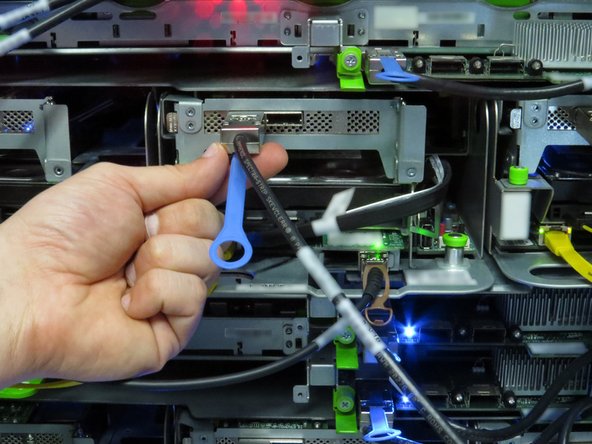

  13. Connect the Mini-SAS cable to the RAID controller.

    • Connect the Mini-SAS cable to the RAID controller.

    Edit
