Introduction

Overview

This guide demonstrates how to replace a central processing unit in a Open Compute V3 server node. == Acronyms and Terms == * CPU - Central Processing Unit

  1. The server can be powered off remotely or on the hardware itself.

    • The server can be powered off remotely or on the hardware itself.

    • Remote Power Down: Login to the server to power it off.

    • shutdown -h now;exit

    • Hardware Power Down: Press and hold the power switch for at least three seconds, as annotated.

    Edit

  2. Disconnect the Mini-SAS cable by pulling on the pull-tab, as shown. Disconnect the Mini-SAS cable by pulling on the pull-tab, as shown.

    • Disconnect the Mini-SAS cable by pulling on the pull-tab, as shown.

    Edit

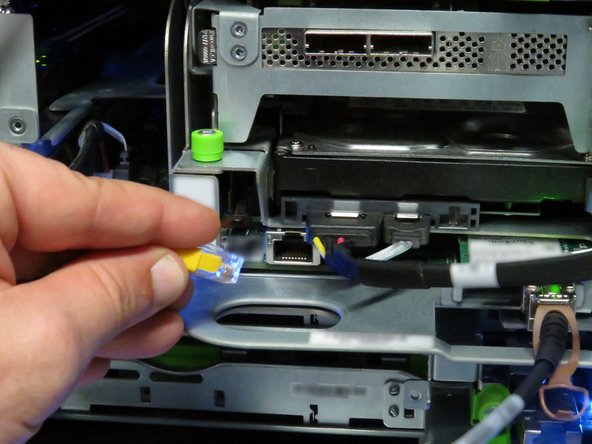

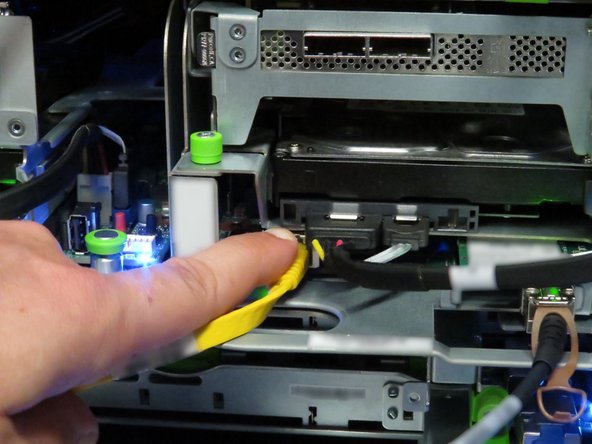

  3. Disconnect the Ethernet cable from the server. Press the tab on the end of the cable to release it.

    • Disconnect the Ethernet cable from the server.

    • Press the tab on the end of the cable to release it.

    Edit

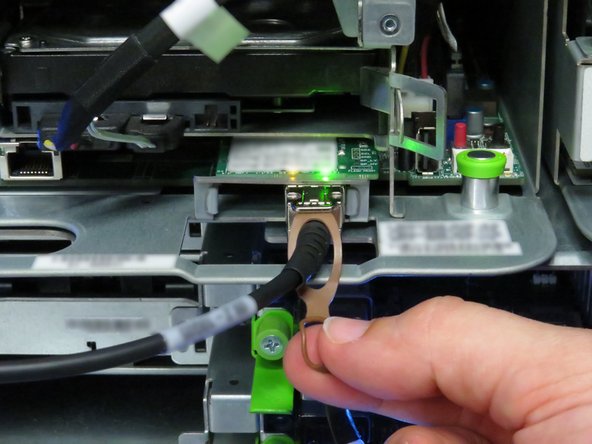

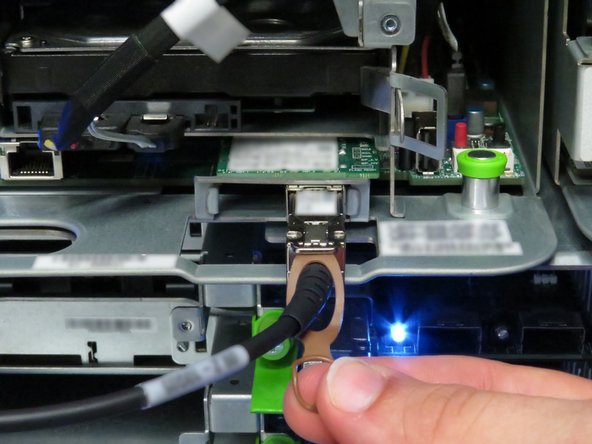

  4. Disconnect the 10G SFP+ cable by pulling on the pull-tab, as shown. Disconnect the 10G SFP+ cable by pulling on the pull-tab, as shown.

    • Disconnect the 10G SFP+ cable by pulling on the pull-tab, as shown.

    Edit

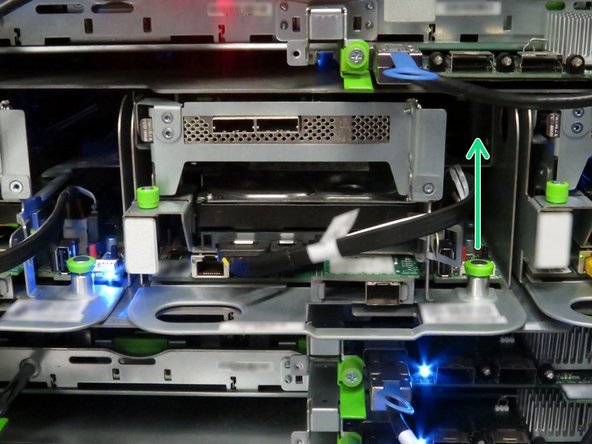

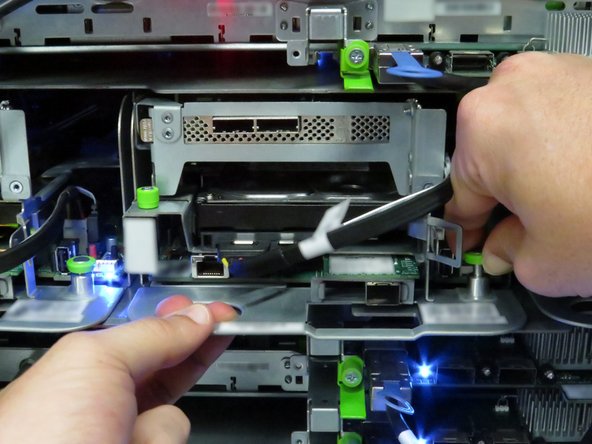

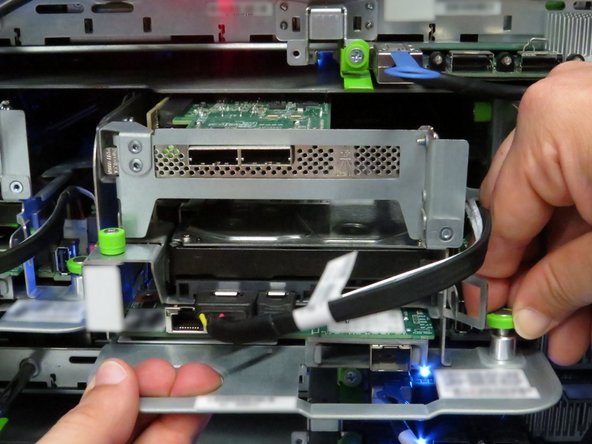

  5. Pull the retention plunger upwards. Grasp the server as shown. Remove the server from the rack.

    • Pull the retention plunger upwards.

    • Grasp the server as shown.

    • Remove the server from the rack.

    Edit

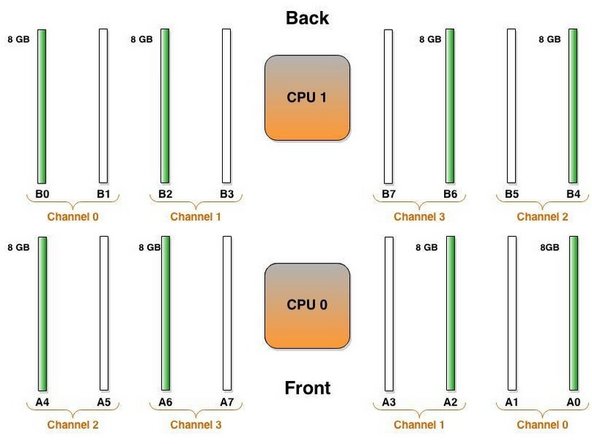

  6. This image displays the DIMM slots and CPU.

    • This image displays the DIMM slots and CPU.

    • The green column displays the populated DIMM slots.

    • The orange column displays the unpopulated DIMM slots.

    Edit

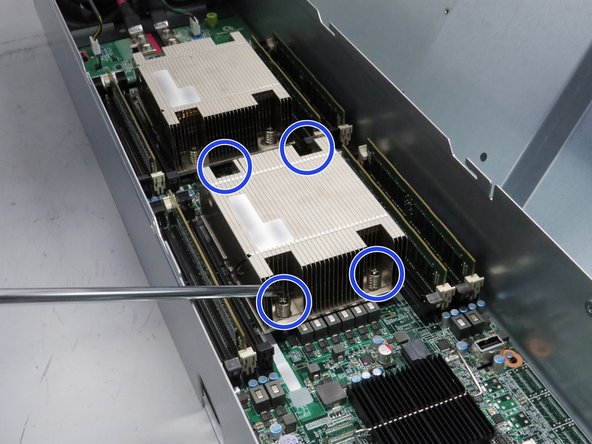

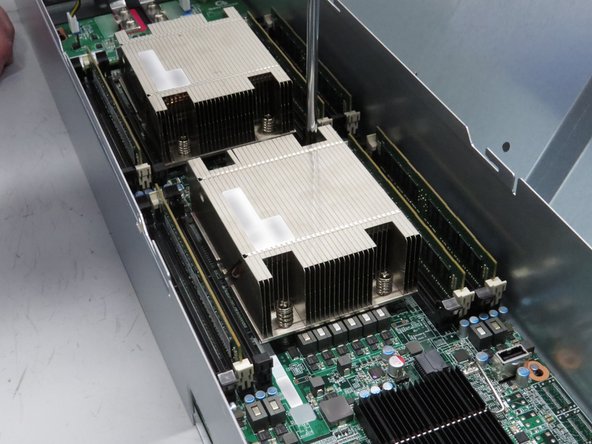

  7. The heatsink may be hot. Loosen four screws. Select screws in a diagonal fashion. To loosen, use about two screwdriver rotations.

    • The heatsink may be hot.

    • Loosen four screws. Select screws in a diagonal fashion.

    • To loosen, use about two screwdriver rotations.

    Edit

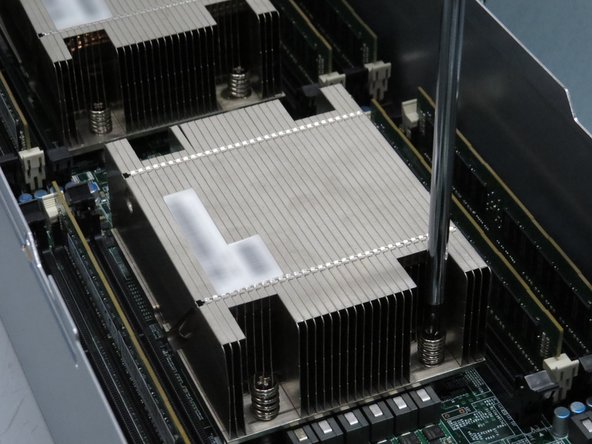

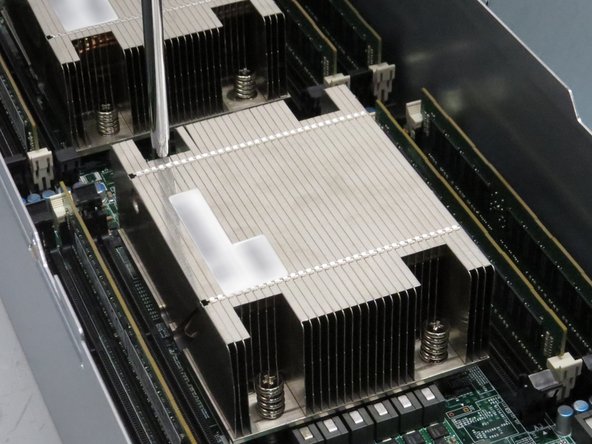

  8. Continue to unscrew the screws holding the heat sink to the CPU until you can remove it. Continue to unscrew the screws holding the heat sink to the CPU until you can remove it.

    • Continue to unscrew the screws holding the heat sink to the CPU until you can remove it.

    Edit

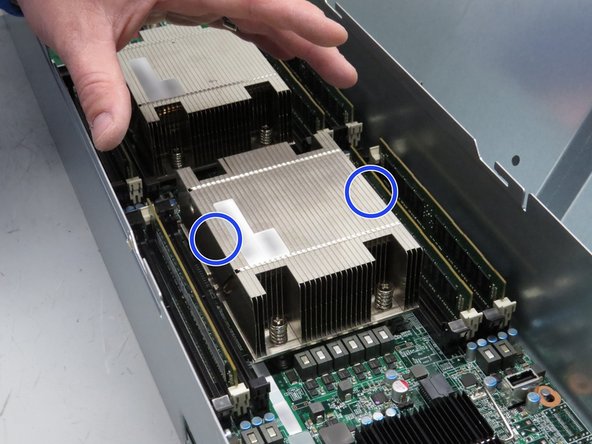

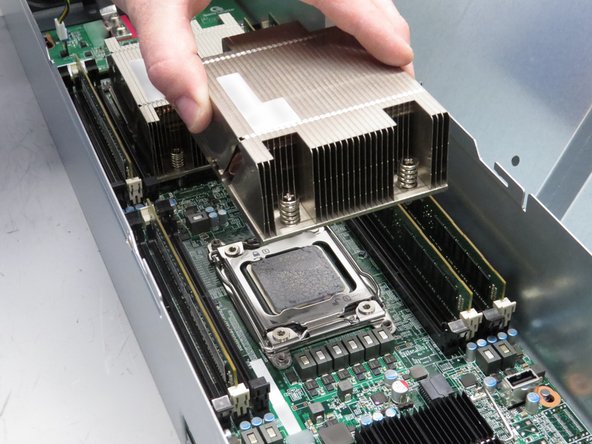

  9. Grab the heatsink as shown. Lift the heatsink off the CPU. Lift the heatsink off the CPU.

    • Grab the heatsink as shown.

    • Lift the heatsink off the CPU.

    Edit

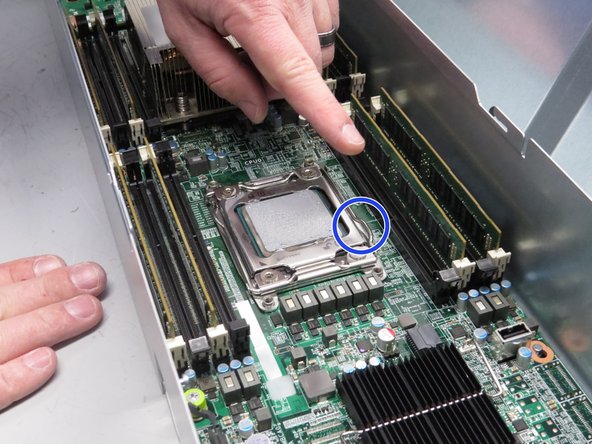

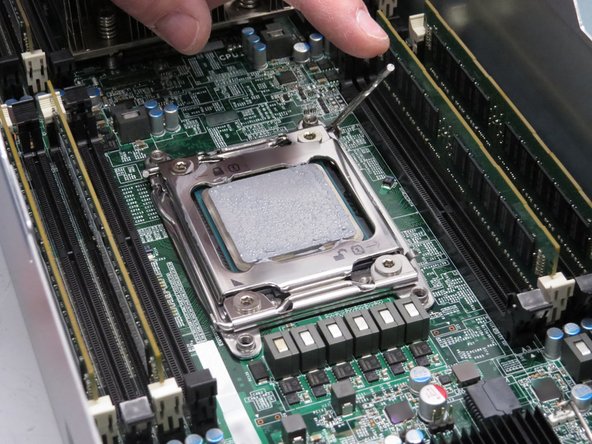

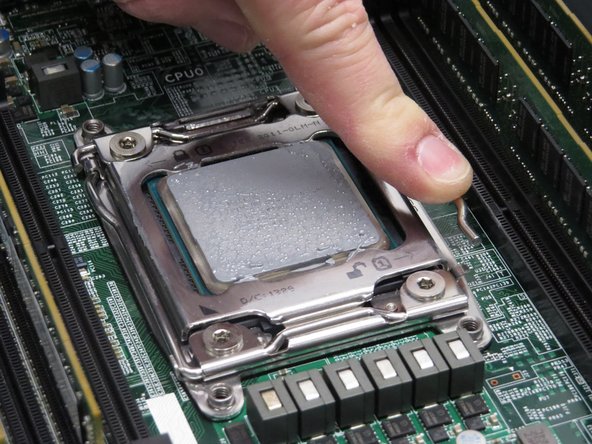

  10. Grab the right CPU socket retention lever, as shown. Press the lever down and away from the CPU. The CPU socket retention lever is spring loaded. Keep pressure on the lever as it lifts.

    • Grab the right CPU socket retention lever, as shown.

    • Press the lever down and away from the CPU.

    • The CPU socket retention lever is spring loaded. Keep pressure on the lever as it lifts.

    Edit

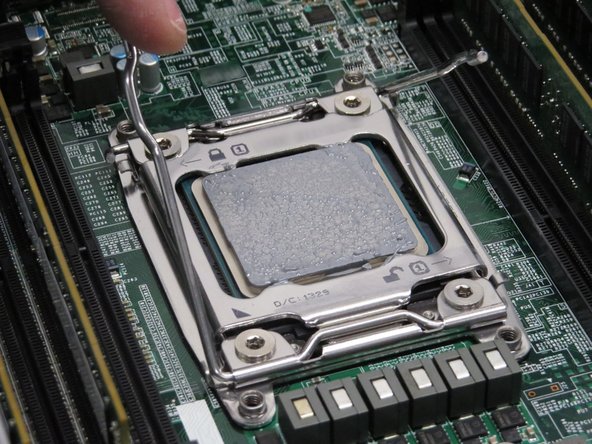

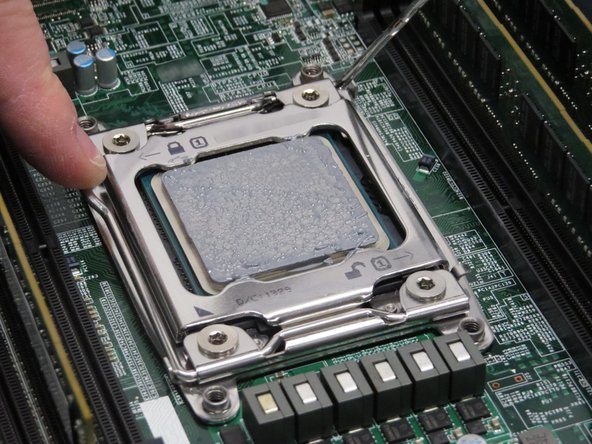

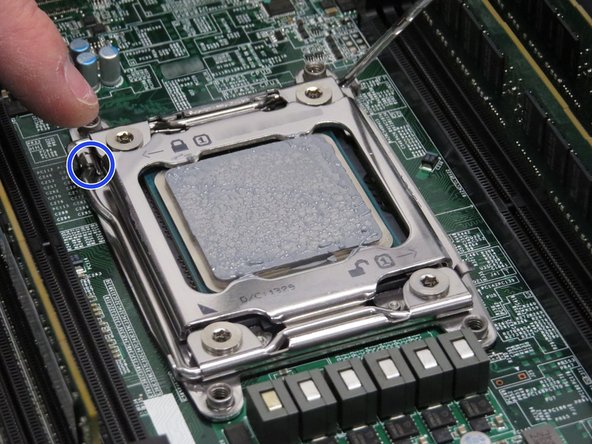

  11. Release the left lever. Release the left lever. Release the left lever.

    • Release the left lever.

    Edit

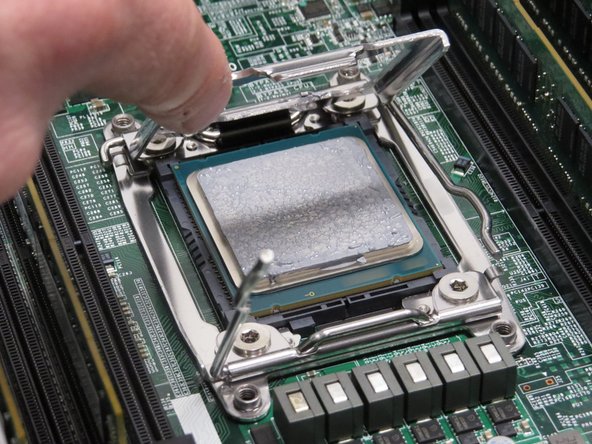

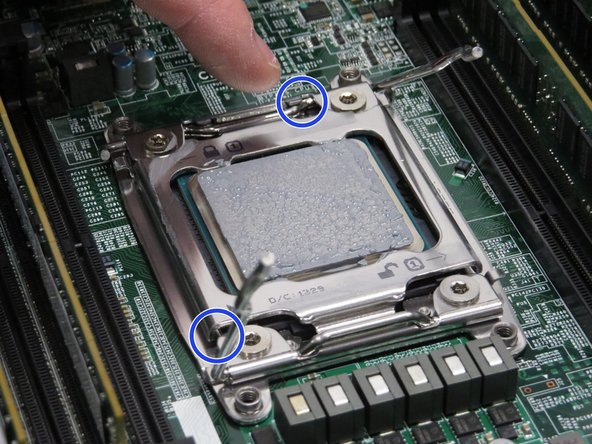

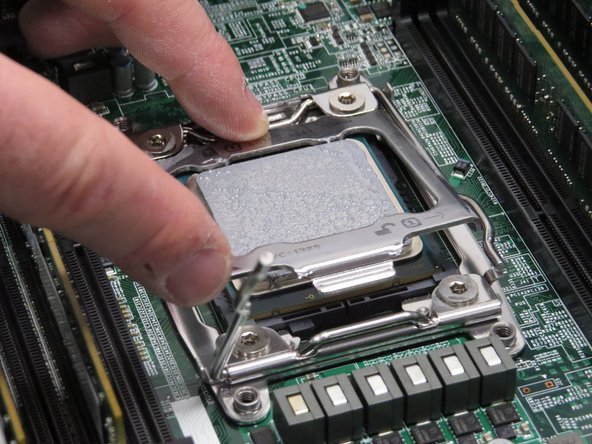

  12. Engage the CPU retention housing, as shown. Engage the CPU retention housing, as shown. Engage the CPU retention housing, as shown.

    • Engage the CPU retention housing, as shown.

    Edit

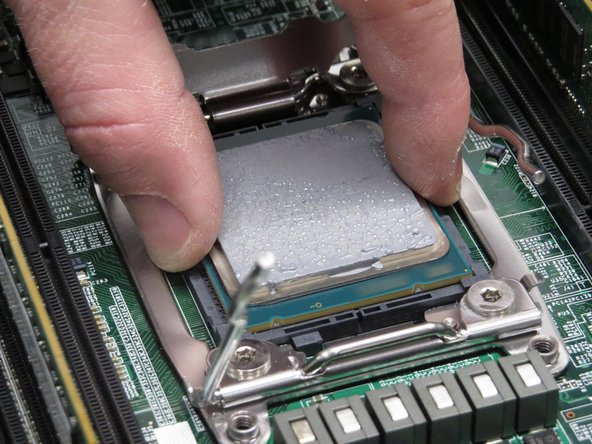

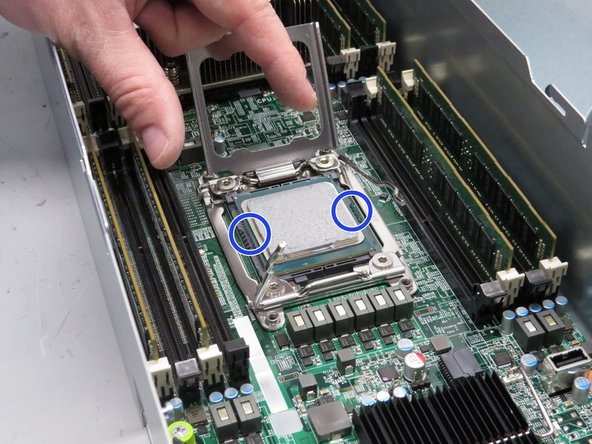

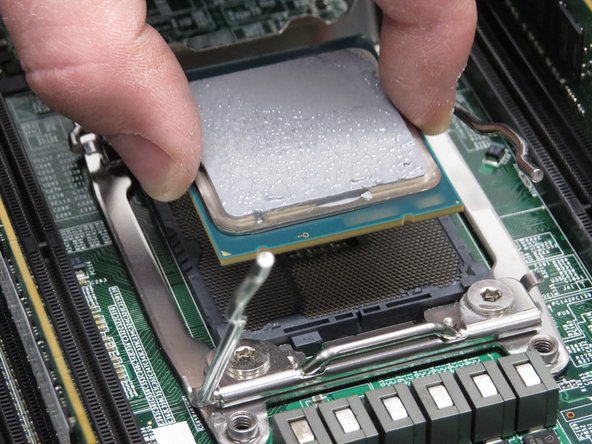

  13. Grab the CPU, as shown. Lift the CPU. Lift the CPU.

    • Grab the CPU, as shown.

    • Lift the CPU.

    Edit

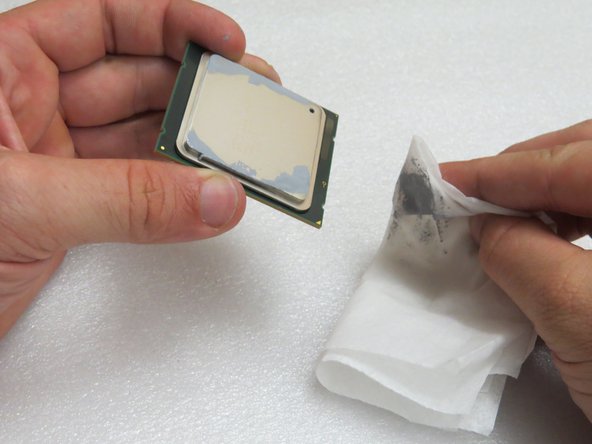

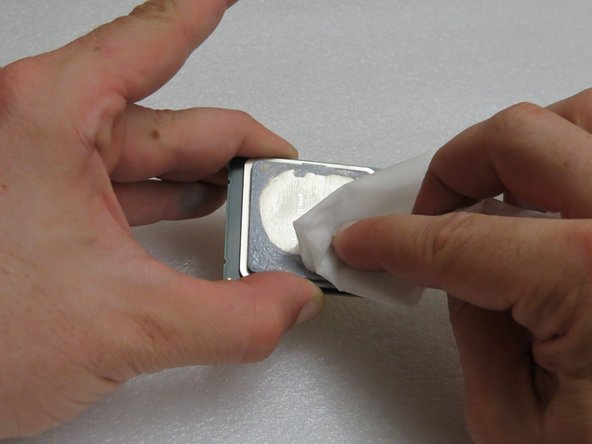

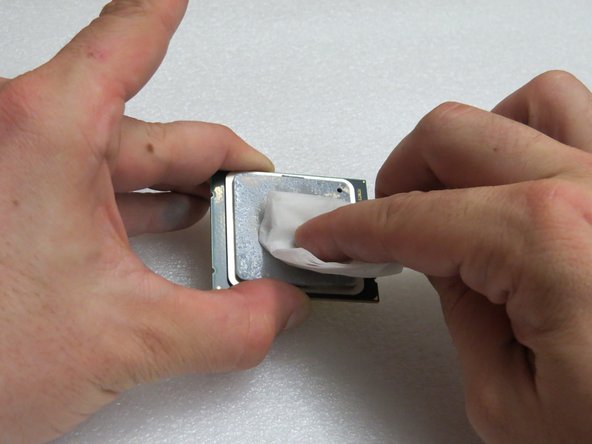

  14. Obtain an isopropyl alcohol cloth. Hold the CPU by its edges. The CPU may have a blue shroud. If so, hold it by the shroud.

    • Obtain an isopropyl alcohol cloth.

    • Hold the CPU by its edges.

    • The CPU may have a blue shroud. If so, hold it by the shroud.

    Edit

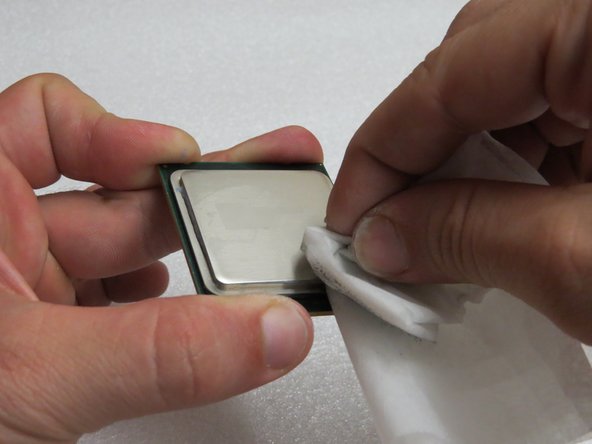

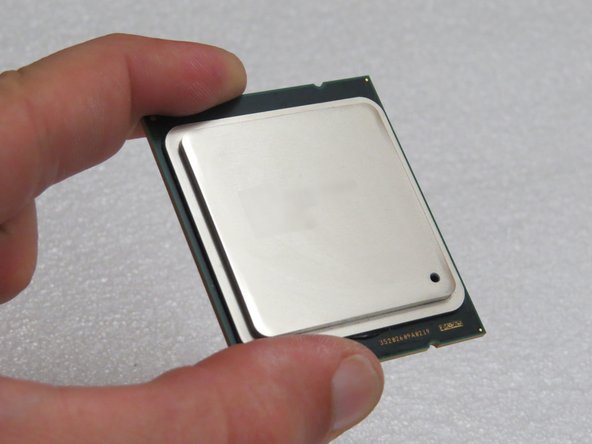

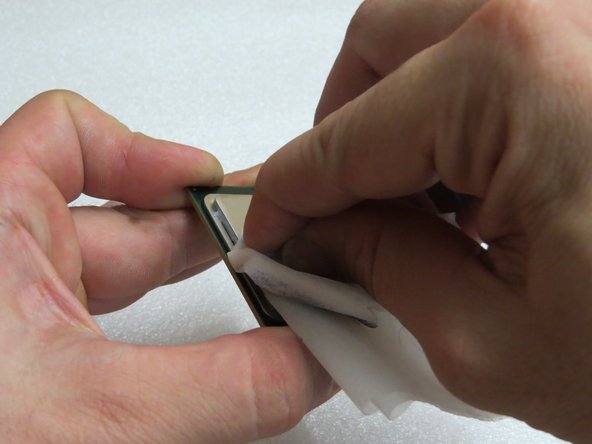

  15. Continue wiping the CPU with the alcohol-soaked cloth to remove the thermal compound. Multiple passes may be needed to completely remove all of the thermal compound. Multiple passes may be needed to completely remove all of the thermal compound.

    • Continue wiping the CPU with the alcohol-soaked cloth to remove the thermal compound.

    • Multiple passes may be needed to completely remove all of the thermal compound.

    Edit

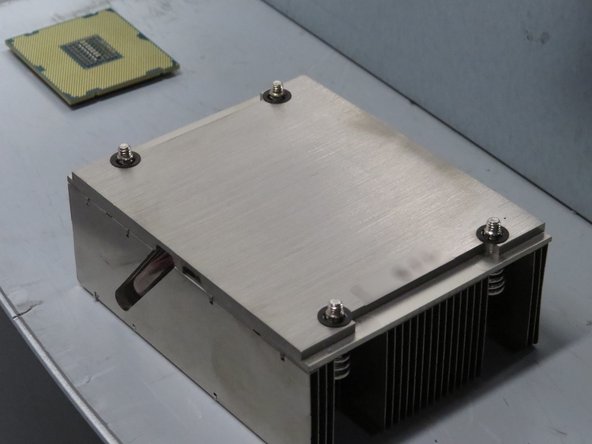

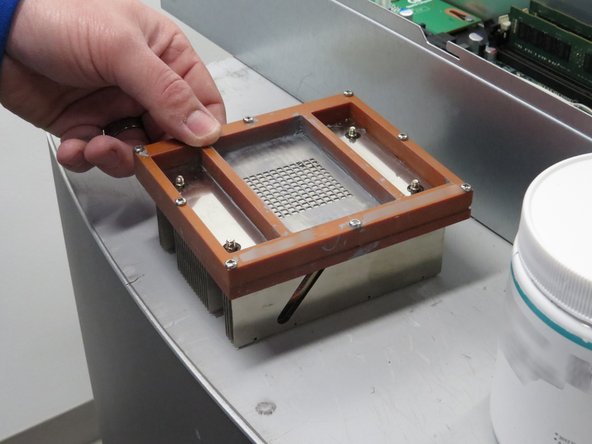

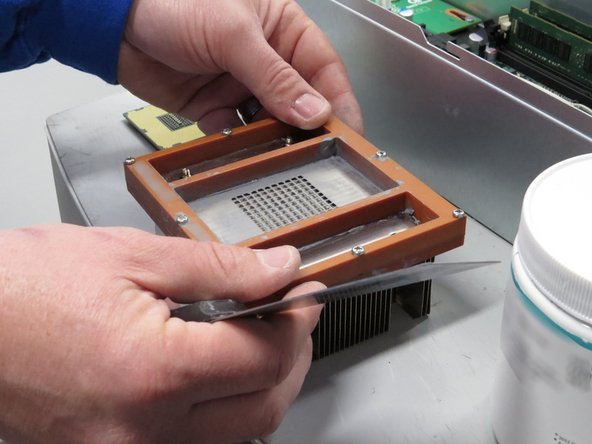

  16. Obtain a heatsink thermal compound stencil. Seat the stencil on the bottom of the heatsink (as shown). Seating the stencil may require some force.

    • Obtain a heatsink thermal compound stencil.

    • Seat the stencil on the bottom of the heatsink (as shown).

    • Seating the stencil may require some force.

    Edit

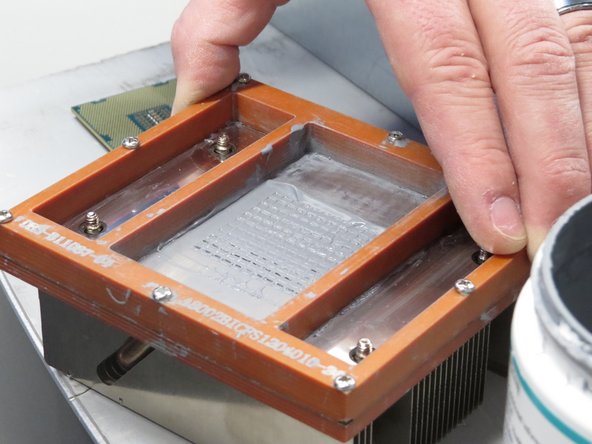

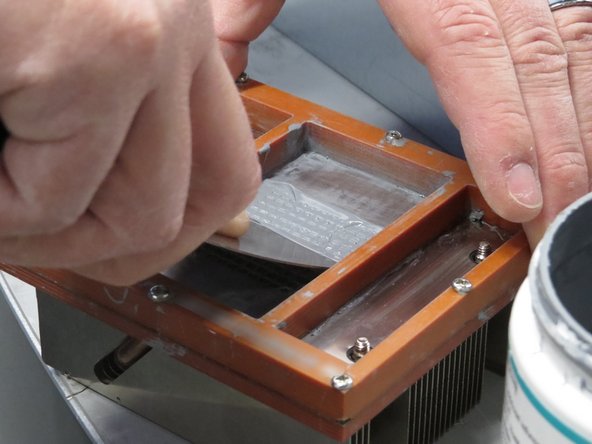

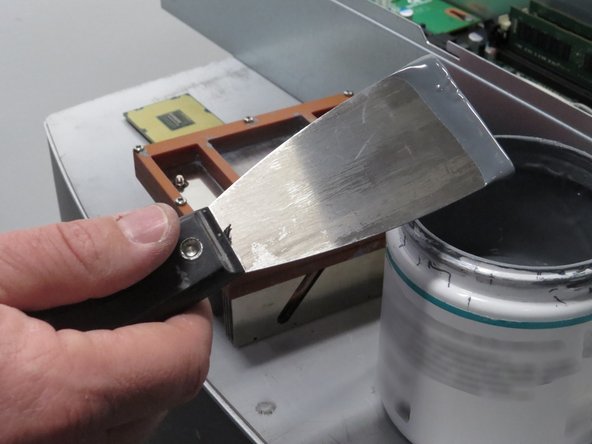

  17. Apply thermal compound, as shown. Apply thermal compound, as shown. Apply thermal compound, as shown.

    • Apply thermal compound, as shown.

    Edit

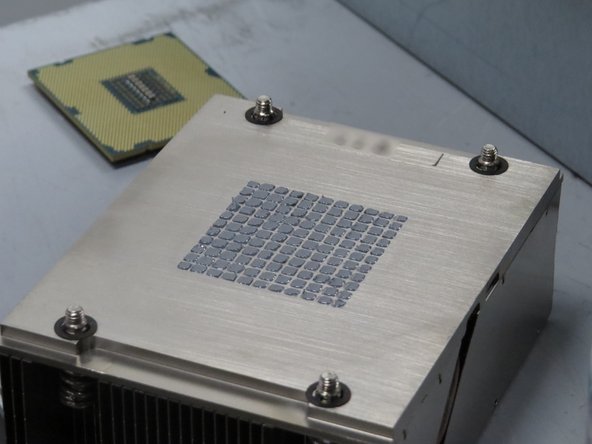

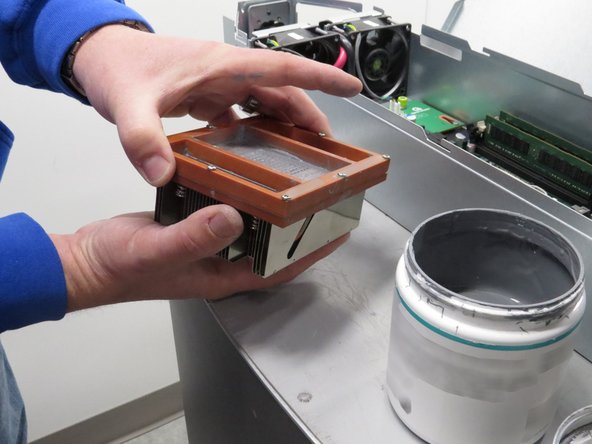

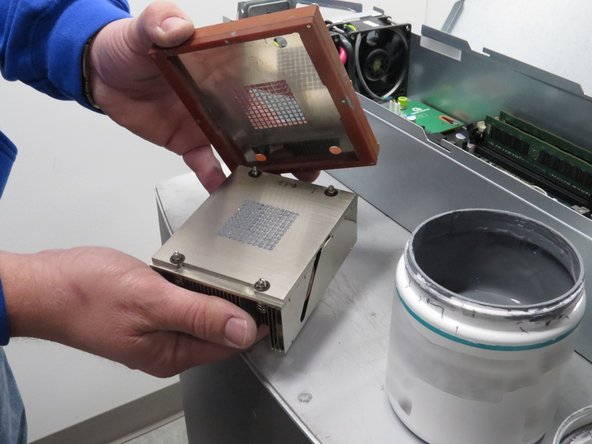

  18. Lift the stencil off of the heatsink. The stencil may require some force to lift. The stencil may require some force to lift.

    • Lift the stencil off of the heatsink.

    • The stencil may require some force to lift.

    Edit

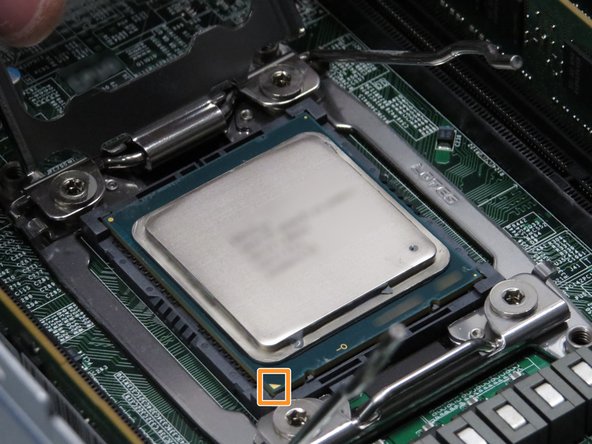

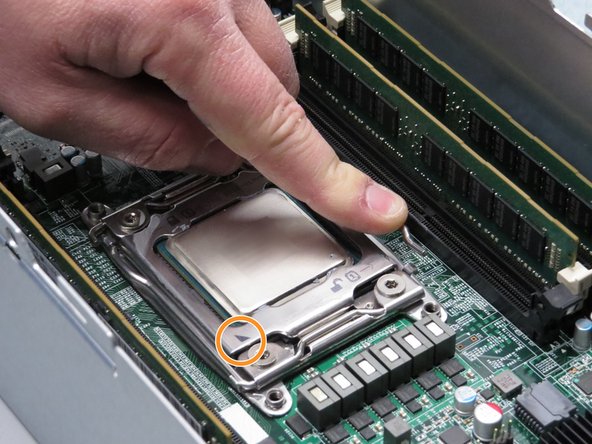

  19. Align the arrow printed on the CPU so that it matches the arrow on the CPU socket gate. Place CPU in socket, and close the socket gate.

    • Align the arrow printed on the CPU so that it matches the arrow on the CPU socket gate.

    • Place CPU in socket, and close the socket gate.

    • Socket gate close process is opposite of removal.

    Edit

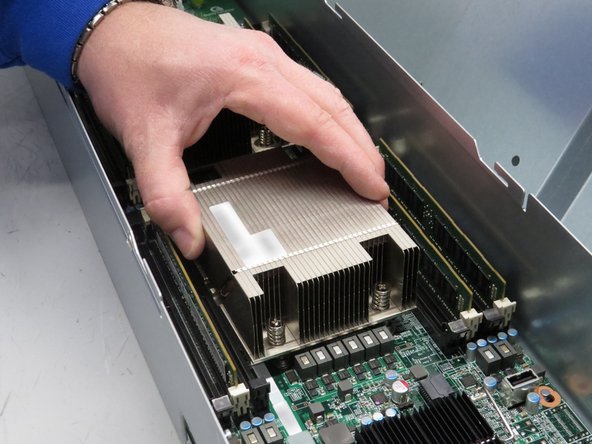

  20. Lower heatsink onto the CPU.

    • Lower heatsink onto the CPU.

    • Visually align the heatsink while lowering.

    Edit

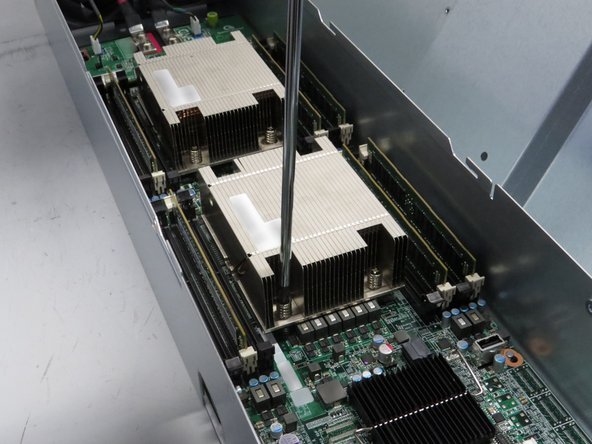

  21. Tighten (4) screws. This process is opposite of removing the heatsink.

    • Tighten (4) screws.

    • This process is opposite of removing the heatsink.

    • It is necessary to apply pressure to the heatsink while tightening (4) screws.

    • Further installation process is opposite of removal.

    Edit

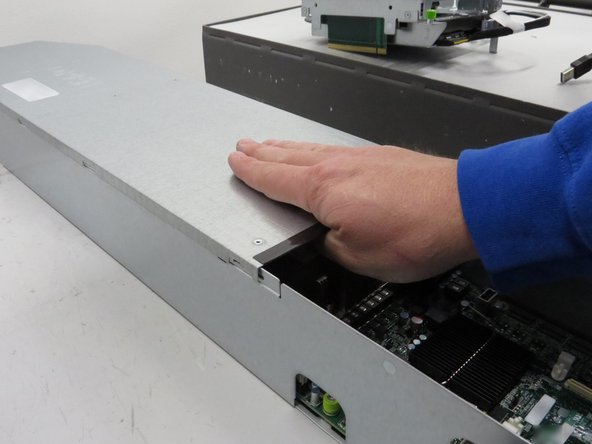

  22. Install the lid on the server.

    • Install the lid on the server.

    • The installation process is opposite of the removal process.

    Edit

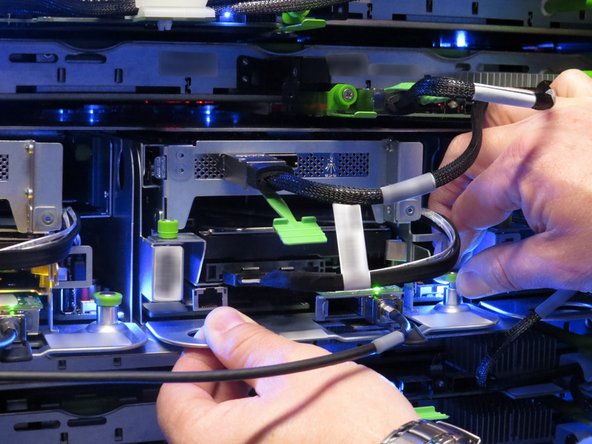

  23. Slide the server back into the rack.

    • Slide the server back into the rack.

    • Lift the green retention pin to clear the chassis.

    • Connect all previously disconnected peripheral cables.

    • Slide the server until the green retention pin snaps downwards, locking the server.

    • Press the power button.

    Edit
