DIMM Replacement

Written By: Dozuki System
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

12

Time Required

Suggest a time??

Sections

1

Flags

1

Unnecessary Steps

Unnecessary Steps

This guide contains steps that are not necessary.

    • Perform a warm shut down on the server. Run:

    • ssh -l root <hostname> shutdown -h now

    Edit

  2. Disconnect the 10G network interface cable. Pull the 10G network interface cable pull-tab. Pull the 10G network interface cable pull-tab.

    • Disconnect the 10G network interface cable.

    • Pull the 10G network interface cable pull-tab.

    Edit

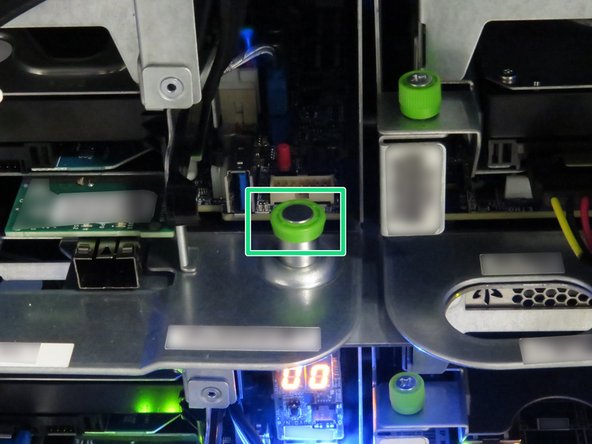

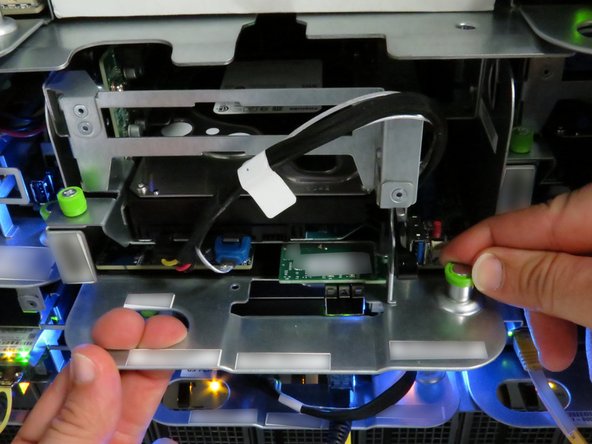

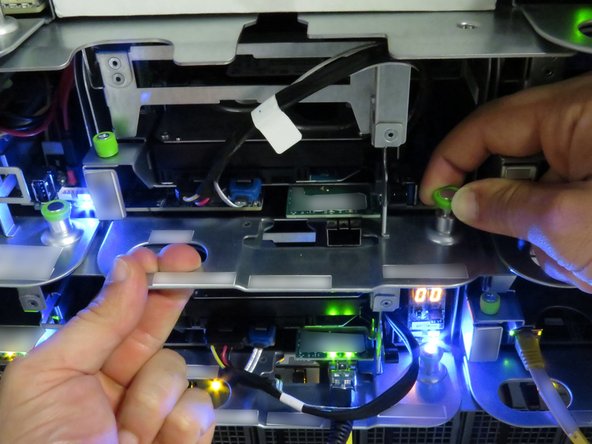

  3. Pull the green retention plunger upwards. Pull the server away from the rack, as shown. Pull the server until about (2) inches of the black lid is exposed.

    • Pull the green retention plunger upwards.

    • Pull the server away from the rack, as shown.

    • Pull the server until about (2) inches of the black lid is exposed.

    Edit

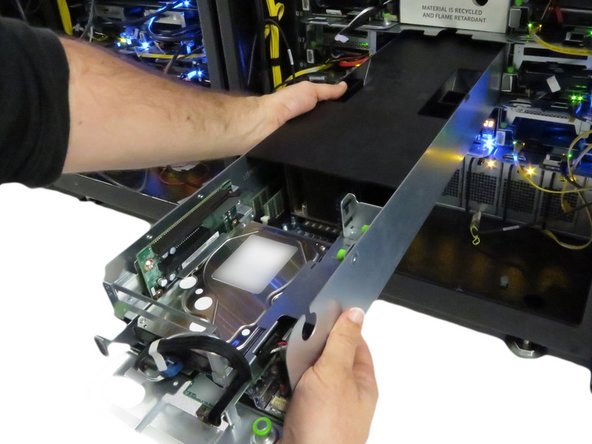

  4. Move the server on the crash cart for transportation or out of rack repairs.

    • Move the server on the crash cart for transportation or out of rack repairs.

    Edit

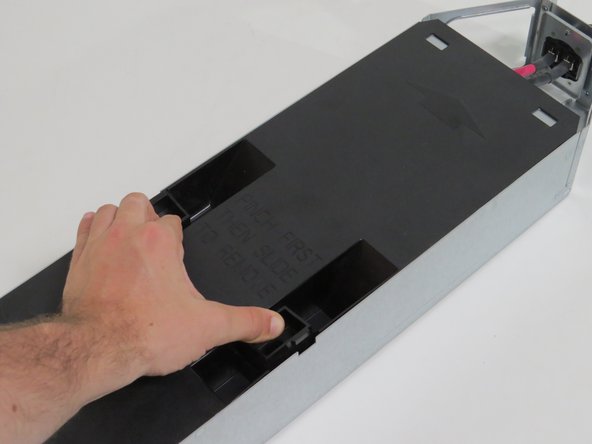

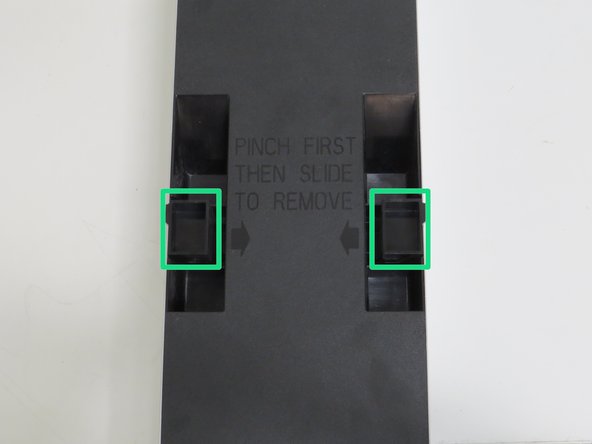

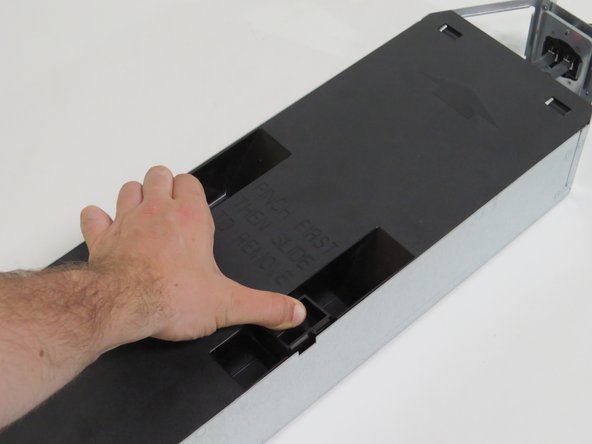

  5. Squeeze (2) lid retention handles towards the center of the node. Slide the lid towards the rear of the server node. Lift and remove the lid.

    • Squeeze (2) lid retention handles towards the center of the node.

    • Slide the lid towards the rear of the server node.

    • Lift and remove the lid.

    Edit

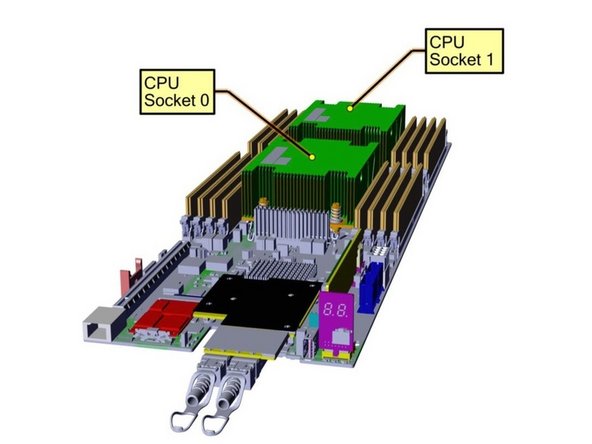

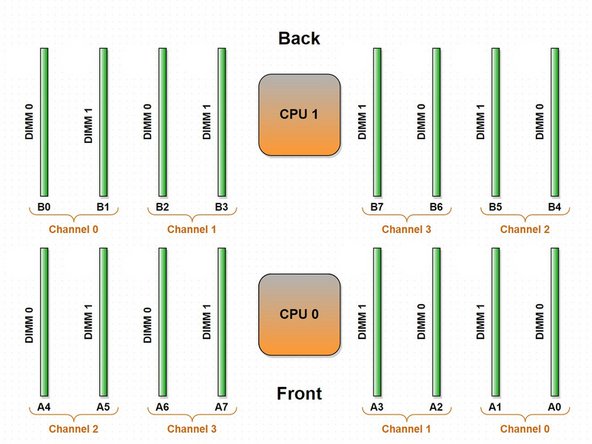

  6. CPU socket and DIMM location, as shown. Click to enlarge.

    • CPU socket and DIMM location, as shown.

    • Click to enlarge.

    Edit

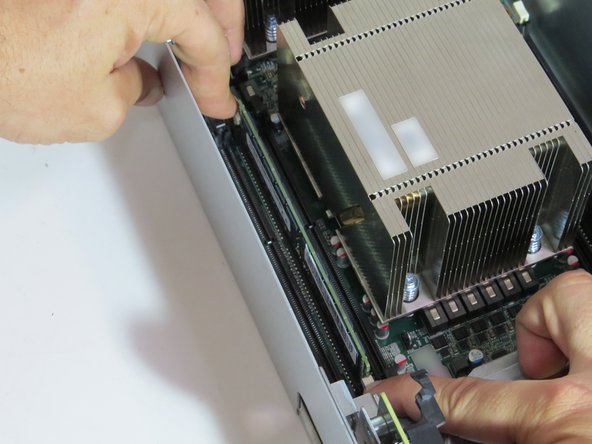

  7. Press the (2) retention tabs on the DIMM slot that seats the failed DIMM. Lift the DIMM from its socket.

    • Press the (2) retention tabs on the DIMM slot that seats the failed DIMM.

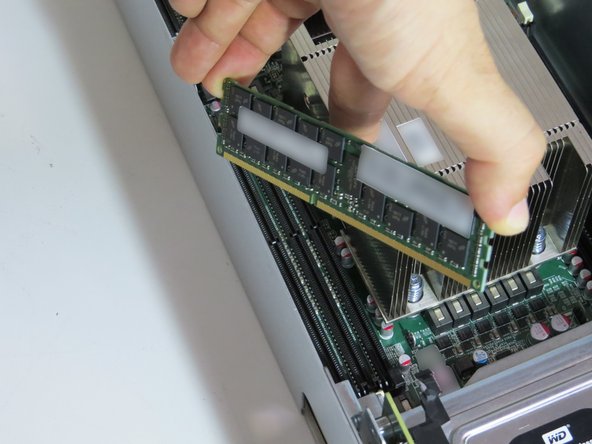

    • Lift the DIMM from its socket.

    Edit

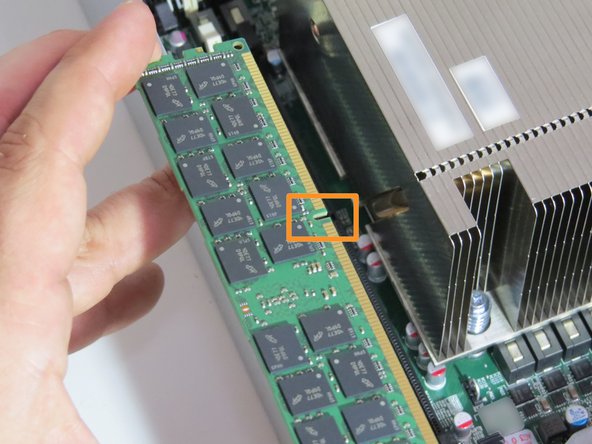

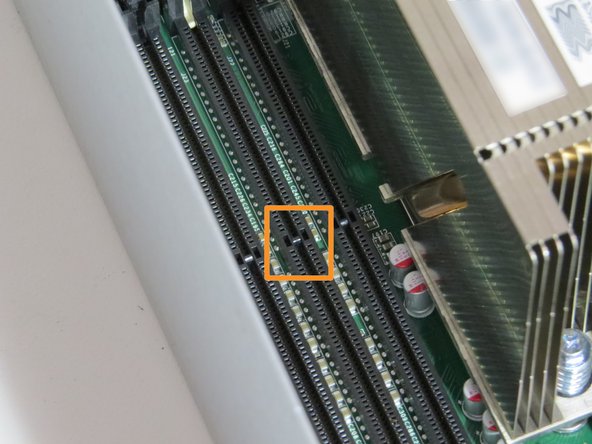

  8. Align the DIMM and slot key. Seat the DIMM in its respective, original socket.

    • Align the DIMM and slot key.

    • Seat the DIMM in its respective, original socket.

    Edit

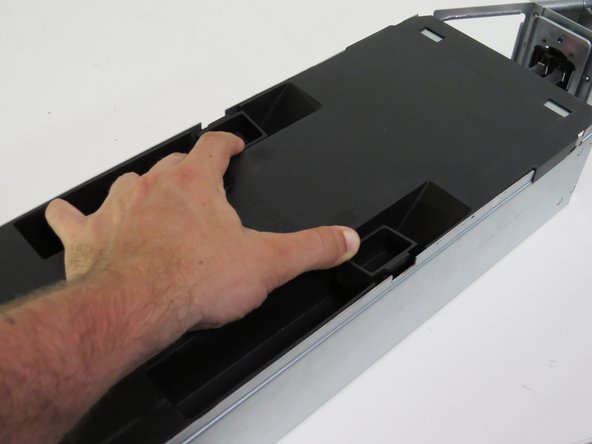

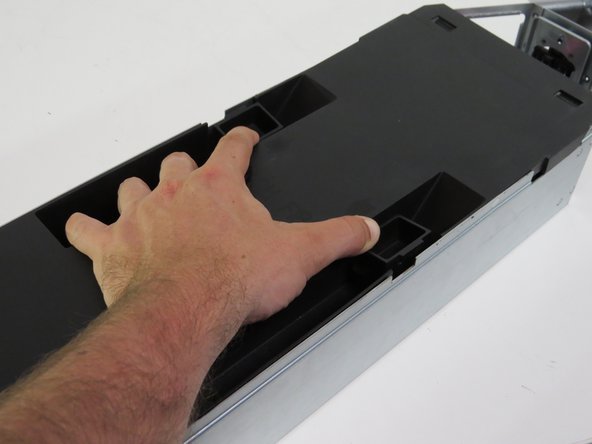

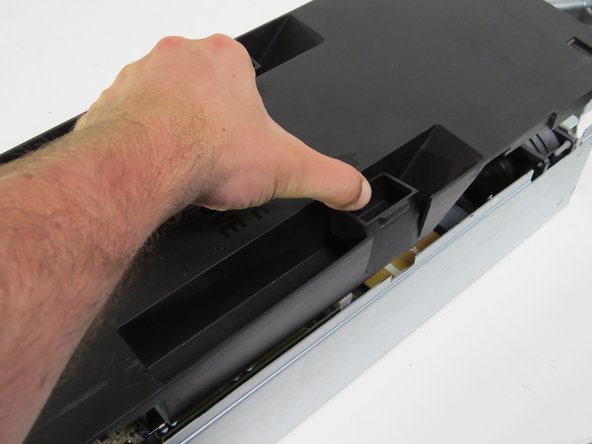

  9. Install the lid on the server, as shown. Install the lid on the server, as shown. Install the lid on the server, as shown.

    • Install the lid on the server, as shown.

    Edit

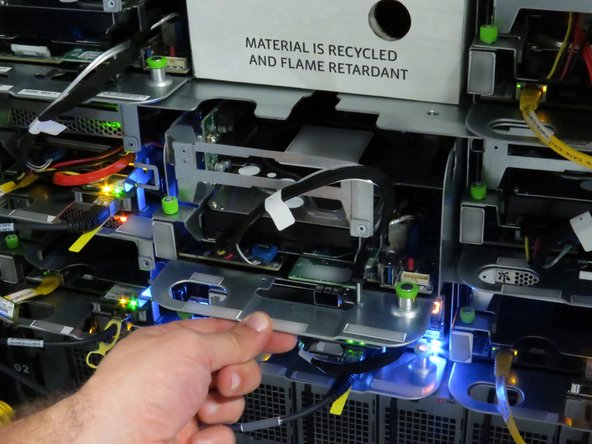

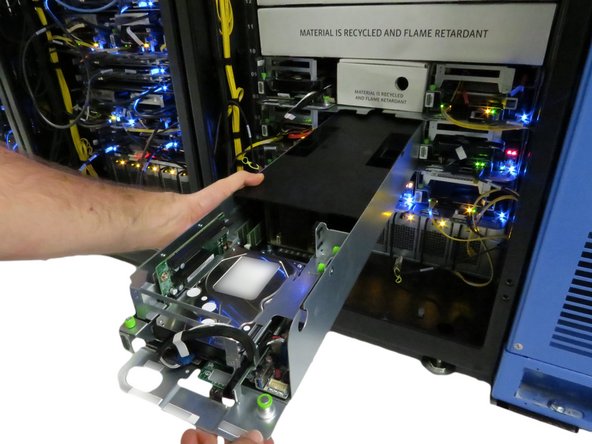

  10. Slide the server back into the rack. Continue pushing the server until the server chassis pin secures the server.

    • Slide the server back into the rack.

    • Continue pushing the server until the server chassis pin secures the server.

    • A distinctive 'click' will be felt when the pin secures the server in the rack.

    Edit

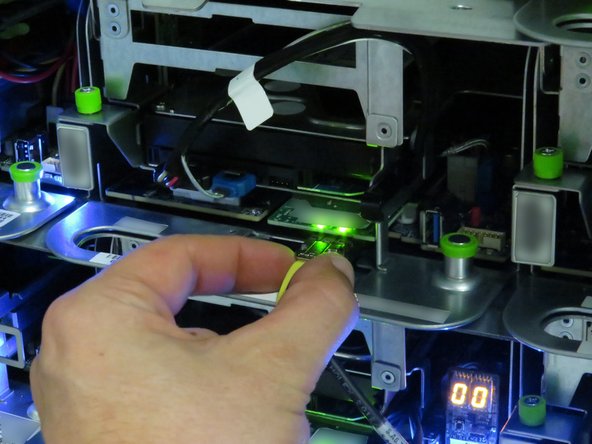

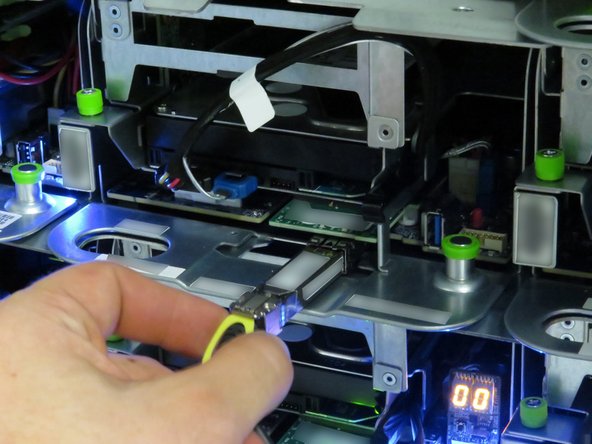

  11. Connect the 10G network interface cable. Connect the 10G network interface cable.

    • Connect the 10G network interface cable.

    Edit

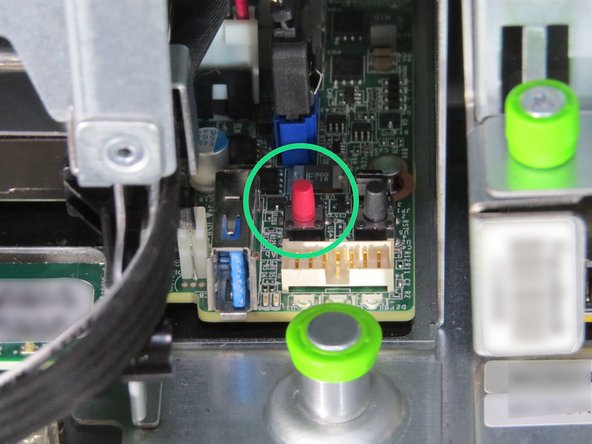

  12. Press the power button.

    • Press the power button.

    Edit
