DIMM Replacement

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

4

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

Introduction

This guide demonstrates how to replace a DIMM iin an Open Compute Server v2. == Acronyms and Terms == * DIMM - Dual In-line Memory Module

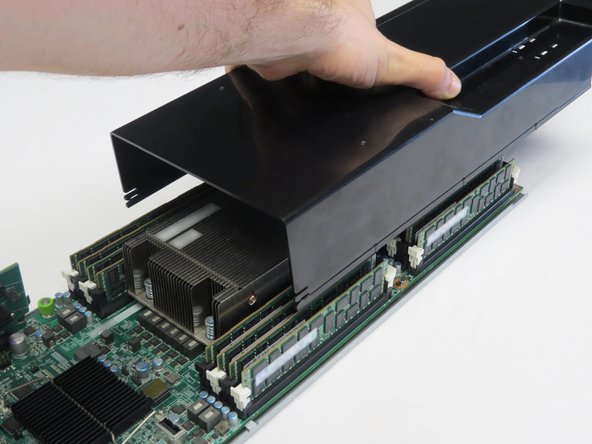

  1. Remove the lid from the server node. Engage the lid with both hands, as shown. Push the lid towards the rear of the server.

    • Remove the lid from the server node.

    • Engage the lid with both hands, as shown.

    • Push the lid towards the rear of the server.

    • Lift the lid.

    Edit

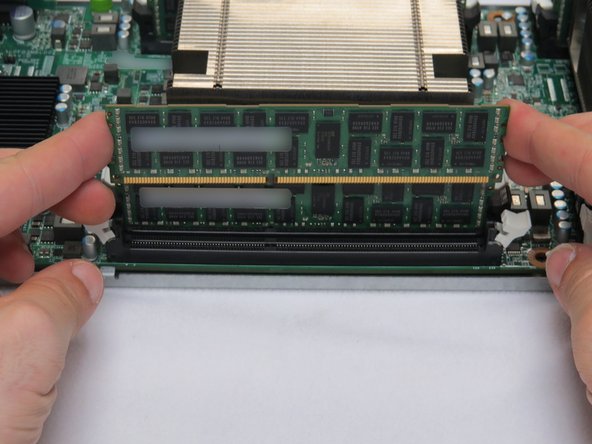

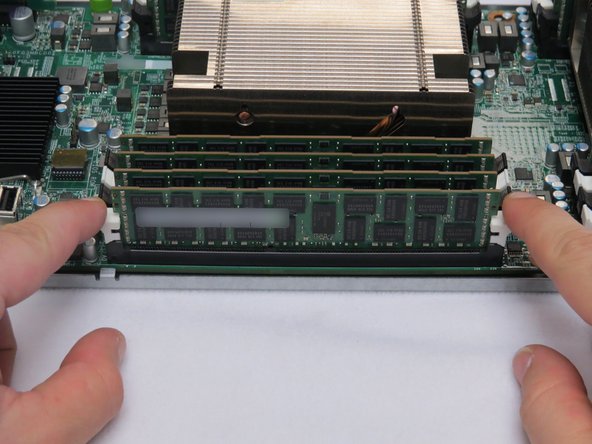

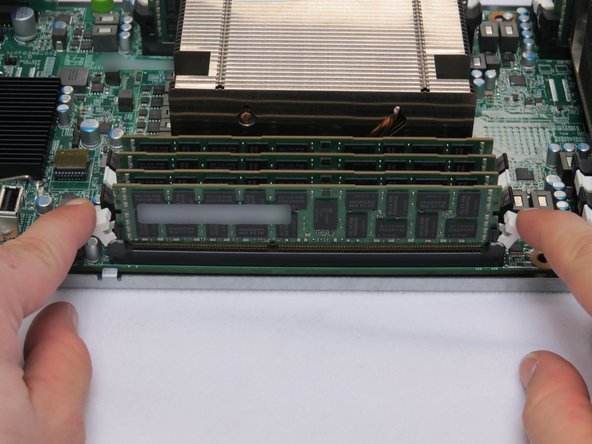

  2. Press down on the (2) retention tabs. Lift the DIMM from the socket. Lift the DIMM from the socket.

    • Press down on the (2) retention tabs.

    • Lift the DIMM from the socket.

    Edit

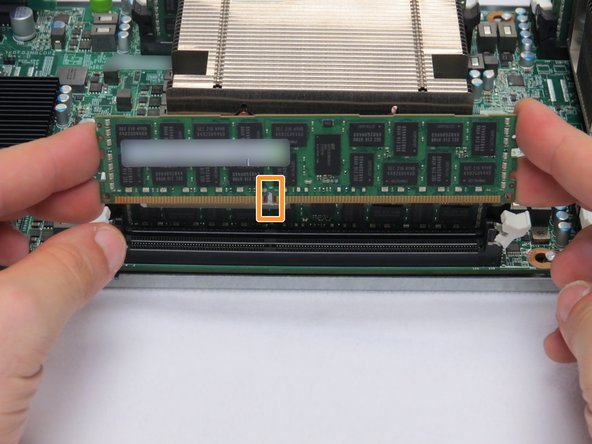

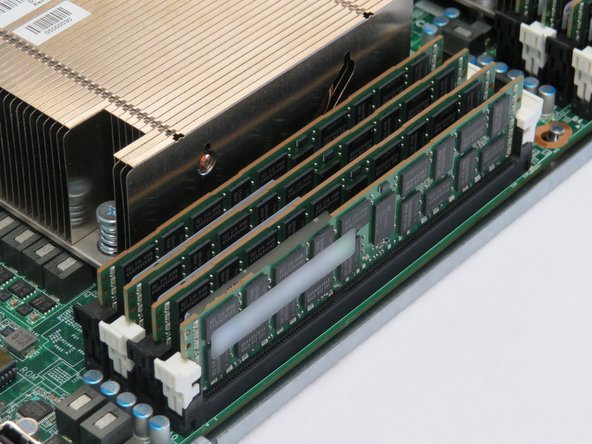

  3. Align DIMM gap with socket. Press DIMM into socket.

    • Align DIMM gap with socket.

    • Press DIMM into socket.

    Edit

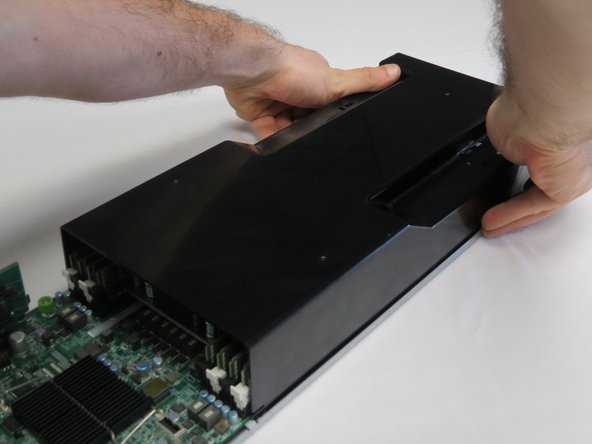

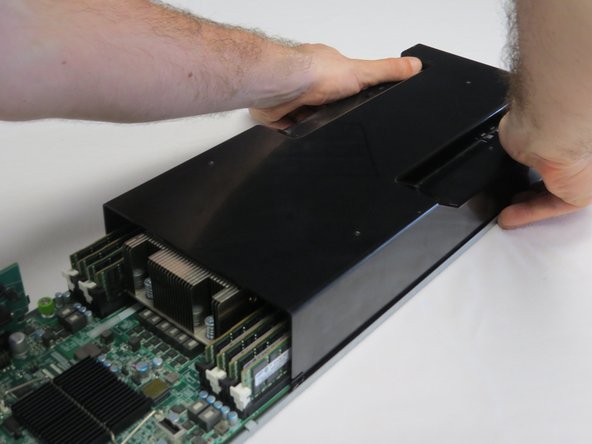

  4. Install the lid back on the server. Install the lid back on the server.

    • Install the lid back on the server.

    Edit
