DIMM Replacement

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

5

Time Required

00:06:00

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

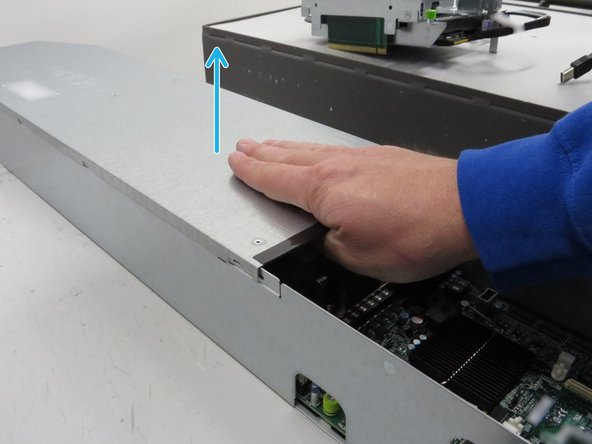

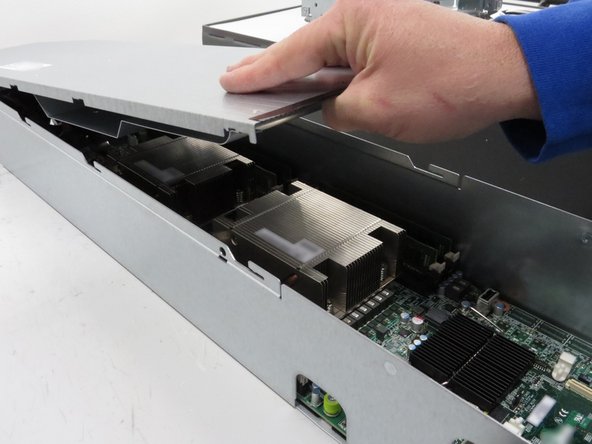

  1. Engage the server lid, as shown. Push the lid towards the rear of the server. Lift the cover.

    • Engage the server lid, as shown.

    • Push the lid towards the rear of the server.

    • Lift the cover.

    Edit

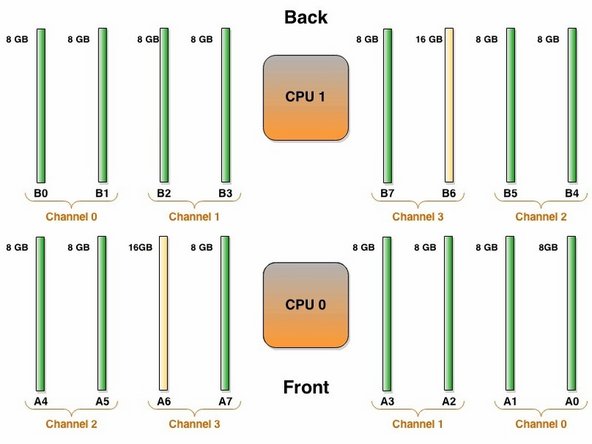

  2. This image displays the DIMM slots and CPU.

    • This image displays the DIMM slots and CPU.

    • The green column displays the populated DIMM slots.

    • The yellow column displays the un-populated DIMM slots.

    Edit

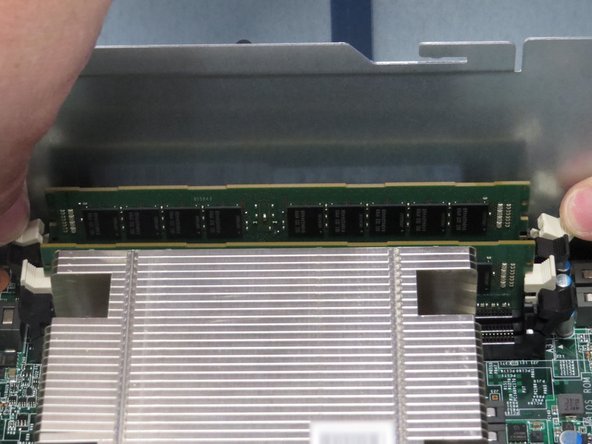

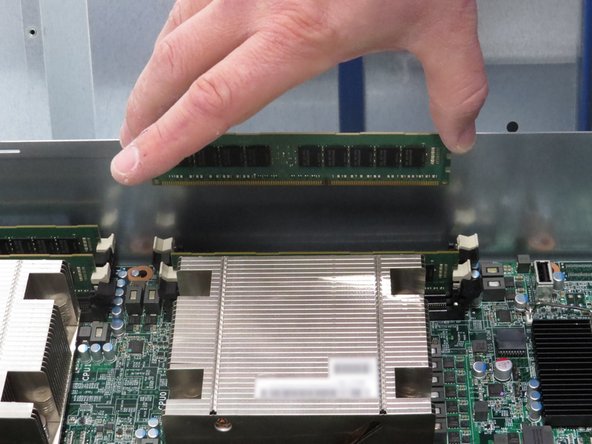

  3. Push the (2) DIMM retention tabs. Lift DIMM from its channel, as shown. Lift DIMM from its channel, as shown.

    • Push the (2) DIMM retention tabs.

    • Lift DIMM from its channel, as shown.

    Edit

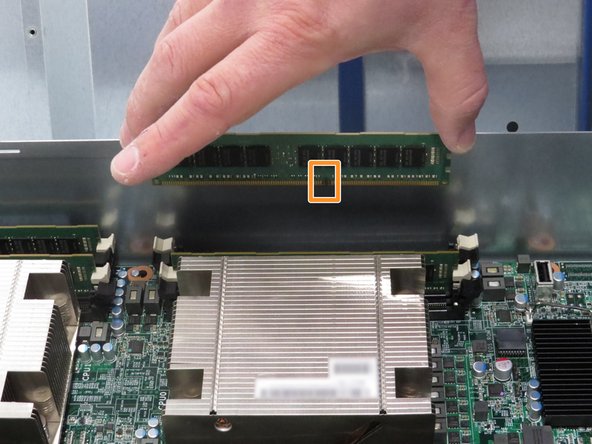

  4. Install a new DIMM into the vacant DIMM socket.

    • Install a new DIMM into the vacant DIMM socket.

    • Be aware of the DIMM's pin-out configuration and the DIMM socket key. Inserting the DIMM backwards may damage the DIMM.

    Edit

  5. Install the lid on the server.

    • Install the lid on the server.

    • The installation process is opposite of the removal process.

    Edit
Conclusion

This work is licensed under a Creative Commons Attribution 4.0 International License.
