Drive Plane Board Replacement

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

9

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

Tools

Parts

No parts specified.

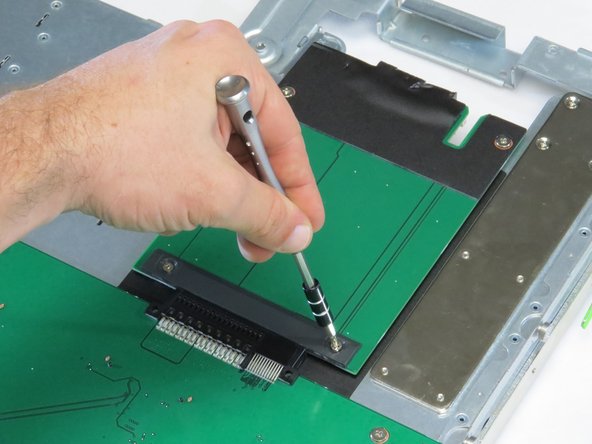

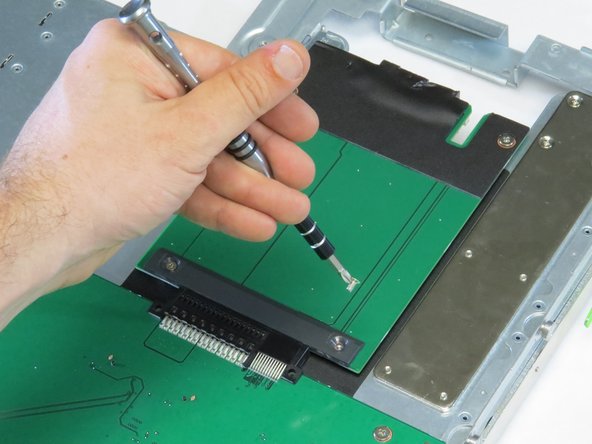

  1. Unscrew four Phillips #1 screws. Unscrew four Phillips #1 screws. Unscrew four Phillips #1 screws.

    • Unscrew four Phillips #1 screws.

    Edit

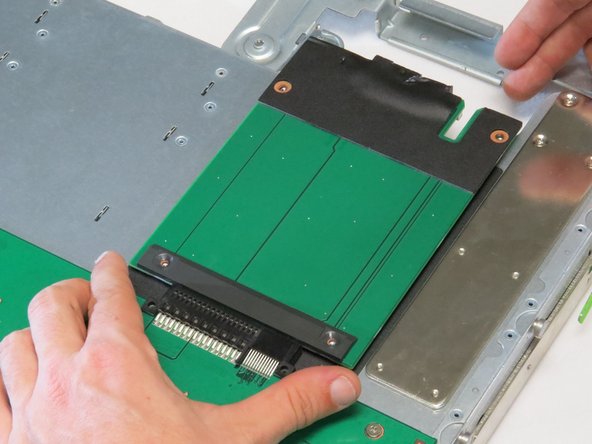

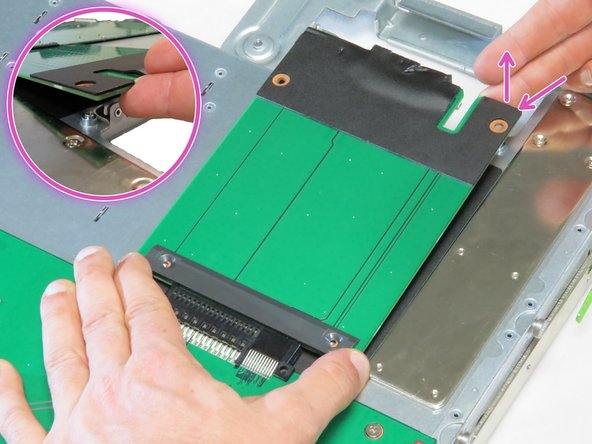

  2. Engage the power transition board, as shown. Tilt the power transition board at a slight angle upwards, as shown. Disconnect the power transition board.

    • Engage the power transition board, as shown.

    • Tilt the power transition board at a slight angle upwards, as shown.

    • Disconnect the power transition board.

    Edit

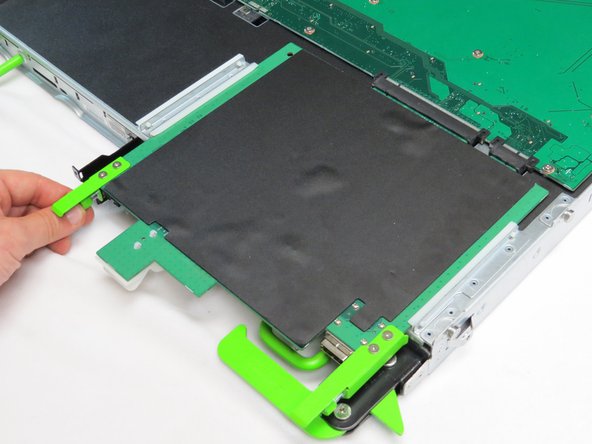

  3. Loosen one thumbscrew. Loosen one thumbscrew. Loosen one thumbscrew.

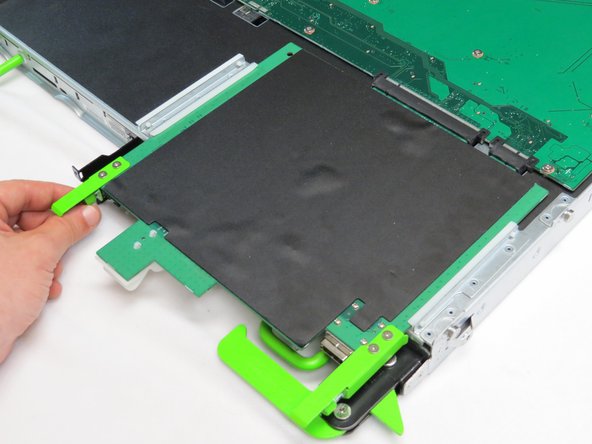

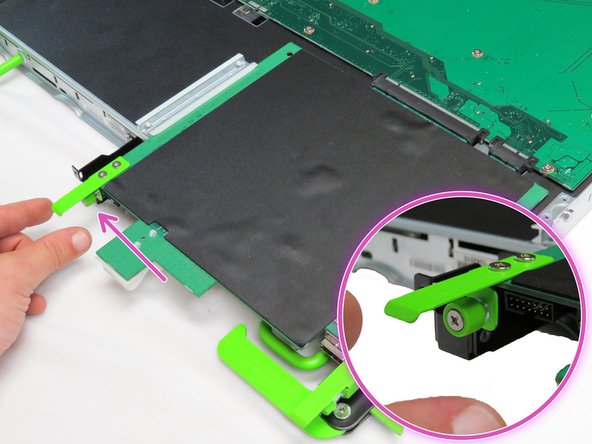

    • Loosen one thumbscrew.

    Edit

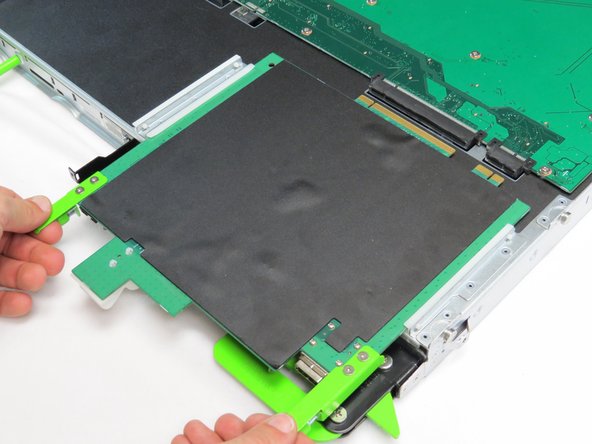

  4. Pull the two tabs located on the front end of the expander board, as shown. Pull the two tabs located on the front end of the expander board, as shown. Pull the two tabs located on the front end of the expander board, as shown.

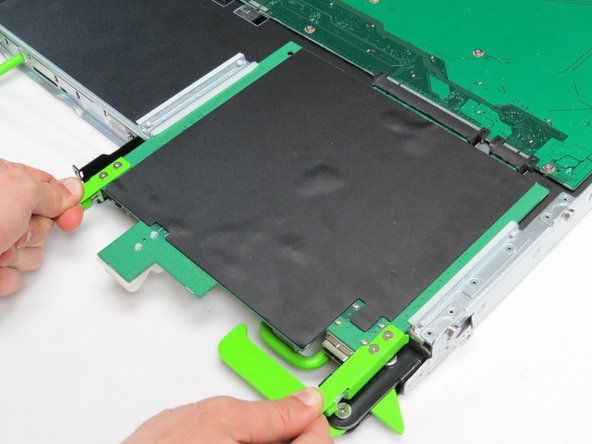

    • Pull the two tabs located on the front end of the expander board, as shown.

    Edit

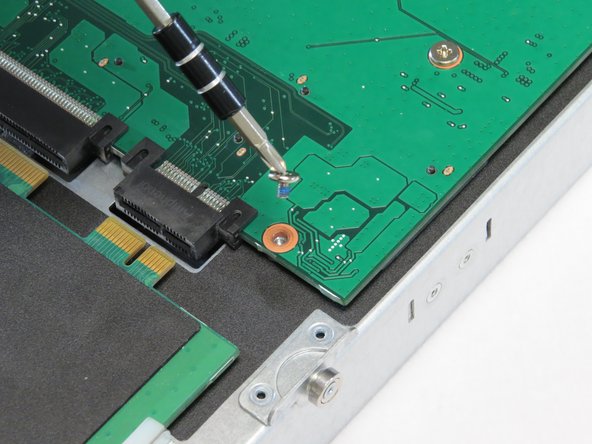

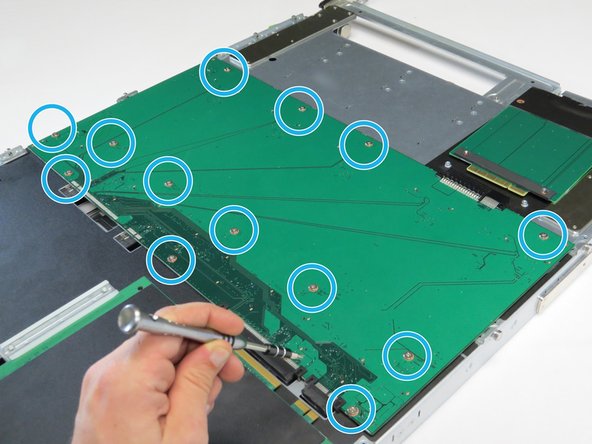

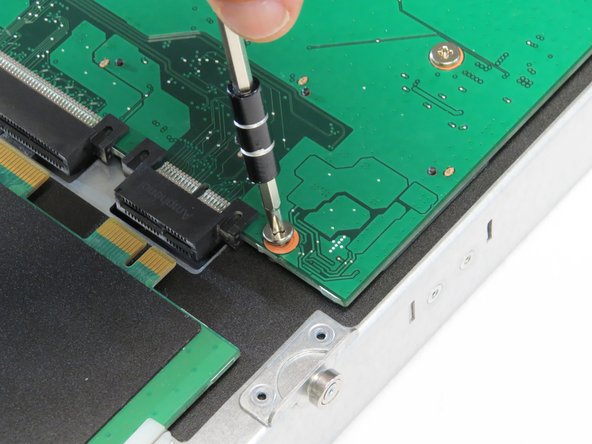

  5. Unscrew (13) Phillips #1 screws. Unscrew (13) Phillips #1 screws. Unscrew (13) Phillips #1 screws.

    • Unscrew (13) Phillips #1 screws.

    Edit

  6. Engage the drive plane board, as shown. Remove the drive plane board from the storage chassis. Remove the drive plane board from the storage chassis.

    • Engage the drive plane board, as shown.

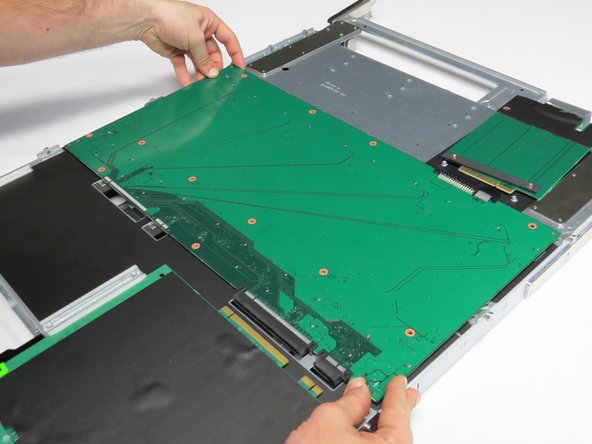

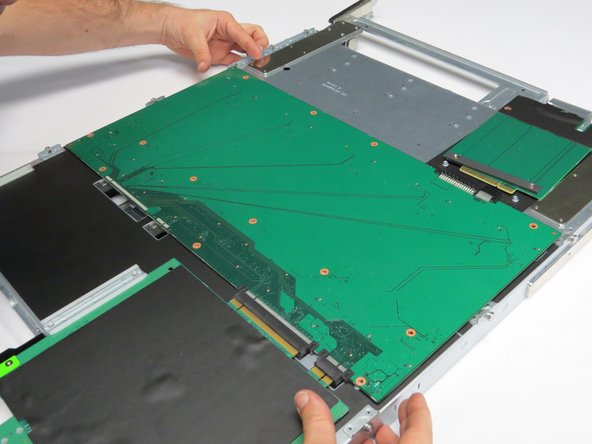

    • Remove the drive plane board from the storage chassis.

    Edit

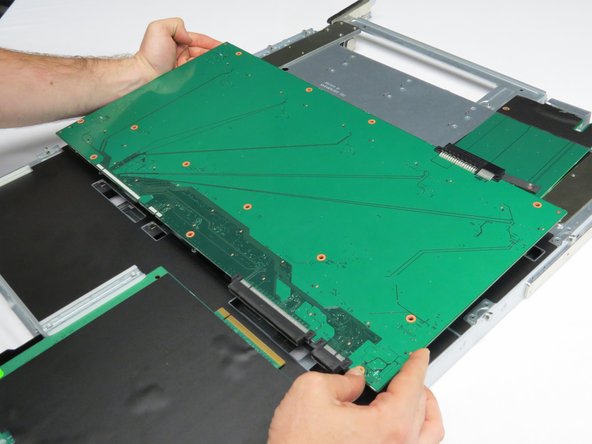

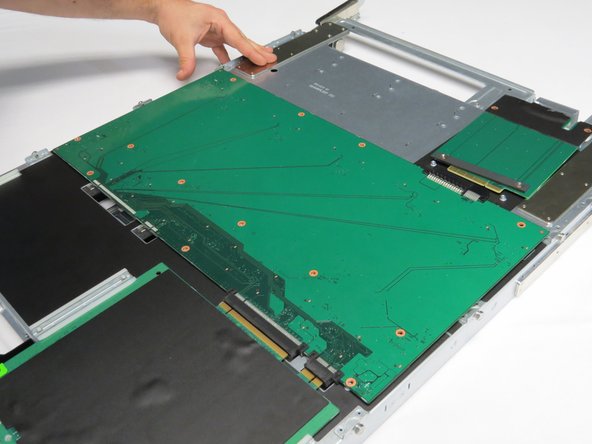

  7. Place a new drive plane board into the storage chassis. Place a new drive plane board into the storage chassis. Place a new drive plane board into the storage chassis.

    • Place a new drive plane board into the storage chassis.

    Edit

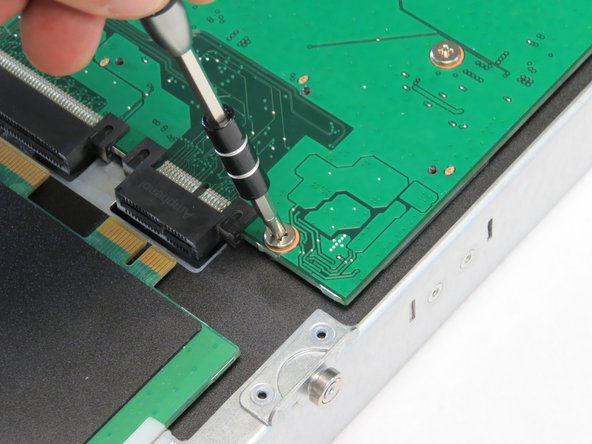

  8. Install the thirteen Phillips #1 screws that were previously removed. Install the thirteen Phillips #1 screws that were previously removed. Install the thirteen Phillips #1 screws that were previously removed.

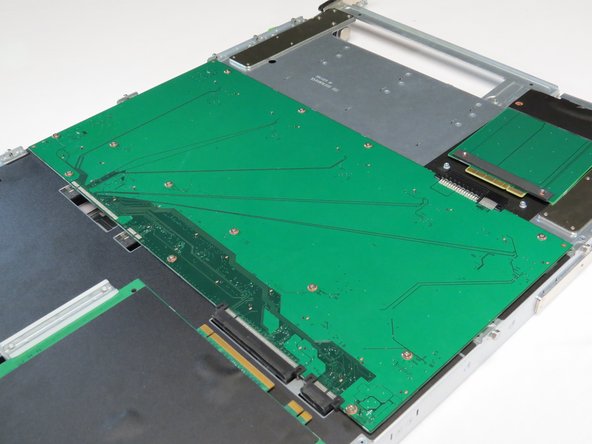

    • Install the thirteen Phillips #1 screws that were previously removed.

    Edit

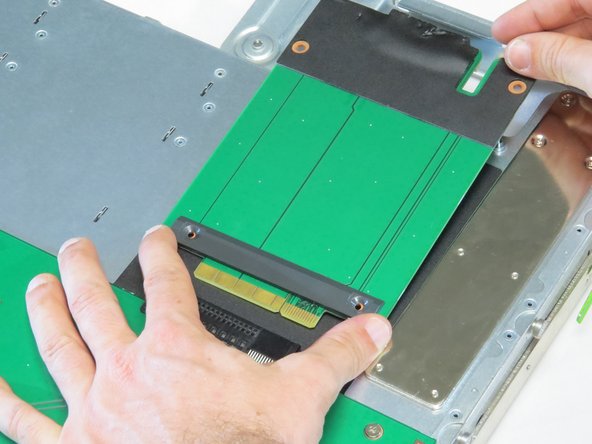

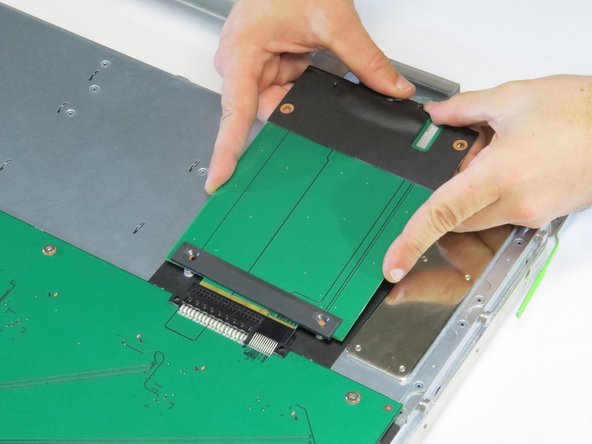

  9. Align the new power transition board with its connector. Push the board into its connector. Push the board into its connector.

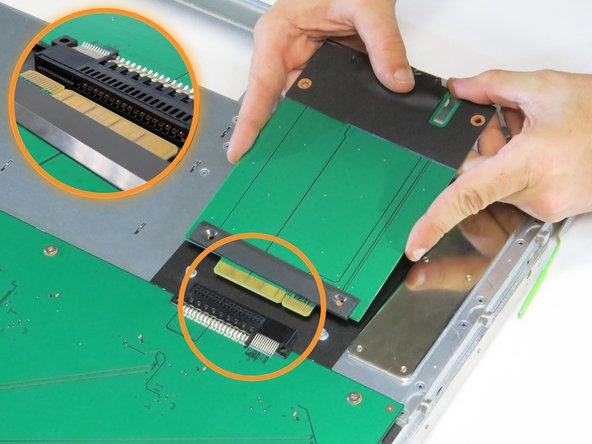

    • Align the new power transition board with its connector.

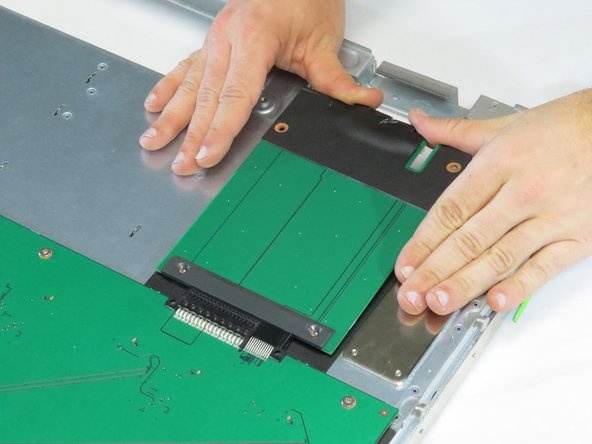

    • Push the board into its connector.

    Edit
