Introduction

Overview

This guide demonstrates how to replace a fan in the Wedge switch.

  1. Identify the fan that requires service by using the image provided: System Fan 1: Left-Most Fan

    • Identify the fan that requires service by using the image provided:

    • System Fan 1: Left-Most Fan

    • System Fan 2: Between fan 1 and fan 3

    • System Fan 3: Adjacent to Rear-Management System Ports

    • System Fan 4: Right-Most Fan

    Edit

  2. Loosen the thumbscrew on the Wedge fan.

    • Loosen the thumbscrew on the Wedge fan.

    • The fan thumbscrew is located on the top-right of the fan, as shown.

    Edit

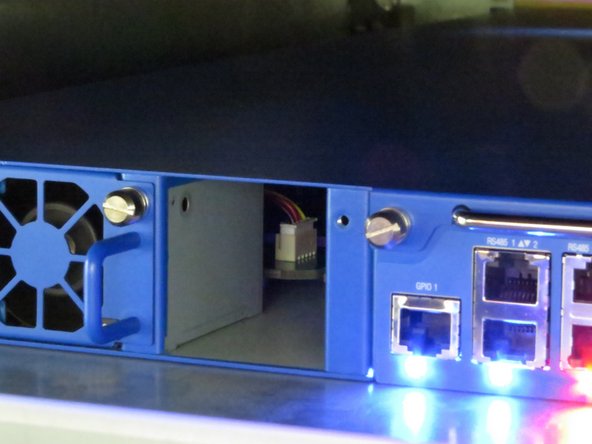

  3. Grasp the fan handle. Pull the fan from the Wedge assembly.

    • Grasp the fan handle.

    • Pull the fan from the Wedge assembly.

    Edit

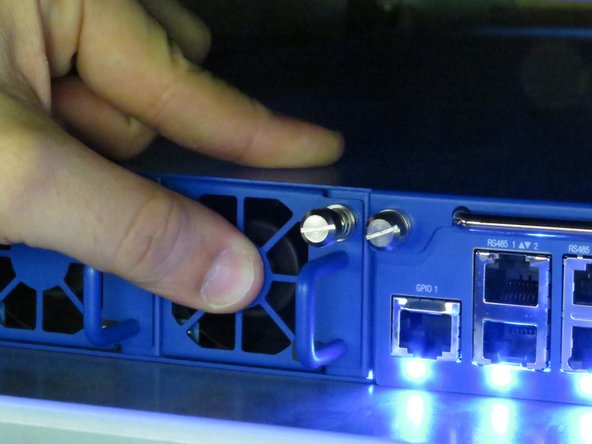

  4. Push the fan into the vacant fan slot, as shown. A distinctive 'click' will be heard when the fan has properly connected to the system.

    • Push the fan into the vacant fan slot, as shown.

    • A distinctive 'click' will be heard when the fan has properly connected to the system.

    Edit

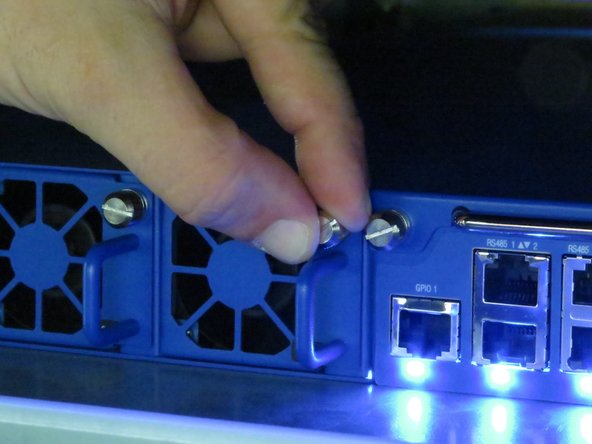

  5. Tighten the thumbscrew.

    • Tighten the thumbscrew.

    Edit
