Fan Replacement

Written By: Dozuki System
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

15

Time Required

Suggest a time??

Sections

1

Flags

1

Unnecessary Steps

Unnecessary Steps

This guide contains steps that are not necessary.

    • Perform a warm shut down on the server. Run:

    • ssh -l root <hostname> shutdown -h now

    Edit

  2. Disconnect the 10G network interface cable. Pull the 10G network interface cable pull-tab. Pull the 10G network interface cable pull-tab.

    • Disconnect the 10G network interface cable.

    • Pull the 10G network interface cable pull-tab.

    Edit

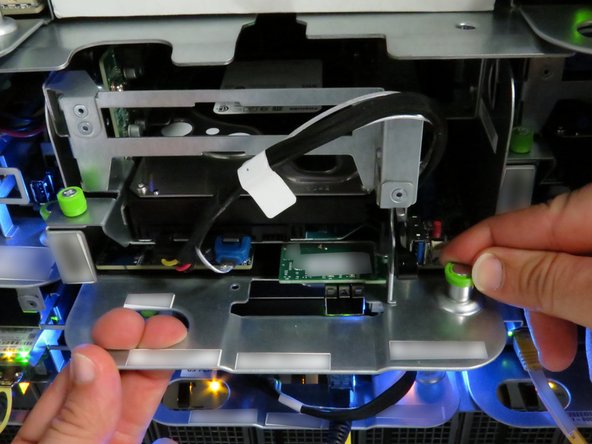

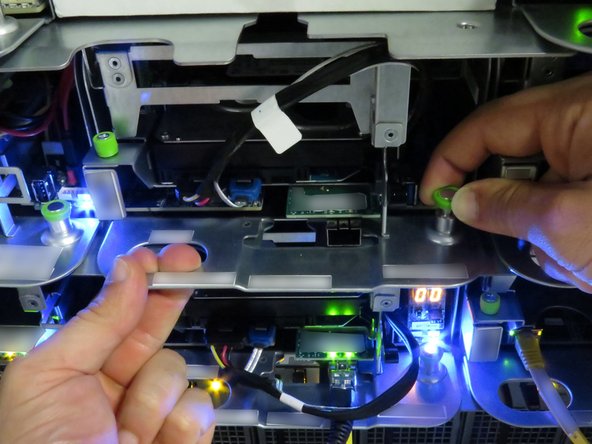

  3. Pull the green retention plunger upwards. Pull the server away from the rack, as shown. Pull the server until about (2) inches of the black lid is exposed.

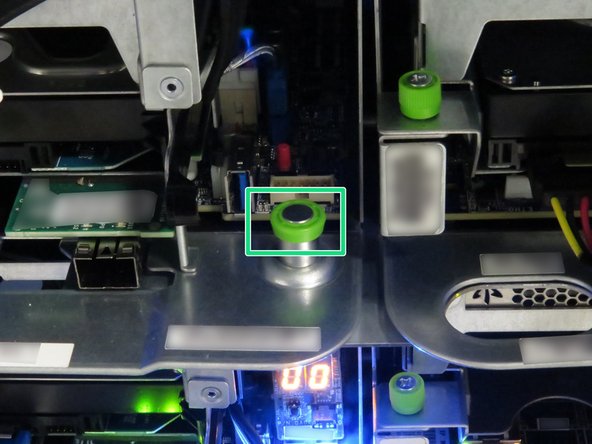

    • Pull the green retention plunger upwards.

    • Pull the server away from the rack, as shown.

    • Pull the server until about (2) inches of the black lid is exposed.

    Edit

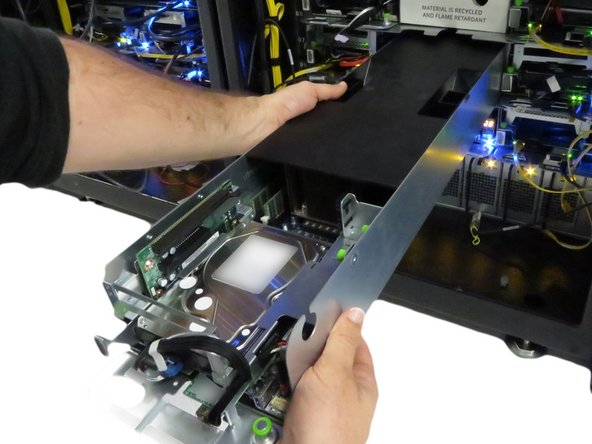

  4. Move the server on the crash cart for transportation or out of rack repairs.

    • Move the server on the crash cart for transportation or out of rack repairs.

    Edit

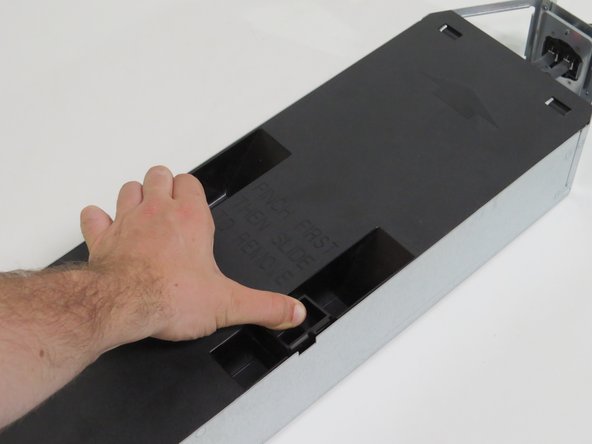

  5. Squeeze (2) lid retention handles towards the center of the node. Slide the lid towards the rear of the server node. Lift and remove the lid.

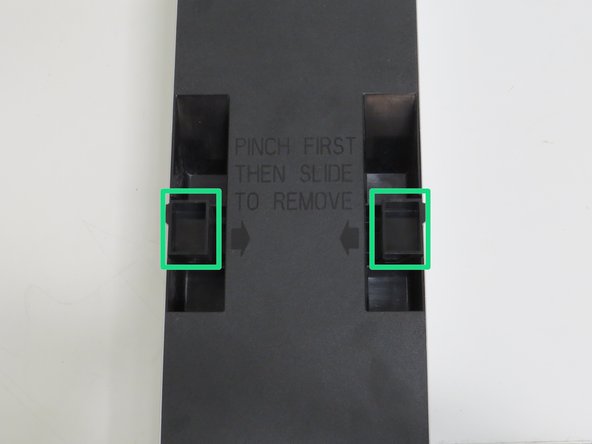

    • Squeeze (2) lid retention handles towards the center of the node.

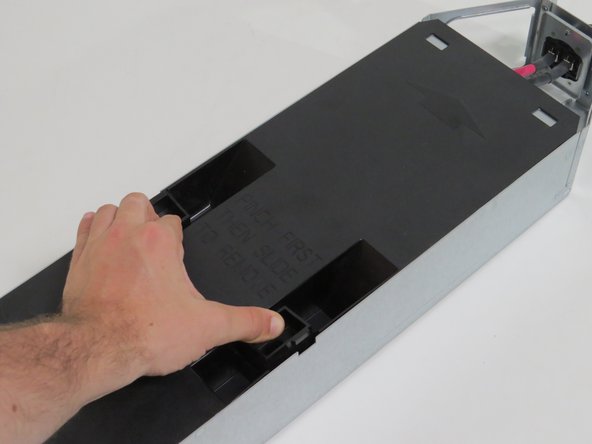

    • Slide the lid towards the rear of the server node.

    • Lift and remove the lid.

    Edit

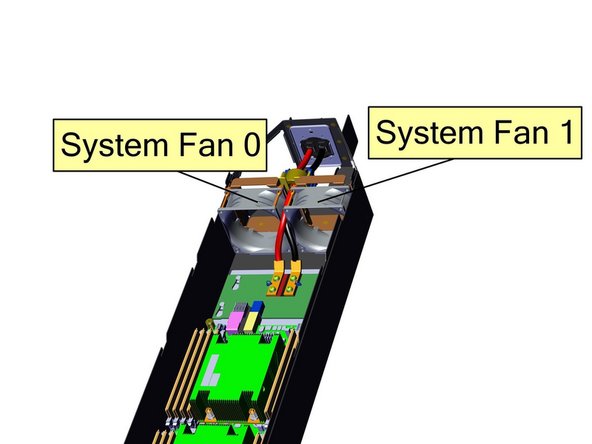

  6. Use the image to identify the fans.

    • Use the image to identify the fans.

    • Fans are oriented 0~1, left to right.

    Edit

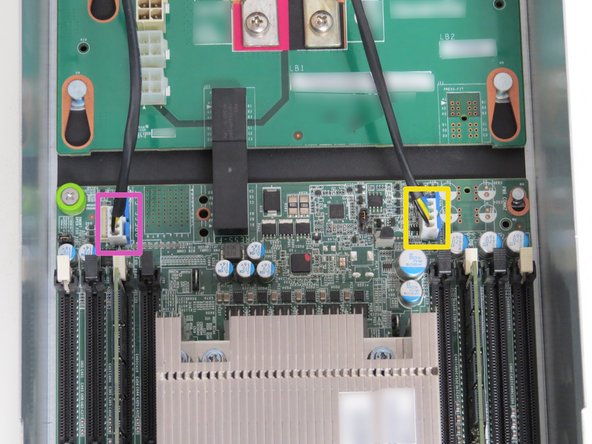

  7. Locate the failed fan power connector. System Fan 0 Power Connector System Fan 1 Power Connector

    • Locate the failed fan power connector.

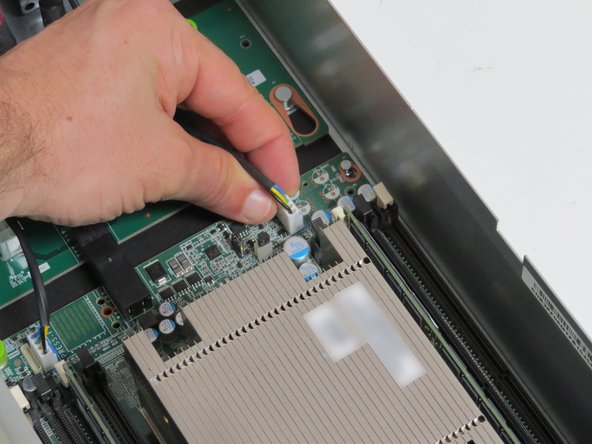

    • System Fan 0 Power Connector

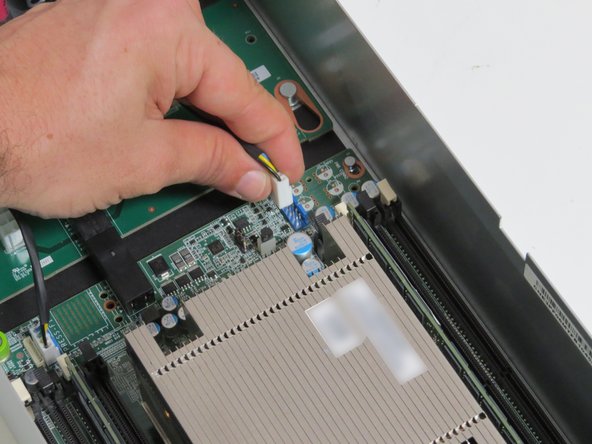

    • System Fan 1 Power Connector

    • Engage the connector by the white header.

    • Disconnect the cable.

    Edit

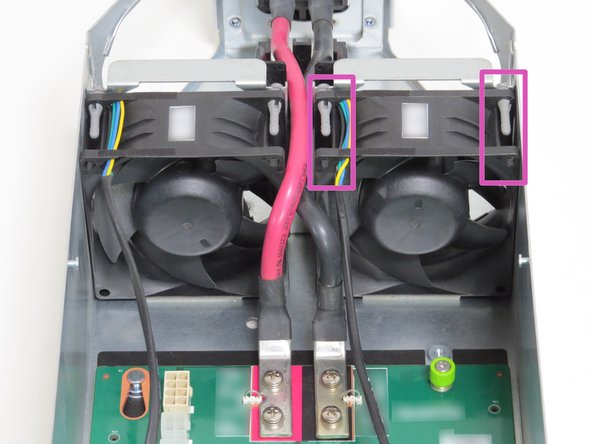

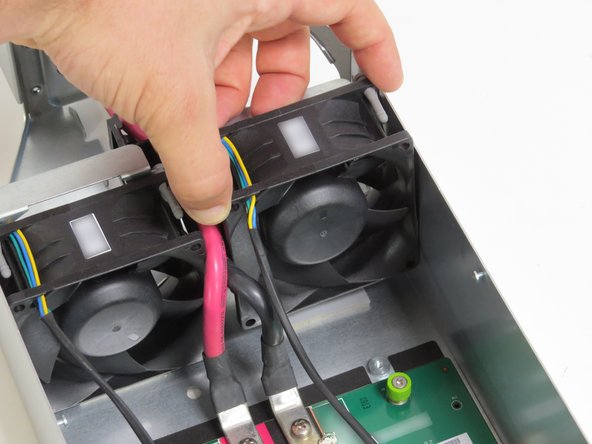

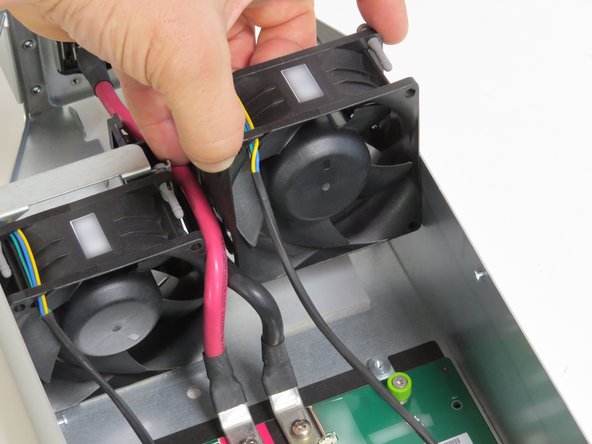

  8. Engage the fan on both sides, as shown. Lift the fan from the system. Lift the fan from the system.

    • Engage the fan on both sides, as shown.

    • Lift the fan from the system.

    Edit

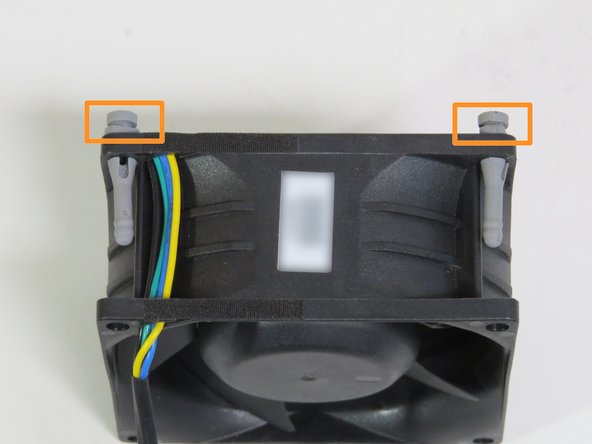

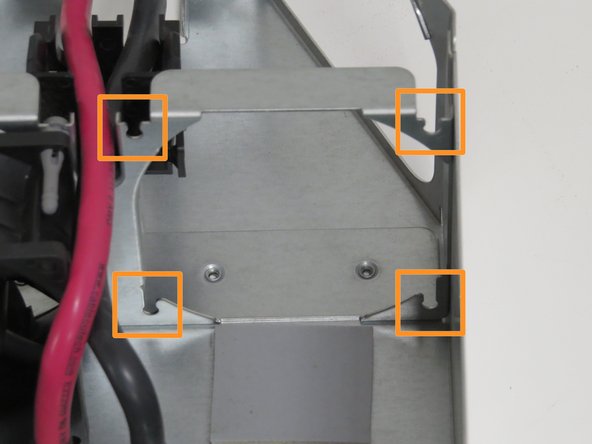

  9. Align (4) fan rubber grommets (2 as shown), with (4) chassis fan grommet slots. Align (4) fan rubber grommets (2 as shown), with (4) chassis fan grommet slots.

    • Align (4) fan rubber grommets (2 as shown), with (4) chassis fan grommet slots.

    Edit

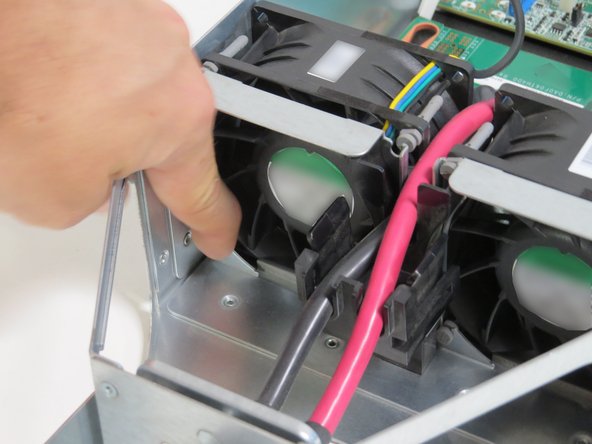

  10. Secure all (4) fan grommets into their respective slots. Secure all (4) fan grommets into their respective slots.

    • Secure all (4) fan grommets into their respective slots.

    Edit

  11. Connect the fan power cable.

    • Connect the fan power cable.

    • Make sure to align the key on the connector and header.

    Edit

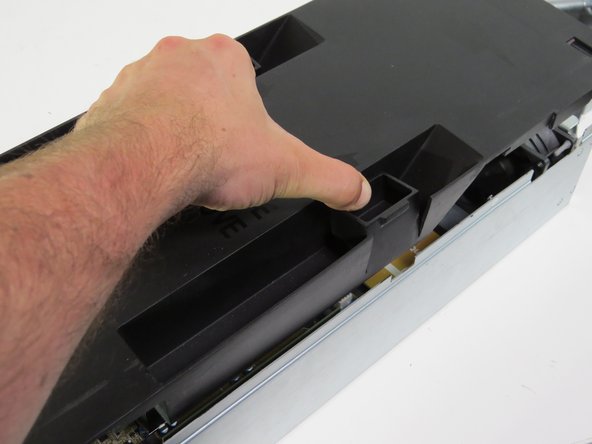

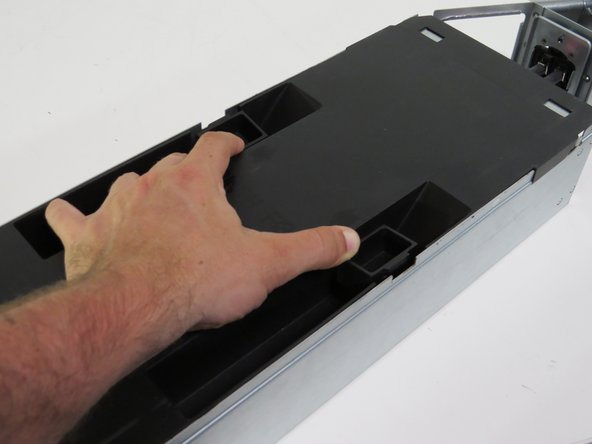

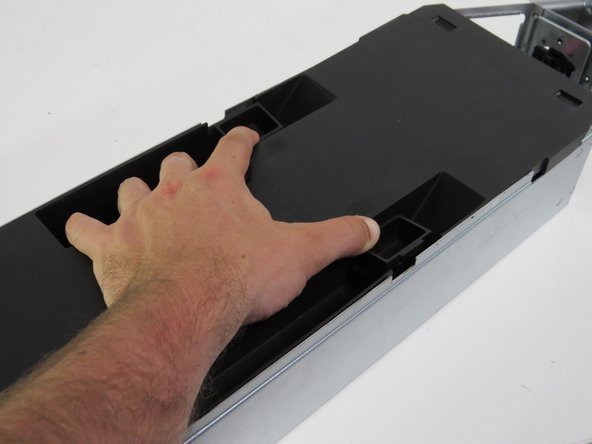

  12. Install the lid on the server, as shown. Install the lid on the server, as shown. Install the lid on the server, as shown.

    • Install the lid on the server, as shown.

    Edit

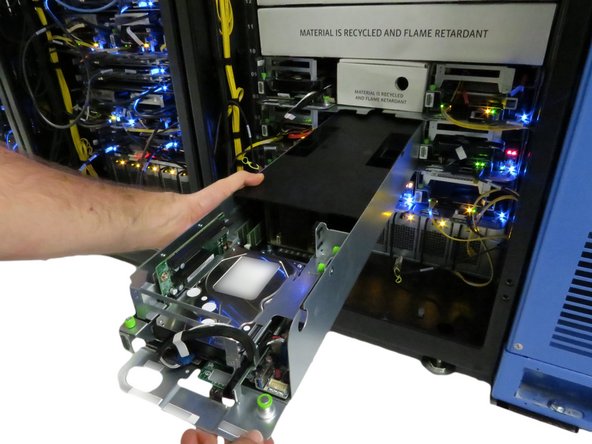

  13. Slide the server back into the rack. Continue pushing the server until the server chassis pin secures the server.

    • Slide the server back into the rack.

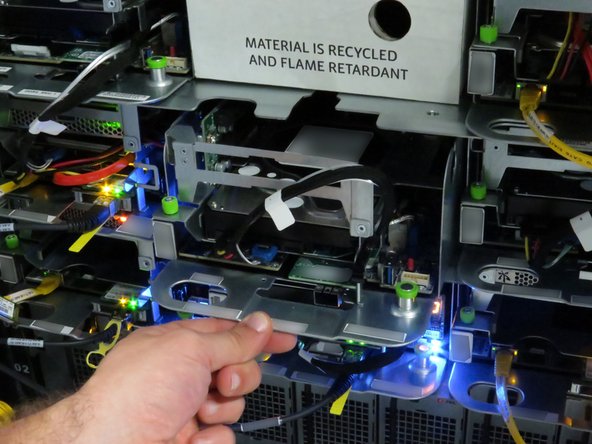

    • Continue pushing the server until the server chassis pin secures the server.

    • A distinctive 'click' will be felt when the pin secures the server in the rack.

    Edit

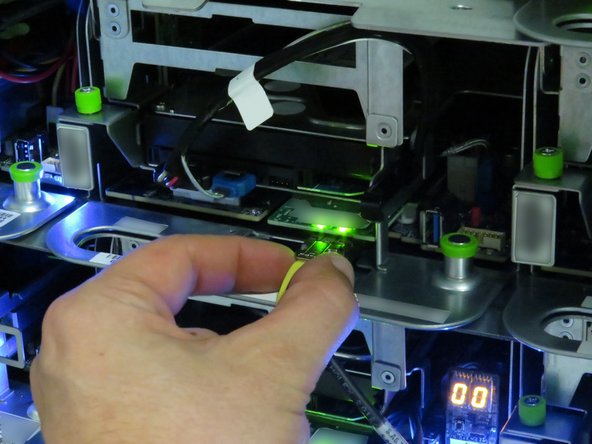

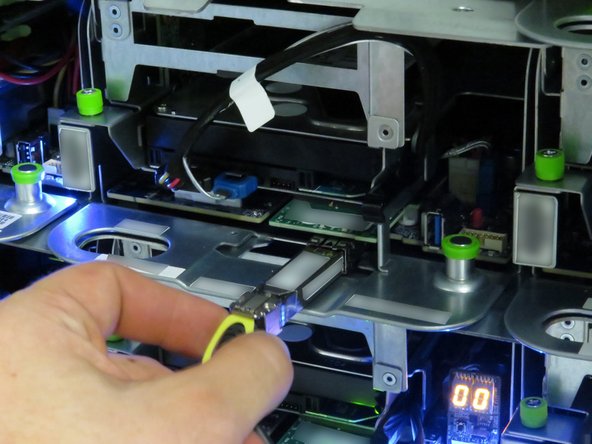

  14. Connect the 10G network interface cable. Connect the 10G network interface cable.

    • Connect the 10G network interface cable.

    Edit

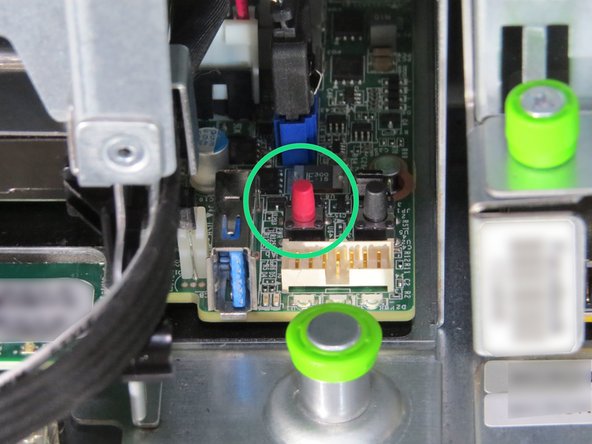

  15. Press the power button.

    • Press the power button.

    Edit
