Fan Replacement

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Very easy

Steps

4

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

  1. Identify the Open Compute V2 fan that needs to be replaced.

    • Identify the Open Compute V2 fan that needs to be replaced.

    • From left to right, fans are oriented in the Open Compute V2 chassis as follows:

    • Node 0, Sys Fan 0

    • Node 0, Sys Fan 1

    • Node 1, Sys Fan 0

    • Node 1, Sys Fan 1

    Edit

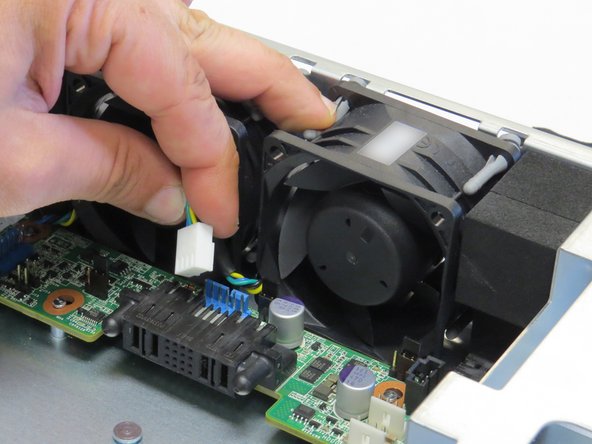

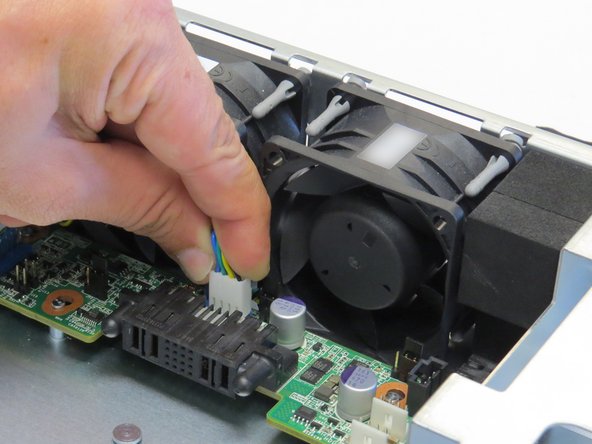

  2. Disconnect the fan power cable. Disconnect the fan power cable.

    • Disconnect the fan power cable.

    Edit

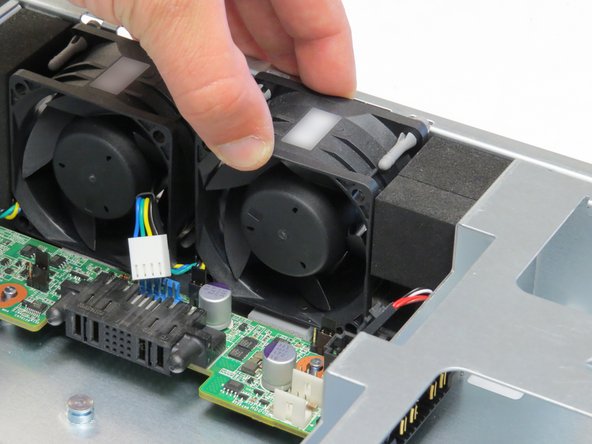

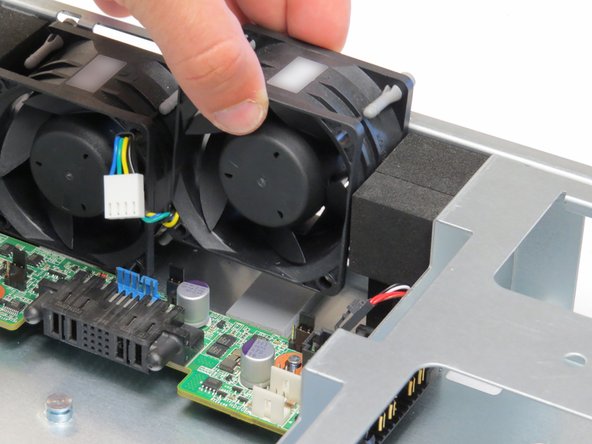

  3. Remove fan from the server chassis. Remove fan from the server chassis.

    • Remove fan from the server chassis.

    Edit

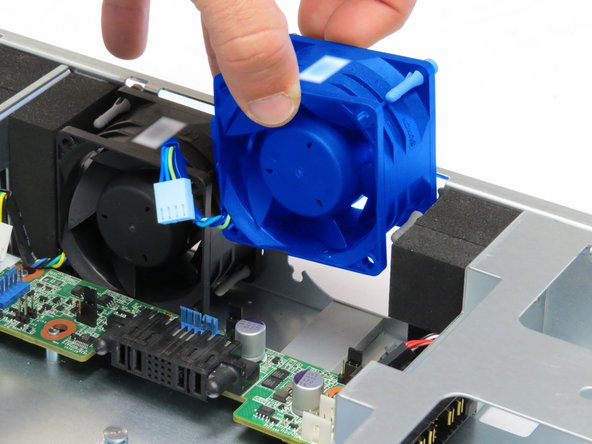

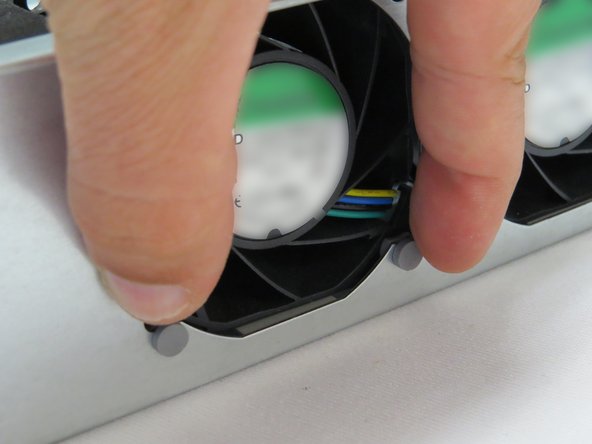

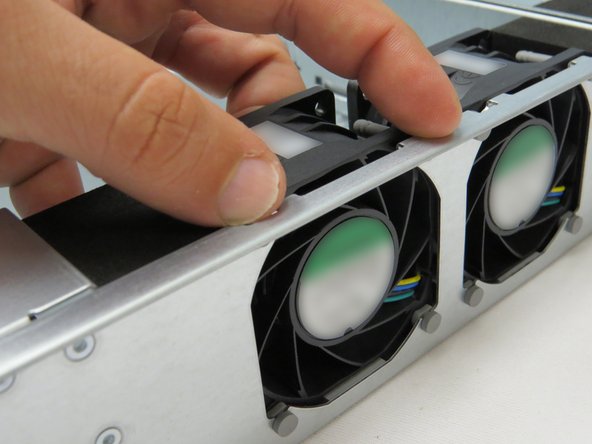

  4. Place new fan in the chassis. Ensure the rubber grommets sit correctly in chassis, as shown. Ensure the rubber grommets sit correctly in chassis, as shown.

    • Place new fan in the chassis.

    • Ensure the rubber grommets sit correctly in chassis, as shown.

    Edit
