Installing the Server in the Rack

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

4

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

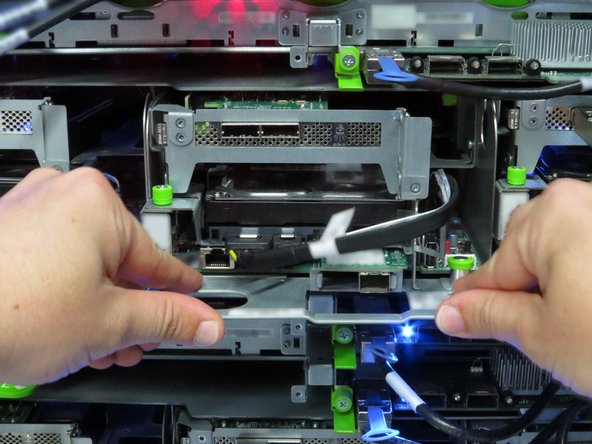

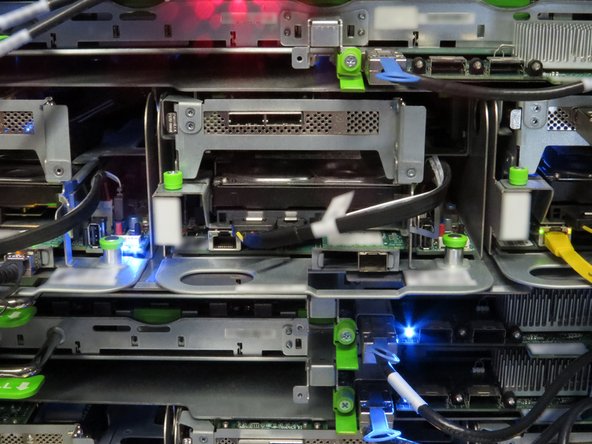

  1. Place the server in the slot where it was previously removed. Push the server into the slot. Do not use the chassis handle as it could pinch your hand.

    • Place the server in the slot where it was previously removed.

    • Push the server into the slot.

    • Do not use the chassis handle as it could pinch your hand.

    Edit

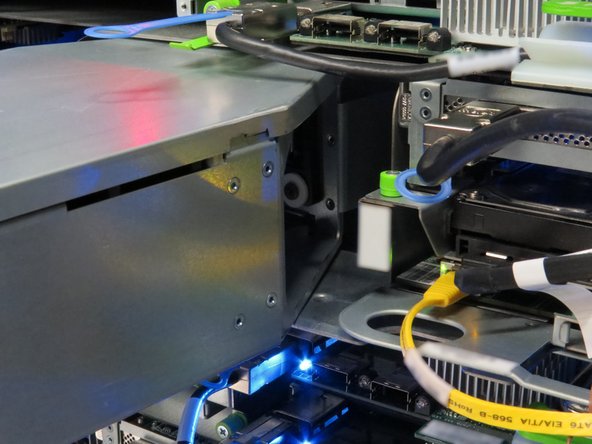

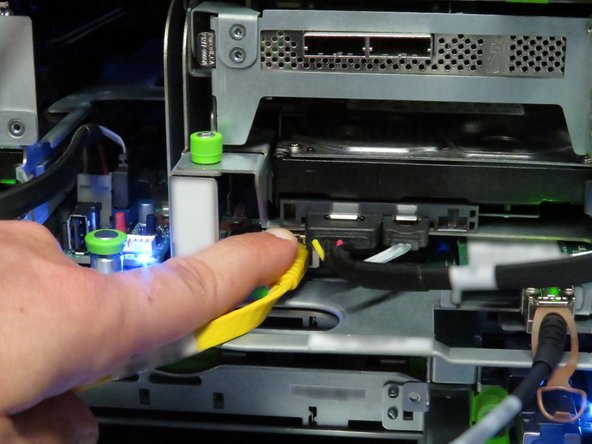

  2. Connect the Ethernet cable to the RJ45 port on the server motherboard.

    • Connect the Ethernet cable to the RJ45 port on the server motherboard.

    Edit

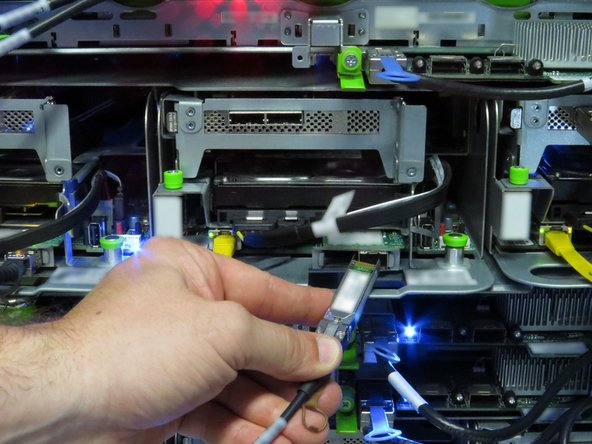

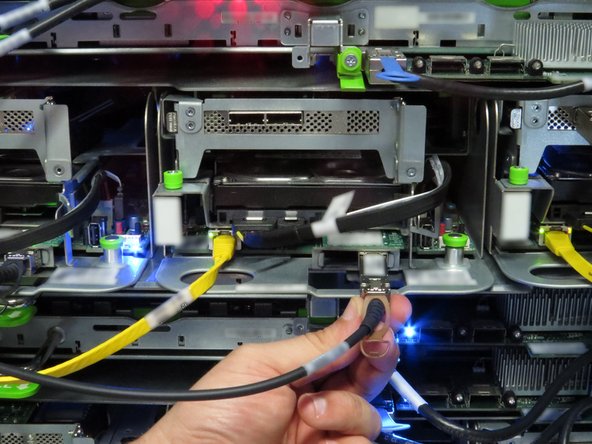

  3. Connect the 10G SFP+ cable to the network interface controller port. A distinctive 'click' will be audible when the cable is seated correctly.

    • Connect the 10G SFP+ cable to the network interface controller port.

    • A distinctive 'click' will be audible when the cable is seated correctly.

    Edit

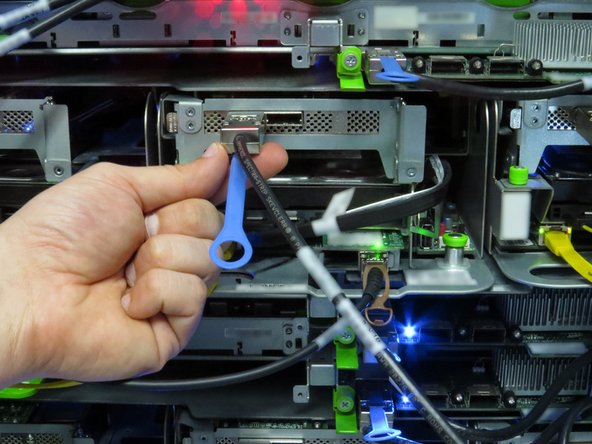

  4. Connect the Mini-SAS cable to the RAID controller.

    • Connect the Mini-SAS cable to the RAID controller.

    Edit
