Midplane Board Replacement

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

13

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

Introduction

This guide demonstrates how to replace a Midplane board in an Open Compute Server v2. == Acronyms and Terms ==

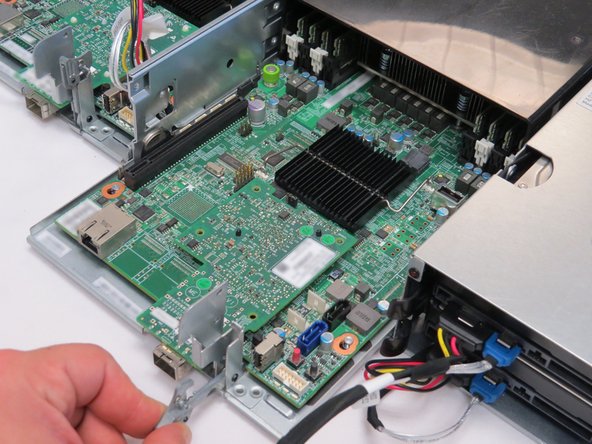

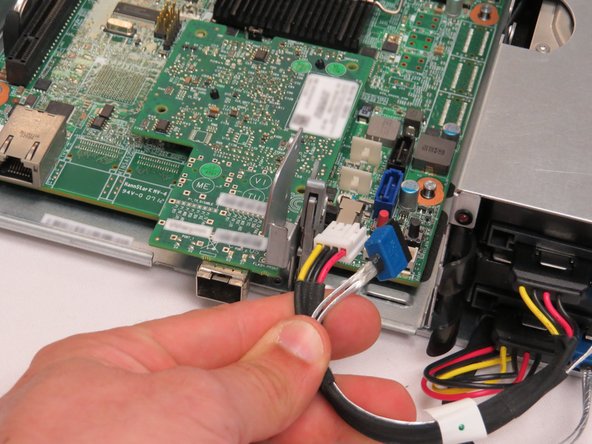

  1. Disconnect the SATA / power cable from from the server motherboard. Pinch the sled retention lever and pull it forward. Slide the server node out of the chasiss.

    • Disconnect the SATA / power cable from from the server motherboard.

    • Pinch the sled retention lever and pull it forward.

    • Slide the server node out of the chasiss.

    • Repeat these actions for the adjacent server node.

    Edit

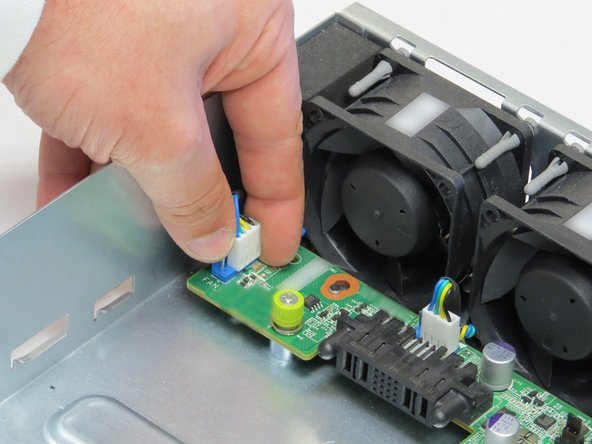

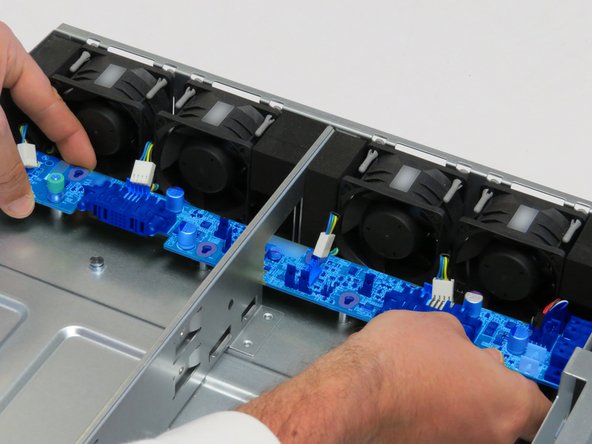

  2. Disconnect the four fan power cables connected to the midplane board. Disconnect the four fan power cables connected to the midplane board. Disconnect the four fan power cables connected to the midplane board.

    • Disconnect the four fan power cables connected to the midplane board.

    Edit

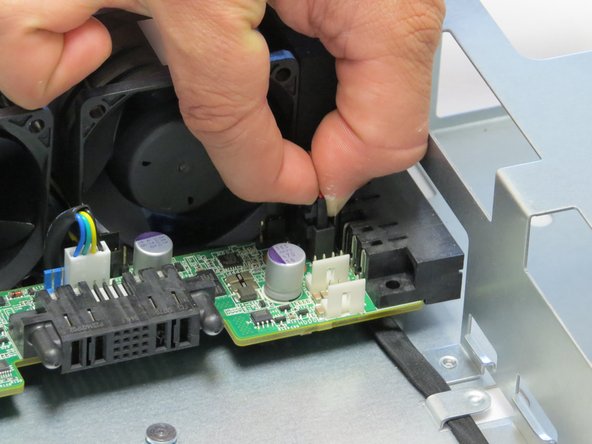

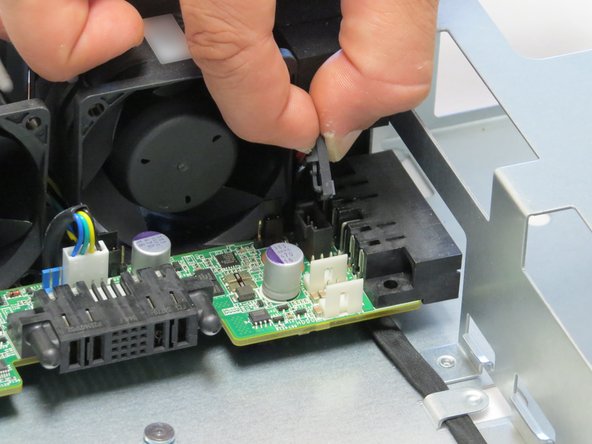

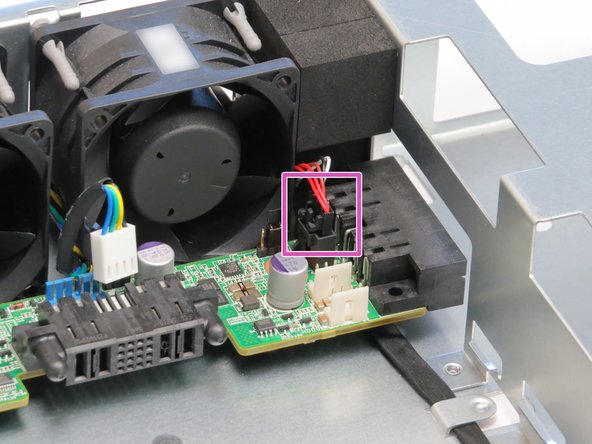

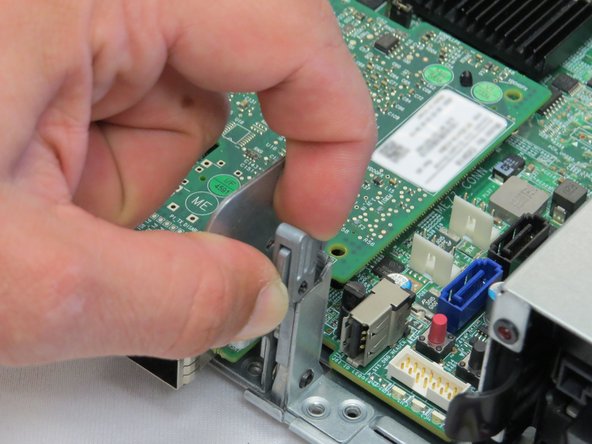

  3. Disconnect the LED cable. Make sure to pinch the LED retention cable tab before pulling it upwards. Make sure to pinch the LED retention cable tab before pulling it upwards.

    • Disconnect the LED cable.

    • Make sure to pinch the LED retention cable tab before pulling it upwards.

    Edit

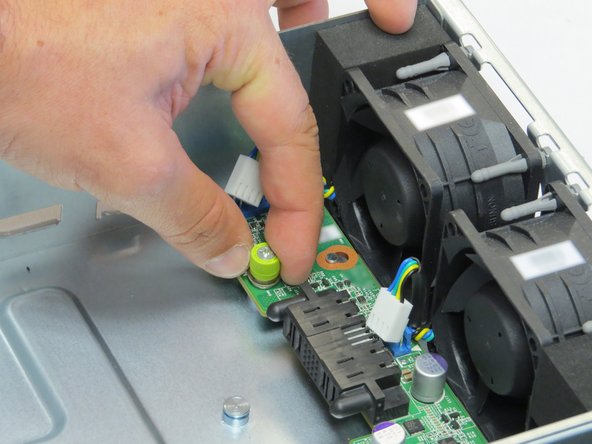

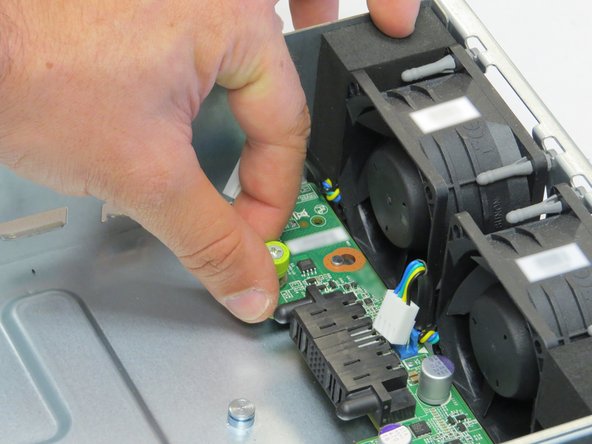

  4. Loosen one thumbscrew. Loosen one thumbscrew.

    • Loosen one thumbscrew.

    Edit

  5. Slide the midplane board towards the front of the chassis. Slide the board until resistance until is felt. Lift the board away from the chassis.

    • Slide the midplane board towards the front of the chassis.

    • Slide the board until resistance until is felt.

    • Lift the board away from the chassis.

    Edit

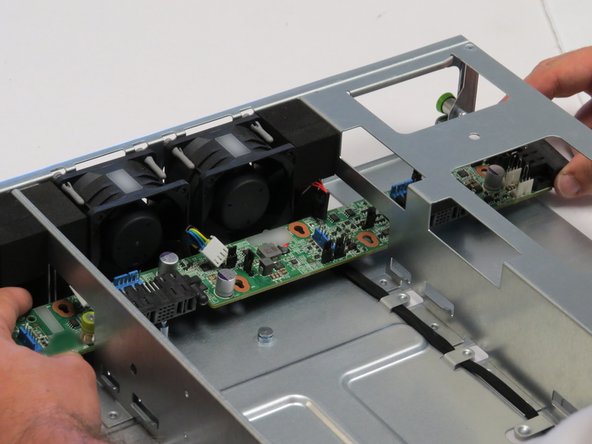

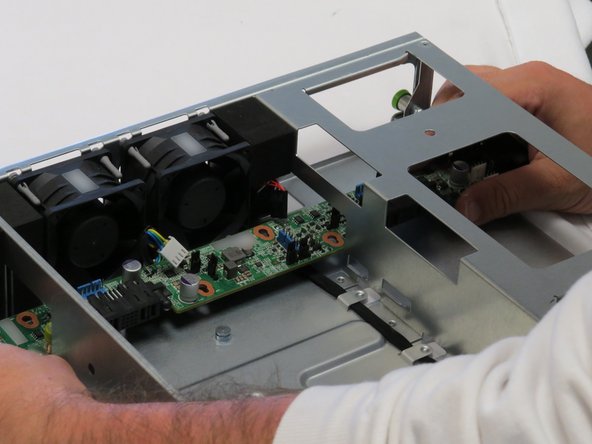

  6. Pull the midplane board through the cutout located on the right side of the chassis, as shown. Pull the midplane board through the cutout located on the right side of the chassis, as shown. Pull the midplane board through the cutout located on the right side of the chassis, as shown.

    • Pull the midplane board through the cutout located on the right side of the chassis, as shown.

    Edit

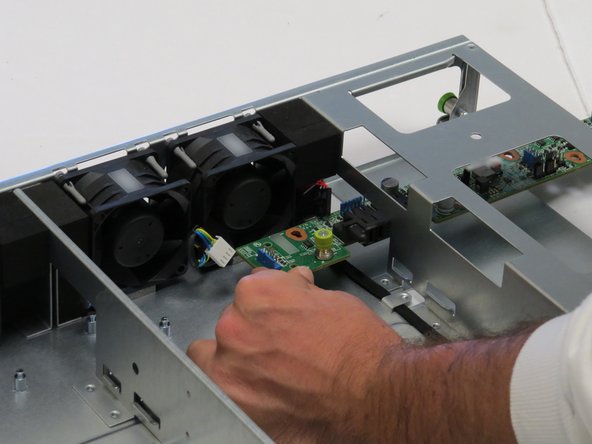

  7. Insert the new midplane board through the PSU slot. Guide the midplane board until its in its original position.

    • Insert the new midplane board through the PSU slot.

    • Guide the midplane board until its in its original position.

    Edit

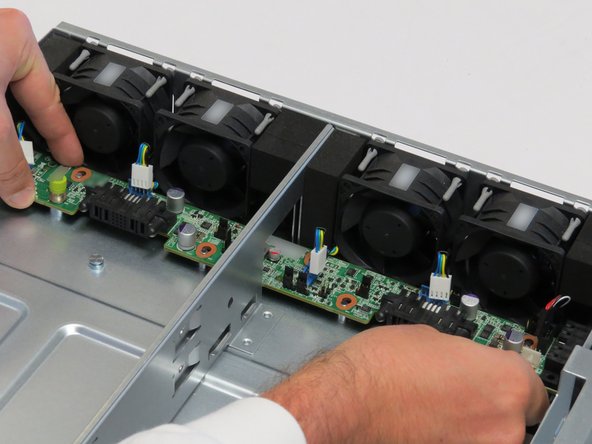

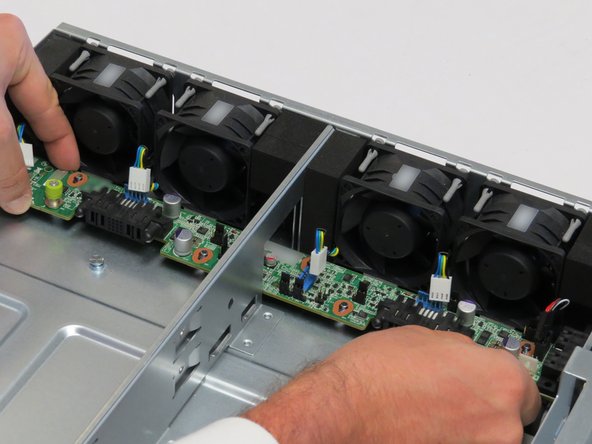

  8. Lower the midplane board onto the chassis standoffs / guides. Push the midplane board towards the fans. Push the midplane board towards the fans.

    • Lower the midplane board onto the chassis standoffs / guides.

    • Push the midplane board towards the fans.

    Edit

  9. Tighten the thumbscrew.

    • Tighten the thumbscrew.

    Edit

  10. Connect the LED cable. Connect the LED cable.

    • Connect the LED cable.

    Edit

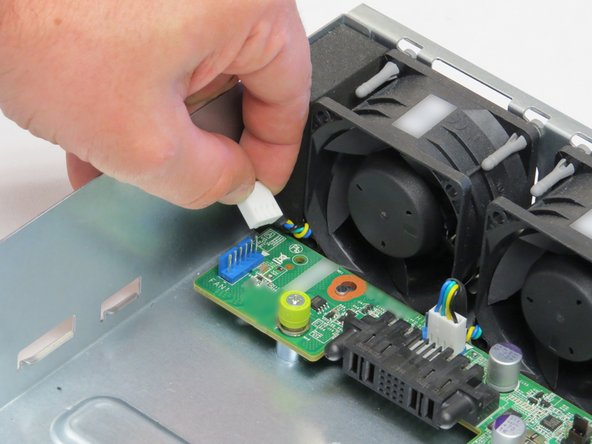

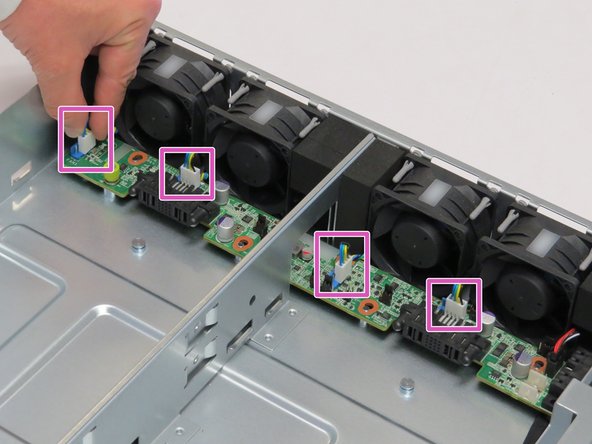

  11. Connect the four fan power cables to the midplane board.

    • Connect the four fan power cables to the midplane board.

    Edit

  12. Slide the server sleds back into the Open Compute V2 chassis.

    • Slide the server sleds back into the Open Compute V2 chassis.

    Edit

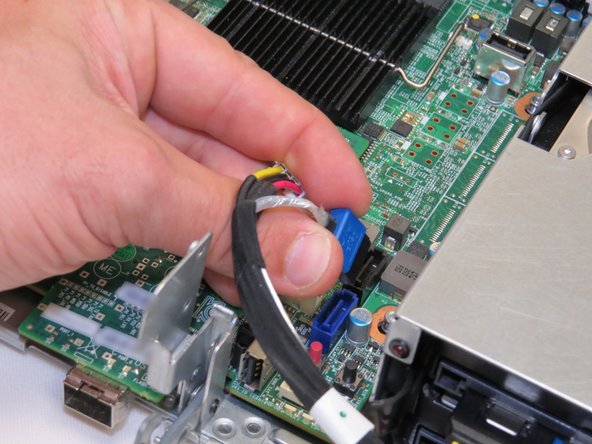

  13. Connect the SATA / power cable back into their respective motherboards.

    • Connect the SATA / power cable back into their respective motherboards.

    Edit
