Midplane Board Replacement

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

7

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

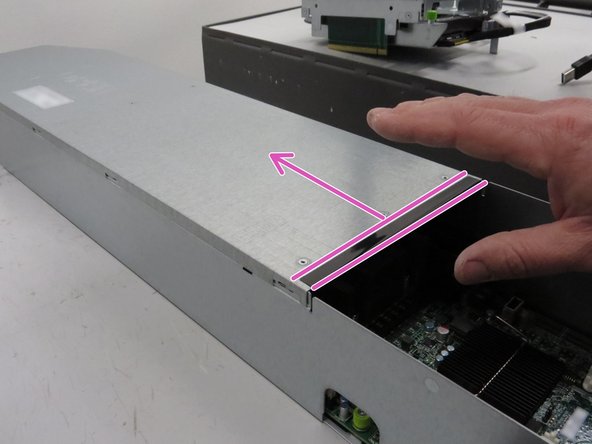

  1. Engage the server lid, as shown. Push the lid towards the rear of the server. Lift the cover.

    • Engage the server lid, as shown.

    • Push the lid towards the rear of the server.

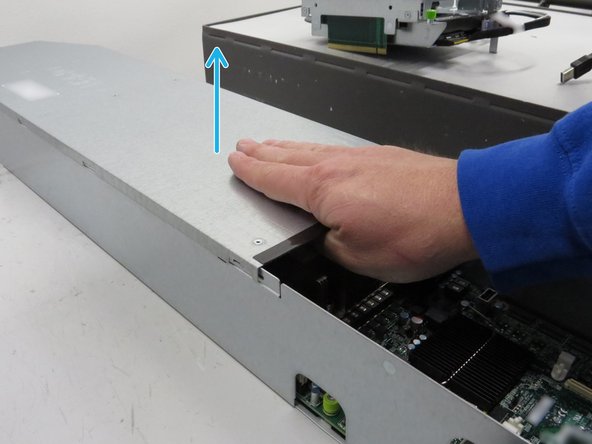

    • Lift the cover.

    Edit

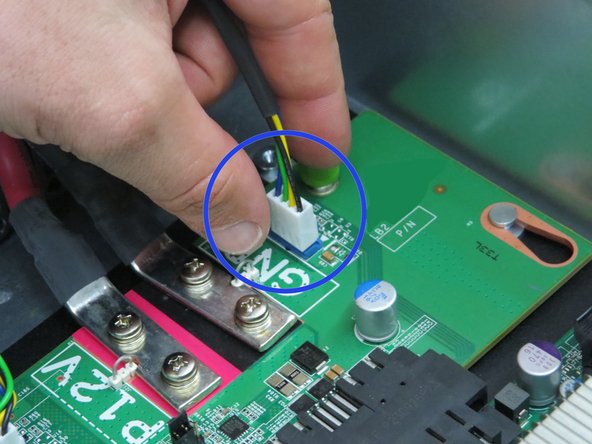

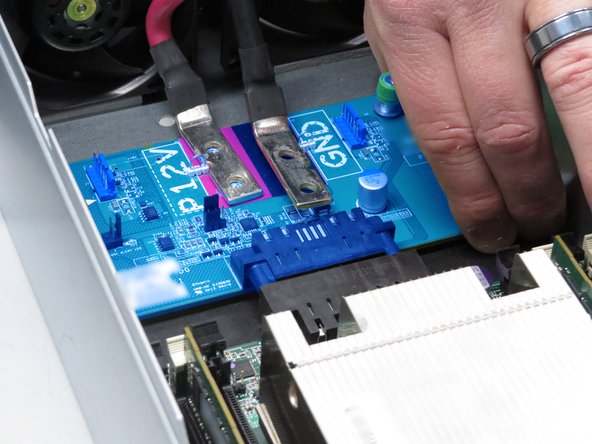

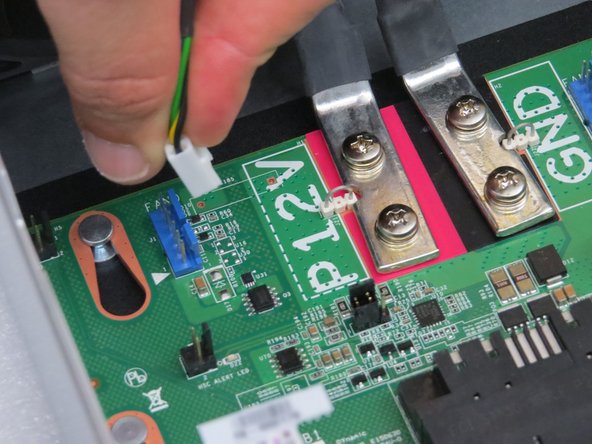

  2. Grab the right fan power connector.. Pull the power connector from the motherboard. Wiggling the power connector may be required.

    • Grab the right fan power connector..

    • Pull the power connector from the motherboard.

    • Wiggling the power connector may be required.

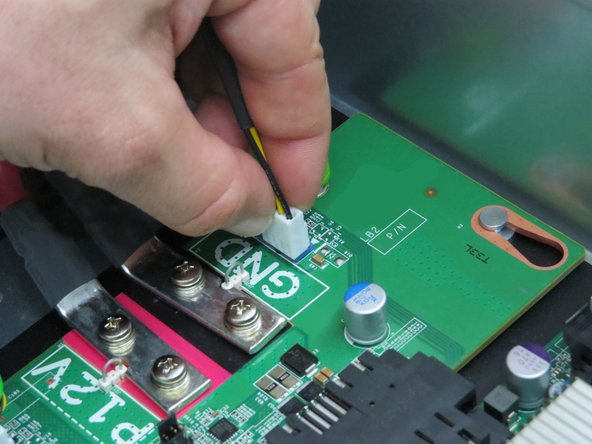

    • Repeat process for 2nd power connector.

    Edit

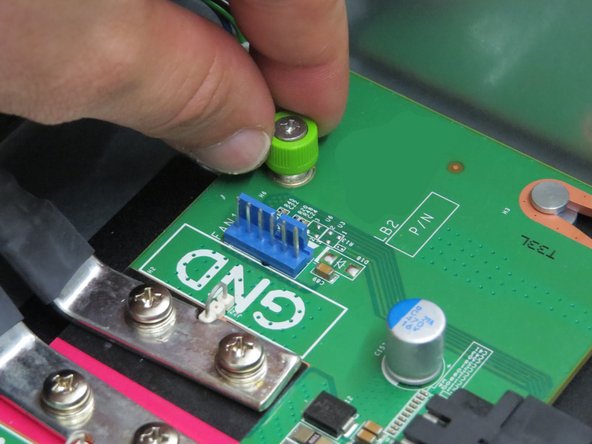

  3. Grab the thumbscrew as shown. Use a Phillips #2 screwdriver if the thumbscrew is tight. Use a Phillips #2 screwdriver if the thumbscrew is tight.

    • Grab the thumbscrew as shown.

    • Use a Phillips #2 screwdriver if the thumbscrew is tight.

    Edit

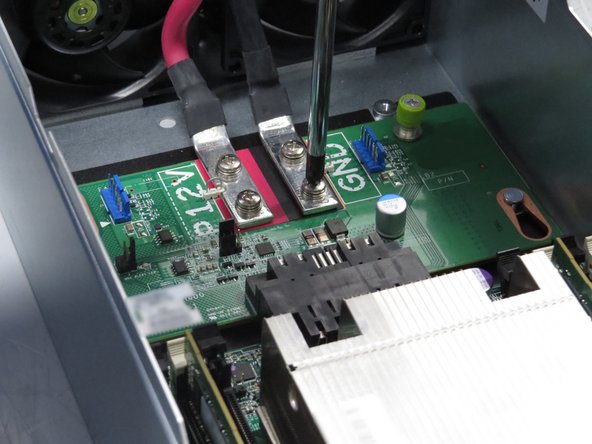

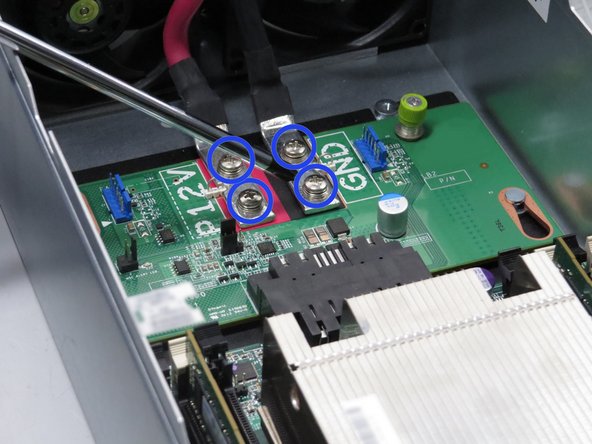

  4. Unscrew (4) screws, as shown. Unscrew (4) screws, as shown.

    • Unscrew (4) screws, as shown.

    Edit

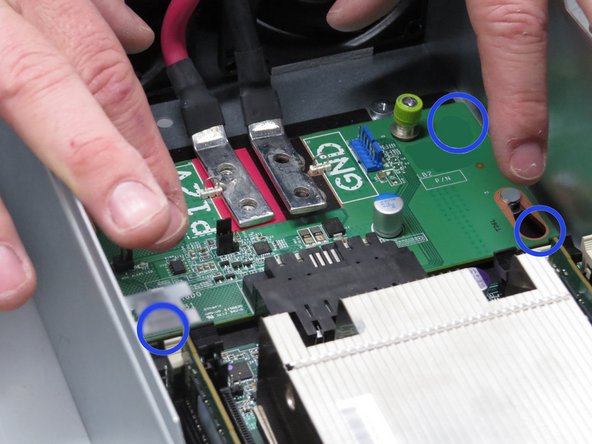

  5. Touch the midplane board as shown. Slide the board towards the back of the server. Lift the board away from the server.

    • Touch the midplane board as shown.

    • Slide the board towards the back of the server.

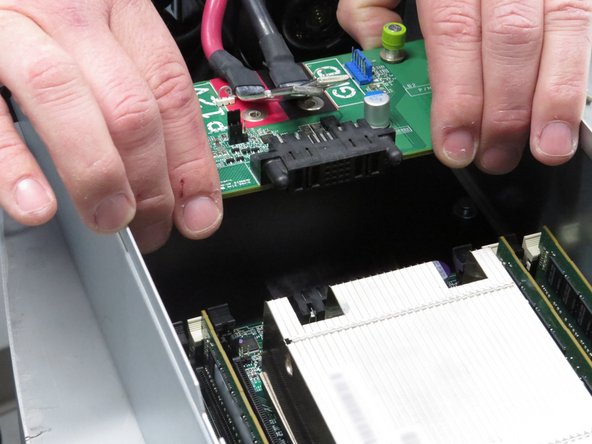

    • Lift the board away from the server.

    Edit

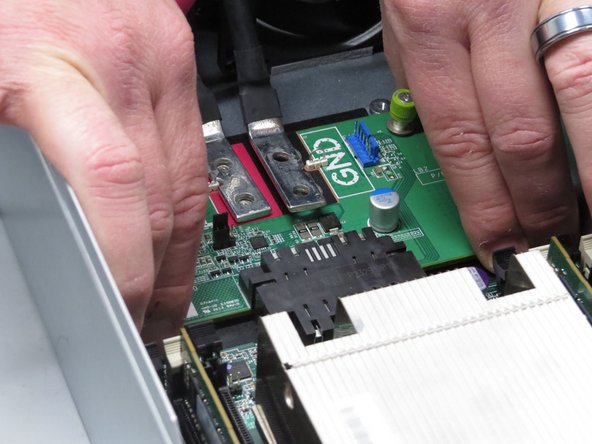

  6. Installation of the midplane board is opposite of the removal process. Installation of the midplane board is opposite of the removal process.

    • Installation of the midplane board is opposite of the removal process.

    Edit

  7. Install the lid on the server.

    • Install the lid on the server.

    • The installation process is opposite of the removal process.

    Edit
