Network Interface Card (NIC) Replacement

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

16

Time Required

Suggest a time??

Sections

1

Flags

0

    • Perform a warm shut down on the server. Run:

    • ssh -l root <hostname> shutdown -h now

    Edit

  2. Disconnect the 10G/25G cable from the SFP connector. Disconnect the 10G/25G cable from the SFP connector.

    • Disconnect the 10G/25G cable from the SFP connector.

    Edit

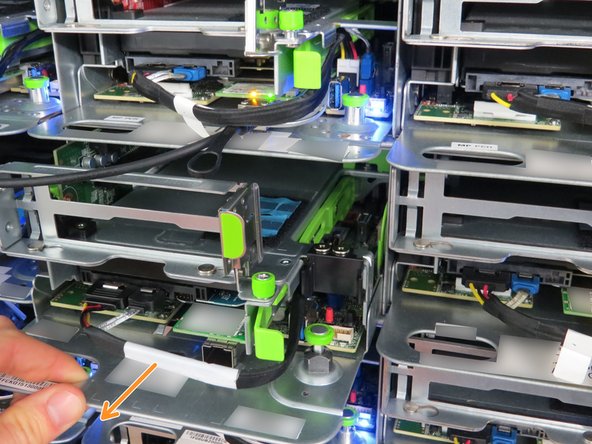

  3. Pull the green retention plunger upwards and twist 90 degrees to lock in the upright position. Using the handle located at the left side of the server sled, pull the sled outwards. Using the handle located at the left side of the server sled, pull the sled outwards.

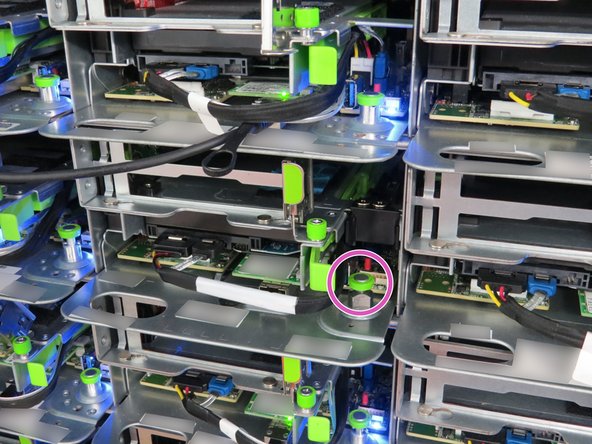

    • Pull the green retention plunger upwards and twist 90 degrees to lock in the upright position.

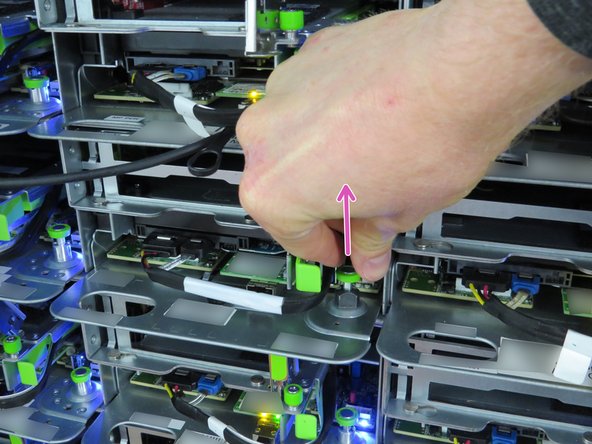

    • Using the handle located at the left side of the server sled, pull the sled outwards.

    Edit

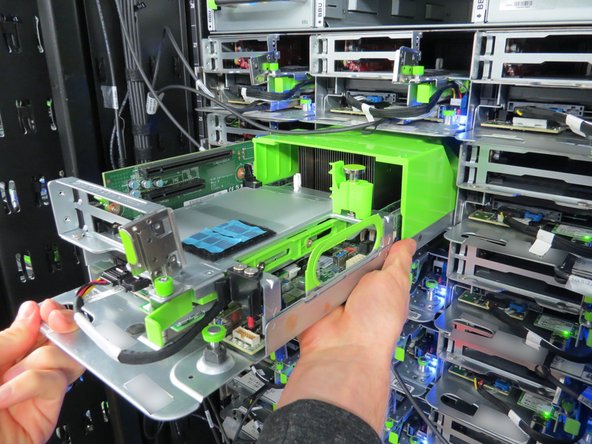

  4. Remove the server sled and place it onto a crash cart or work bench for service.

    • Remove the server sled and place it onto a crash cart or work bench for service.

    Edit

  5. Disconnect the following cables by pressing down on the metal retention tabs pulling away from the HDD: SATA cable Power cable

    • Disconnect the following cables by pressing down on the metal retention tabs pulling away from the HDD:

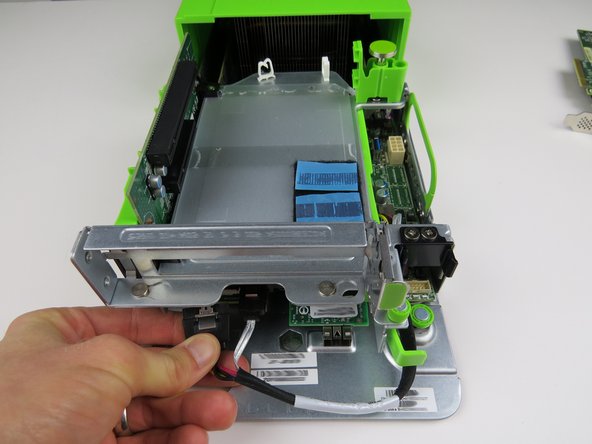

    • SATA cable

    • Power cable

    Edit

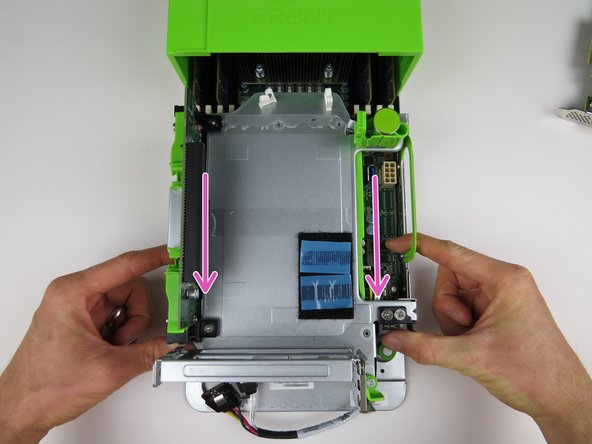

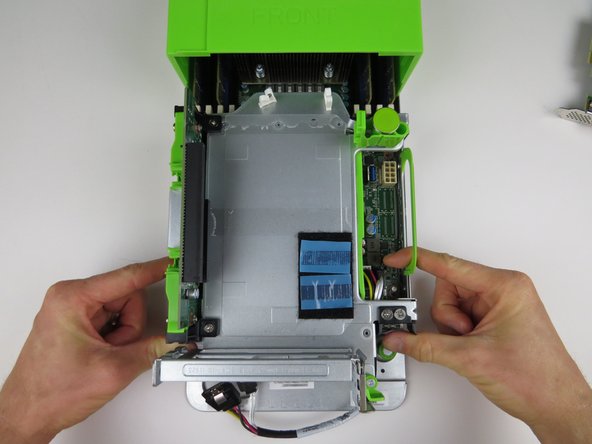

  6. Pull the two PCI Riser Cage locking handles towards the front of the server, as shown. Pull the two PCI Riser Cage locking handles towards the front of the server, as shown.

    • Pull the two PCI Riser Cage locking handles towards the front of the server, as shown.

    Edit

  7. Lift the PCI Riser Cage from the server chassis. Lift the PCI Riser Cage from the server chassis.

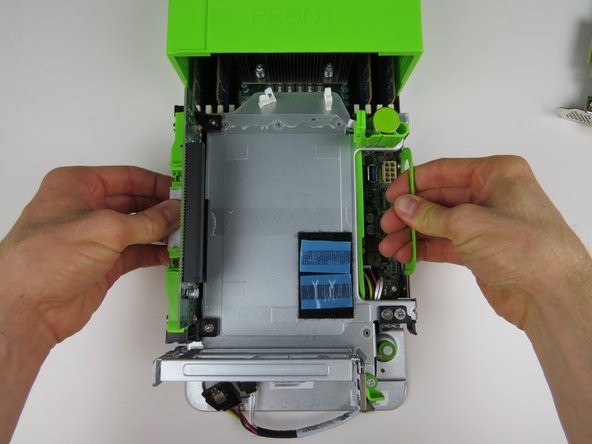

    • Lift the PCI Riser Cage from the server chassis.

    Edit

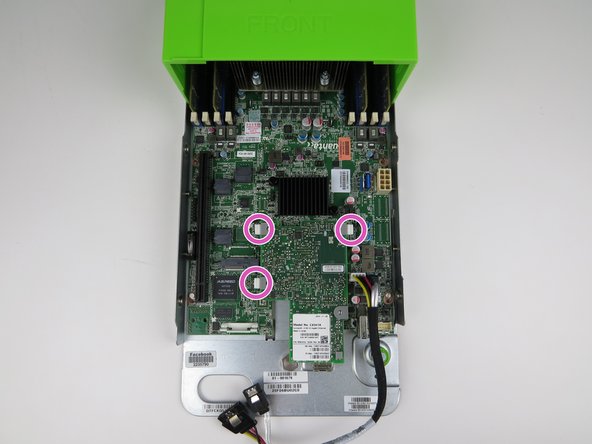

  8. Locate the (3) retention tabs which secure the NIC to the (4) motherboard standoffs.

    • Locate the (3) retention tabs which secure the NIC to the (4) motherboard standoffs.

    Edit

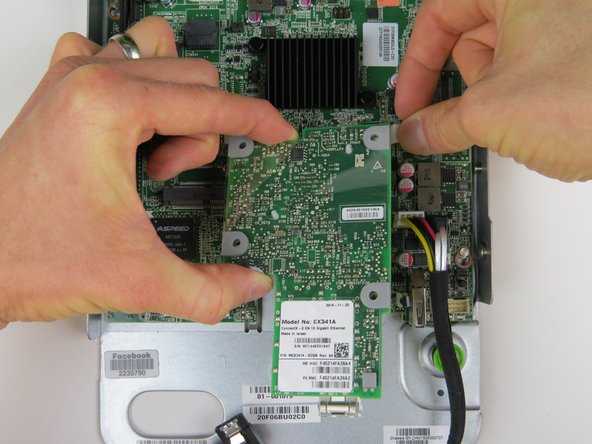

  9. To release the NIC, carefully press down on the retention tabs as shown. Lift the NIC to remove it from the motherboard. Lift the NIC to remove it from the motherboard.

    • To release the NIC, carefully press down on the retention tabs as shown.

    • Lift the NIC to remove it from the motherboard.

    Edit

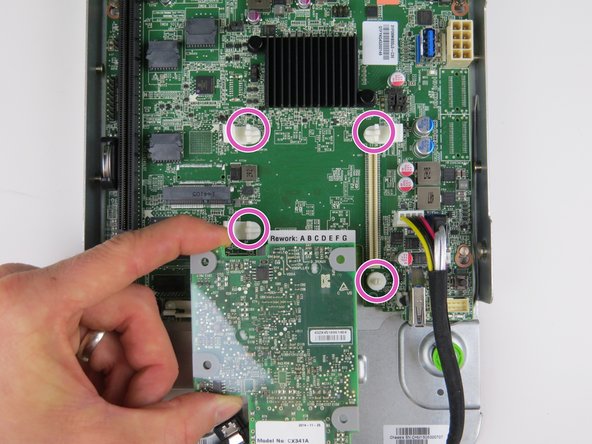

  10. Align the NIC onto (4) the nylon standoffs.

    • Align the NIC onto (4) the nylon standoffs.

    Edit

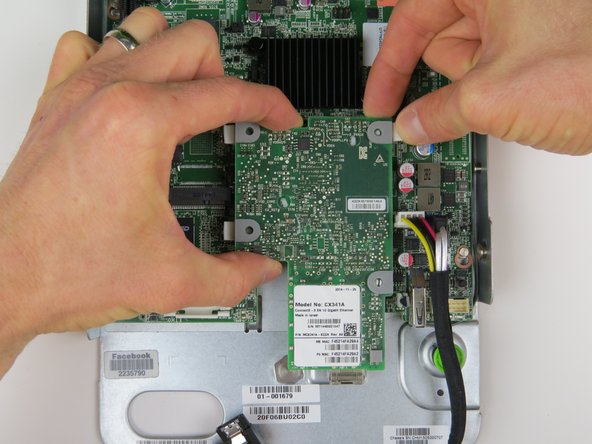

  11. Press down firmly to seat the NIC. Ensure all (4) corners are secure. Ensure all (4) corners are secure.

    • Press down firmly to seat the NIC.

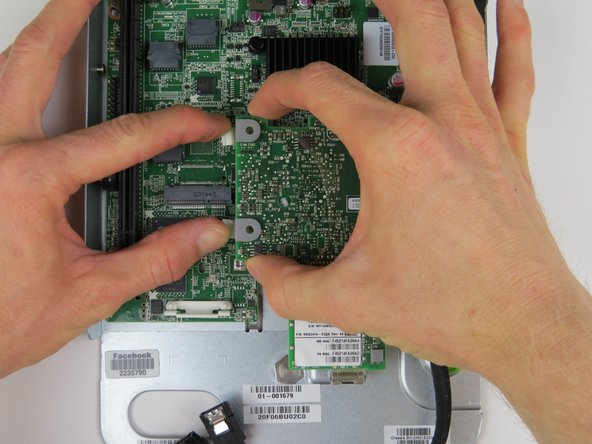

    • Ensure all (4) corners are secure.

    Edit

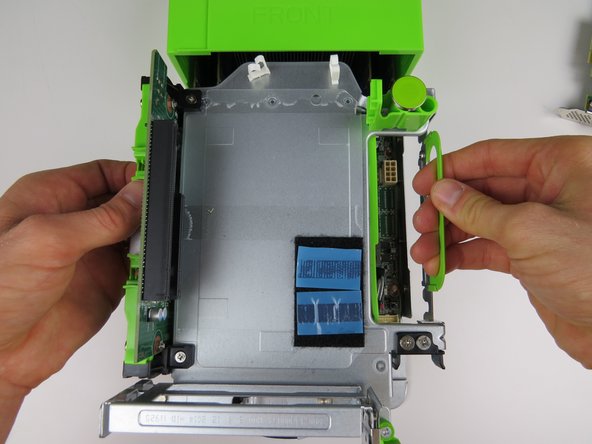

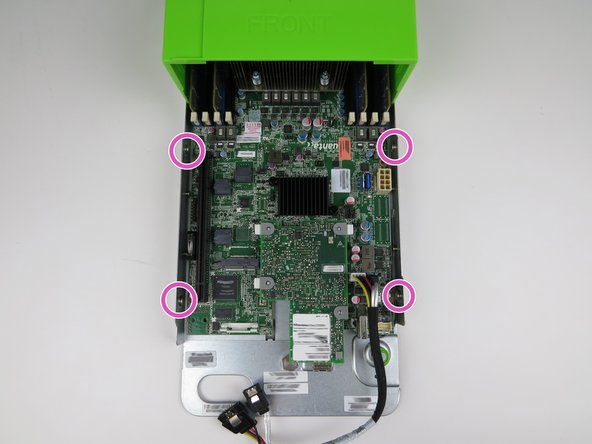

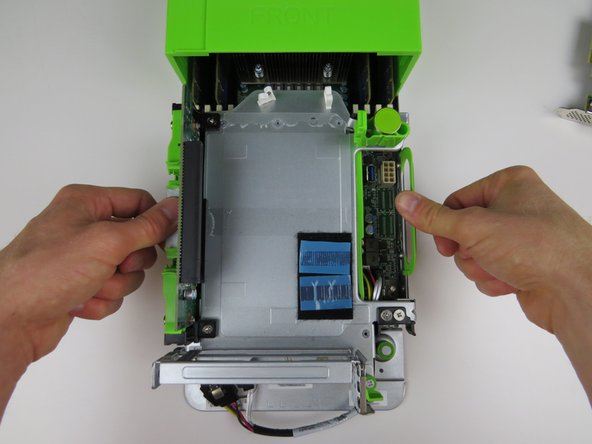

  12. Align (4) PCI Riser Cage slots with the chassis keys. Lower the PCI Riser Cage onto the server chassis and press firmly to seat. Lower the PCI Riser Cage onto the server chassis and press firmly to seat.

    • Align (4) PCI Riser Cage slots with the chassis keys.

    • Lower the PCI Riser Cage onto the server chassis and press firmly to seat.

    Edit

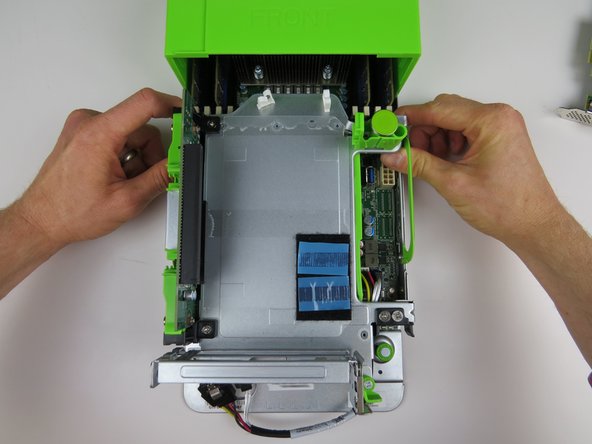

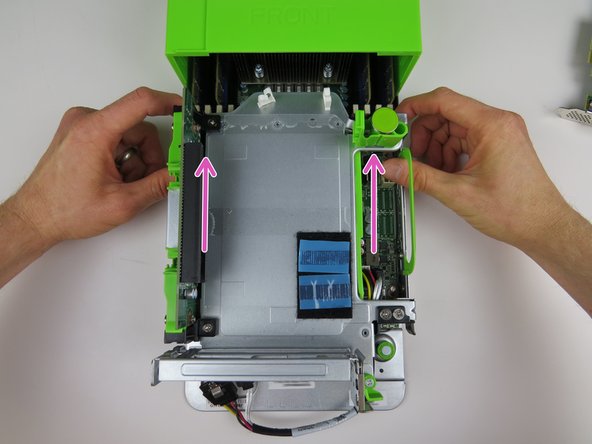

  13. Lock the PCI Riser Cage by pushing the two handles towards the rear of the server until they click into place. Lock the PCI Riser Cage by pushing the two handles towards the rear of the server until they click into place.

    • Lock the PCI Riser Cage by pushing the two handles towards the rear of the server until they click into place.

    Edit

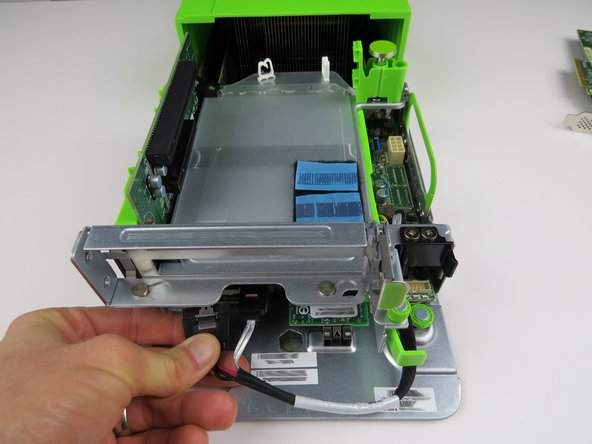

  14. Connect the SATA and Power cables as shown. Connect the SATA and Power cables as shown. Connect the SATA and Power cables as shown.

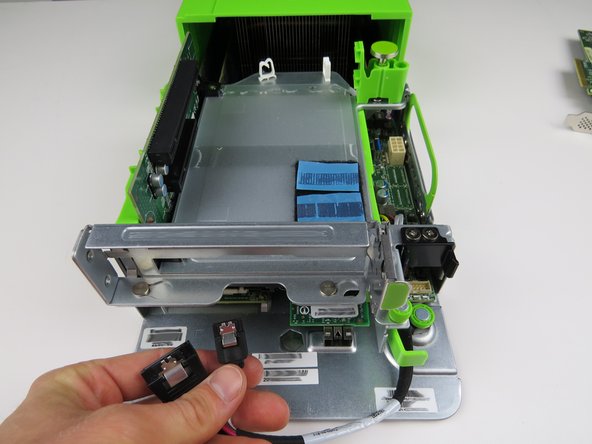

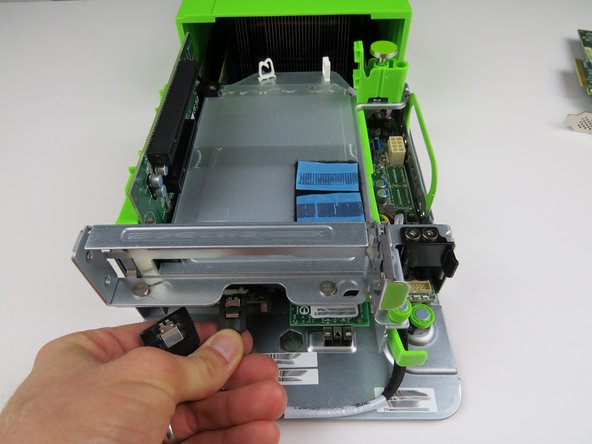

    • Connect the SATA and Power cables as shown.

    Edit

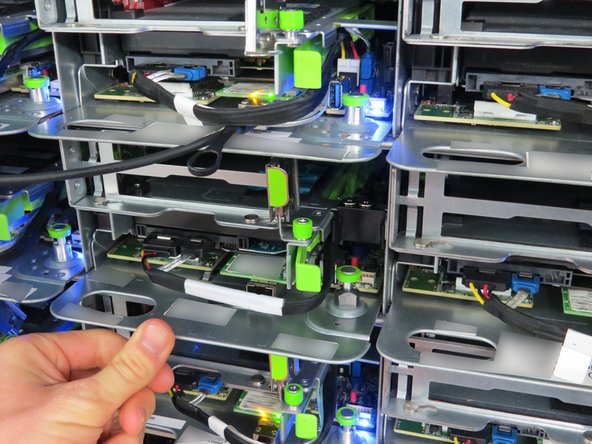

  15. Insert the server sled into the rack as shown. If the green retention plunger is still in the upright position, twist it 90 degrees to release it. This will secure the server. If the green retention plunger is still in the upright position, twist it 90 degrees to release it. This will secure the server.

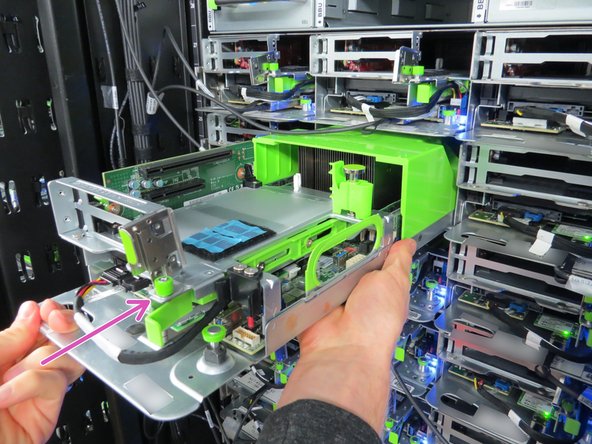

    • Insert the server sled into the rack as shown.

    • If the green retention plunger is still in the upright position, twist it 90 degrees to release it. This will secure the server.

    Edit

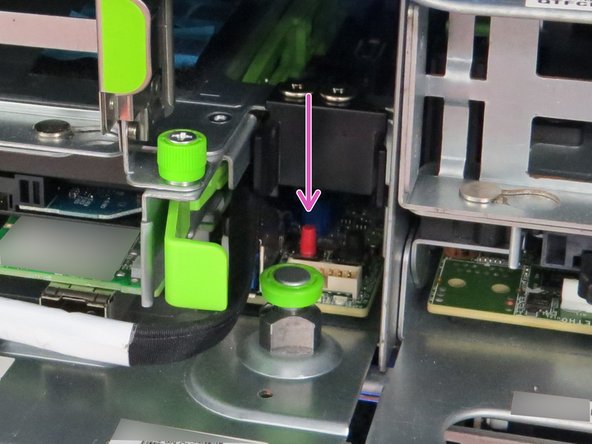

  16. Press the power button to power-on the server.

    • Press the power button to power-on the server.

    Edit
