Power Supply Unit (PSU) Replacement

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

3

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

  1. Disconnect one DC cable connector from the PSU. Disconnect one AC cable connector from the PSU. Make sure to pinch the connector tabs to release the cables..

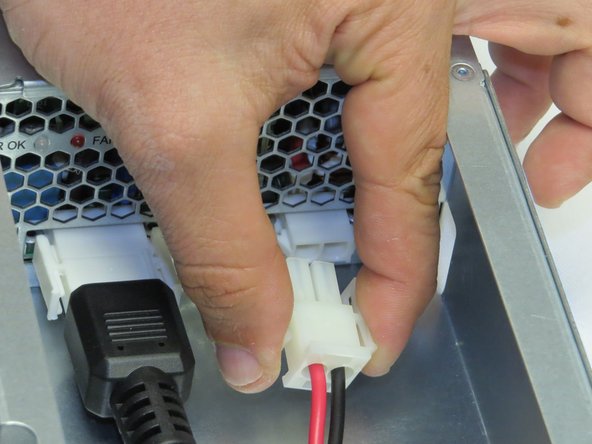

    • Disconnect one DC cable connector from the PSU.

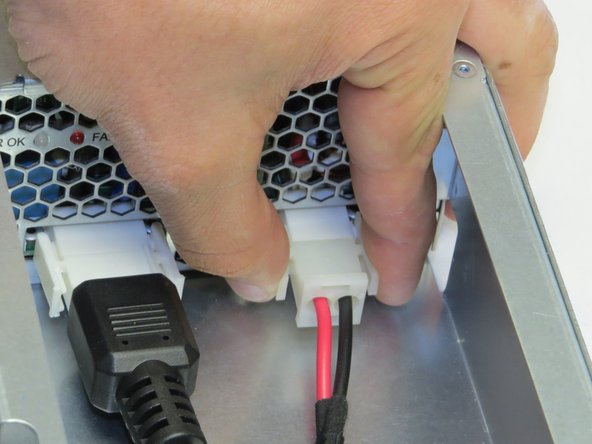

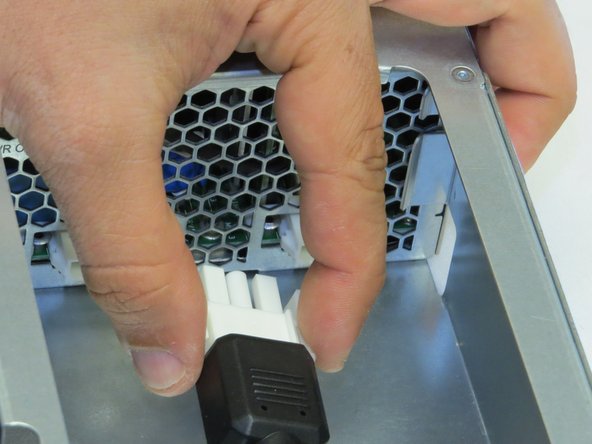

    • Disconnect one AC cable connector from the PSU.

    • Make sure to pinch the connector tabs to release the cables..

    Edit

  2. Pull the retention plunger away from the PSU. Push the PSU away from the chassis while holding the plunger outwards, as shown. Push the PSU away from the chassis while holding the plunger outwards, as shown.

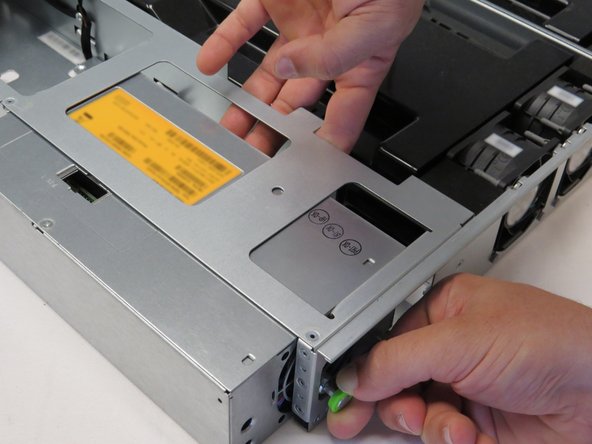

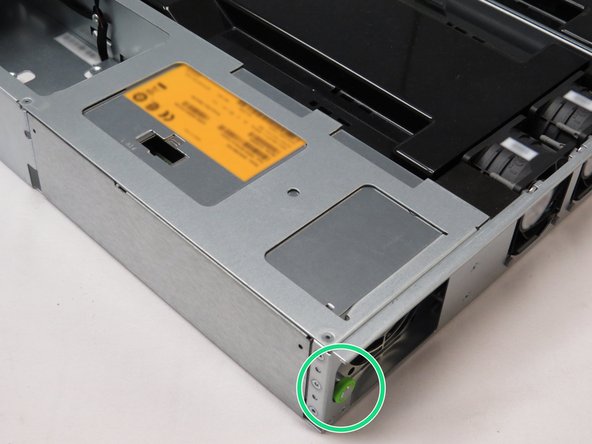

    • Pull the retention plunger away from the PSU.

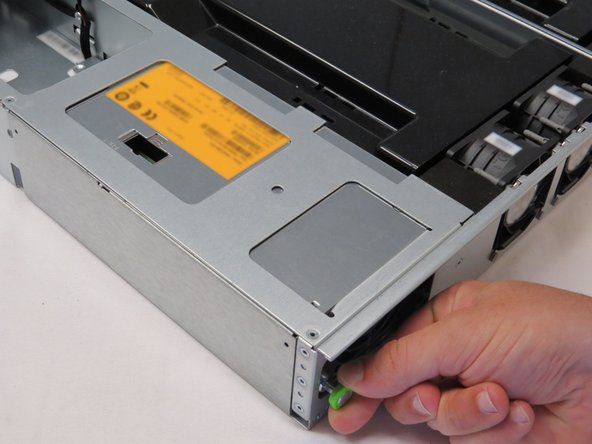

    • Push the PSU away from the chassis while holding the plunger outwards, as shown.

    Edit

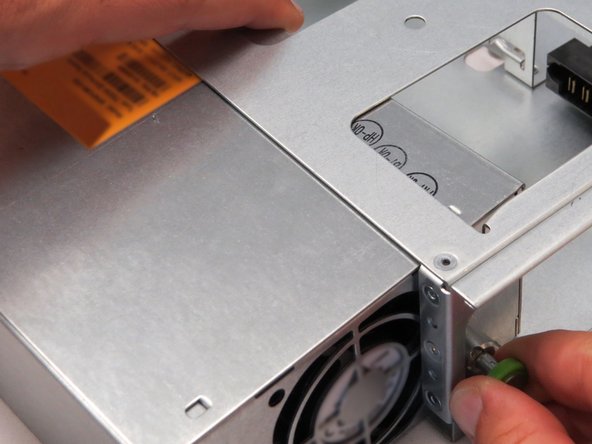

  3. Pull the retention plunger away from the chassis. Push the new PSU in towards the chassis, as shown. Release the retention plunger to secure the PSU.

    • Pull the retention plunger away from the chassis.

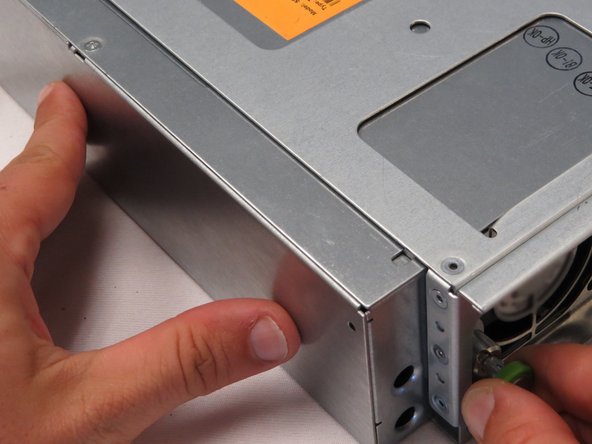

    • Push the new PSU in towards the chassis, as shown.

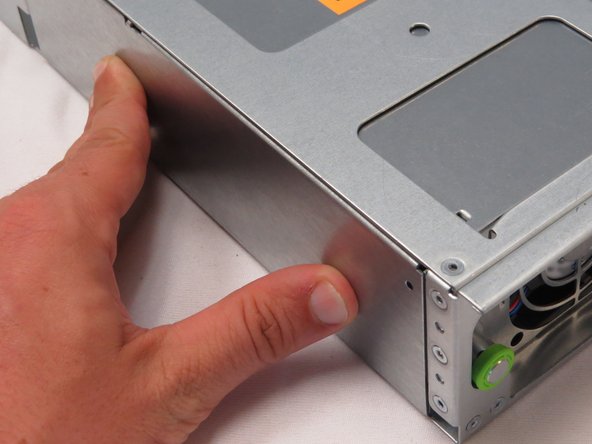

    • Release the retention plunger to secure the PSU.

    Edit
