Introduction

Overview

Wedge - This guide demonstrates how to select which Quad Small Form-factor Pluggable (QSFP) port status the LEDs reflect == Acronyms and Terms == * LED - Light-Emitting Diode * QSFP - Quad Small Form-factor Pluggable; a type of hot-pluggable transceiver for data communication applications.

  1. The Wedge switch features an LED Select toggle to show the status of either the top or bottom QSFP port. Press the LED Select button toggle between which QSFP LED port status indicators.
    • The Wedge switch features an LED Select toggle to show the status of either the top or bottom QSFP port.

    • Press the LED Select button toggle between which QSFP LED port status indicators.

    • When the Top LED is on, the QSFP status for the top port will be shown on its respective QSFP port. When the Bot LED is on, the QSFP status for the bottom port will be shown on the respective QSFP port.

  2. The following table shows Uniform QSFP port states.
    • The following table shows Uniform QSFP port states.

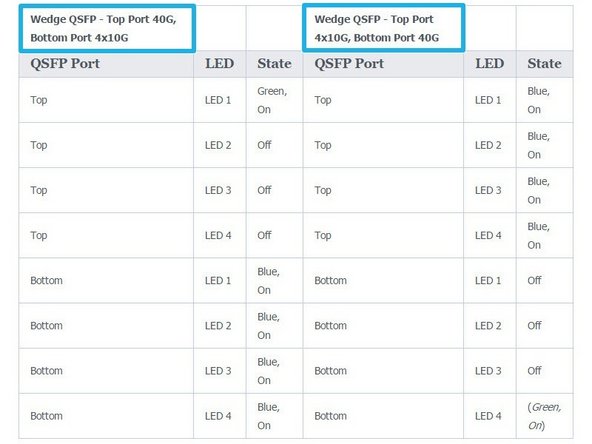

  3. The following table shows mixed QSFP port states.
    • The following table shows mixed QSFP port states.
