Removing RAID Controller

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

3

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

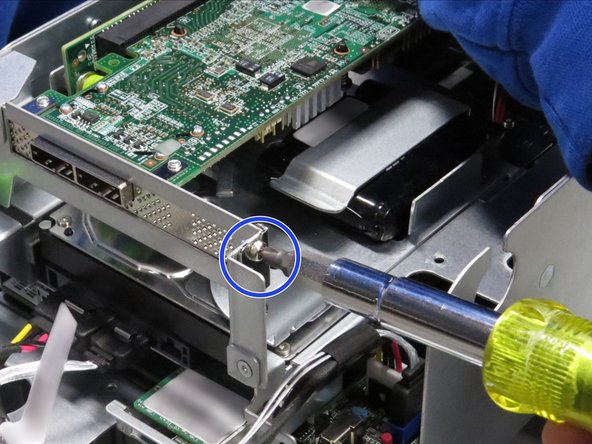

  1. Unscrew the Phillips #2 screw from the RAID controller bracket.

    • Unscrew the Phillips #2 screw from the RAID controller bracket.

    Edit

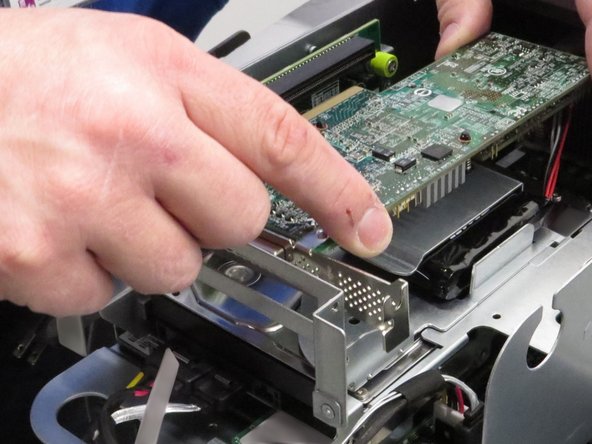

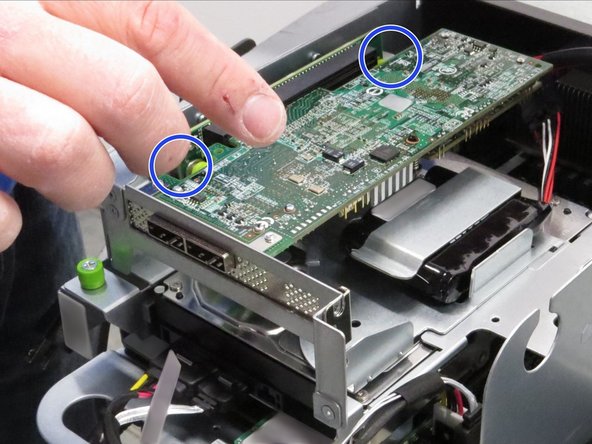

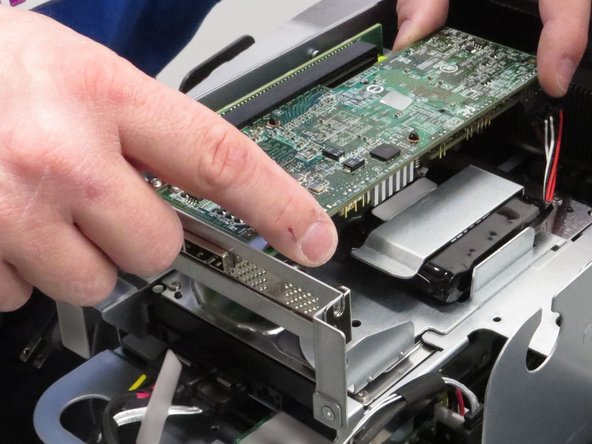

  2. Place your thumbs behind the RAID controller circuit board, as shown. Push the RAID controller away from the riser board socket. Push the RAID controller away from the riser board socket.

    • Place your thumbs behind the RAID controller circuit board, as shown.

    • Push the RAID controller away from the riser board socket.

    Edit

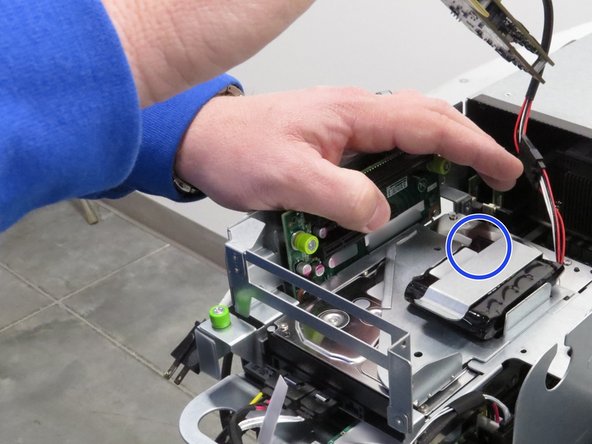

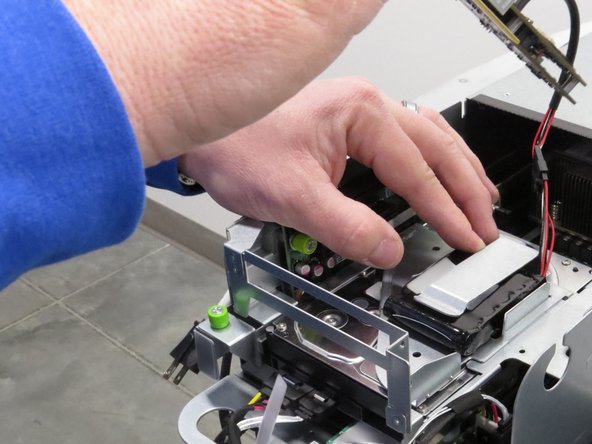

  3. Remove the battery pack with the RAID controller. Remove the battery pack with the RAID controller. Remove the battery pack with the RAID controller.

    • Remove the battery pack with the RAID controller.

    Edit
Conclusion

This work is licensed under a Creative Commons Attribution 4.0 International License.
