Removing the Powerblade Cable

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

3

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

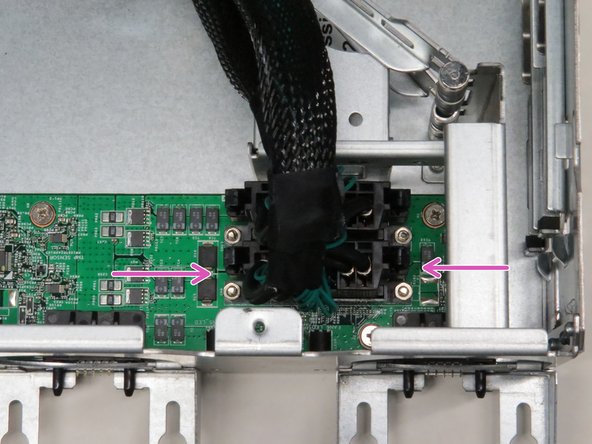

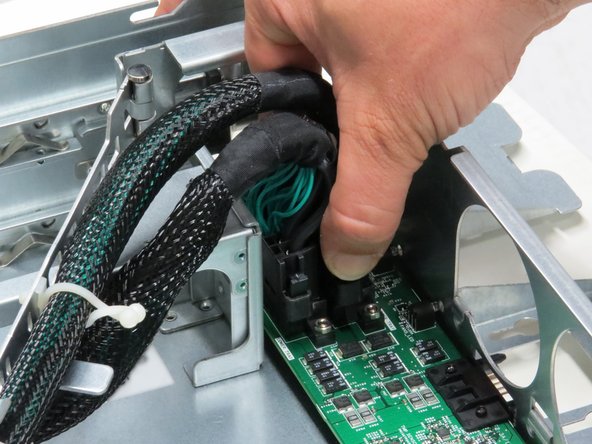

  1. Press the tabs on the Powerblade cable to release the cable. Pull the cable upwards. Pull the cable upwards.

    • Press the tabs on the Powerblade cable to release the cable.

    • Pull the cable upwards.

    Edit

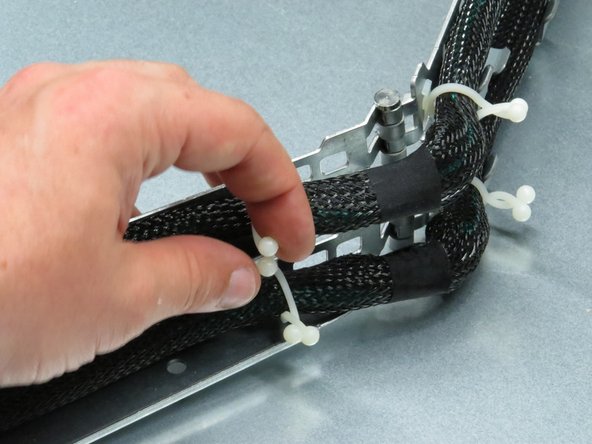

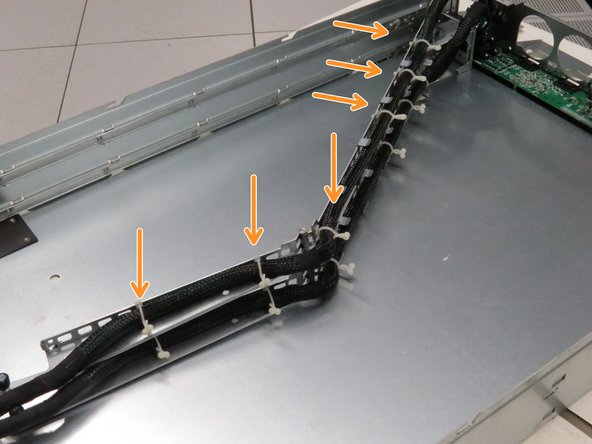

  2. Untether the cable from the chassis by untwisting the six nylon cable management ties. Untether the cable from the chassis by untwisting the six nylon cable management ties.

    • Untether the cable from the chassis by untwisting the six nylon cable management ties.

    Edit

  3. Connect a new Powerblade cable to the fan controller board.

    • Connect a new Powerblade cable to the fan controller board.

    • When installing a new Powerblade cable, ensure the cable end labeled "PTB SIDE" is situated to interface with the drive plane board.
