Removing the Server Sled

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

4

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

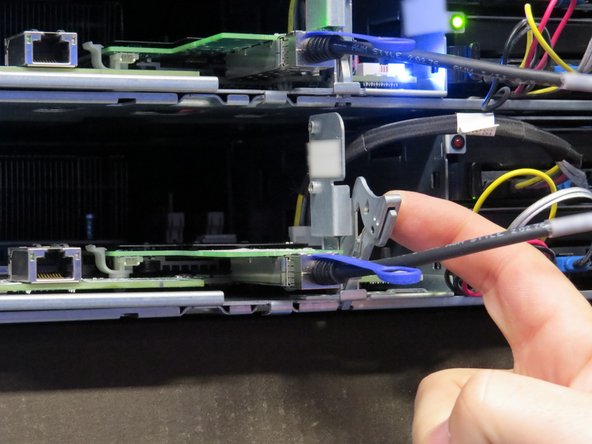

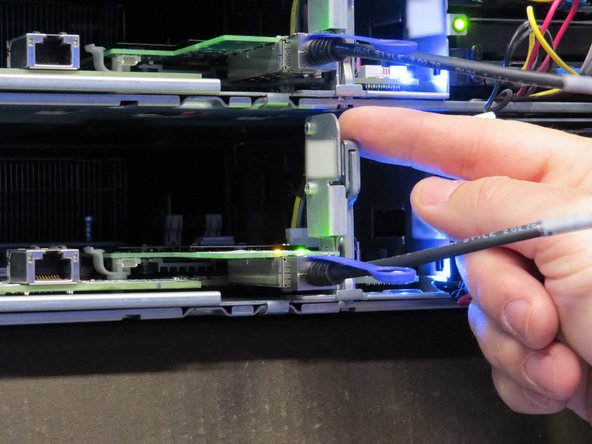

  1. Press the button on the server sled release lever and pull the lever. This unlocks the sled from the chassis. This unlocks the sled from the chassis.

    • Press the button on the server sled release lever and pull the lever.

    • This unlocks the sled from the chassis.

    Edit

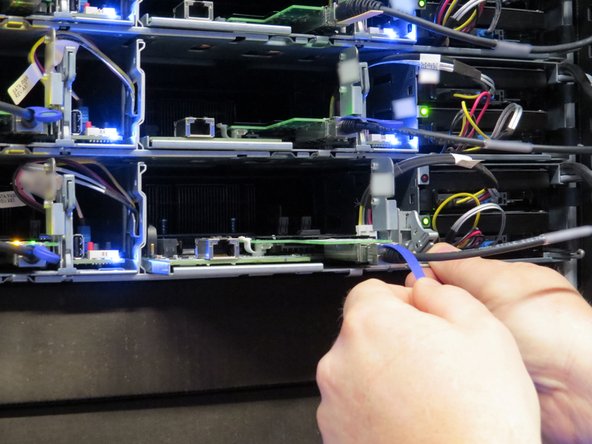

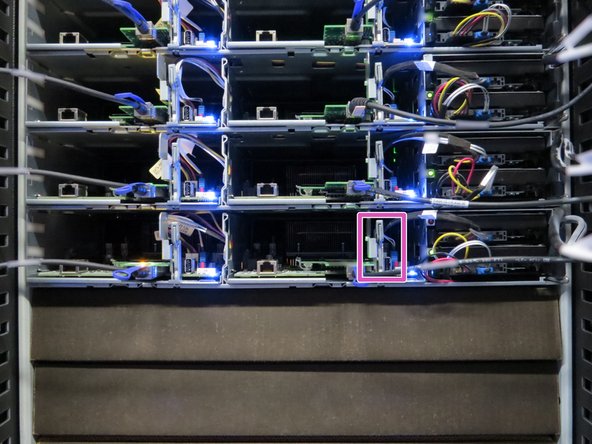

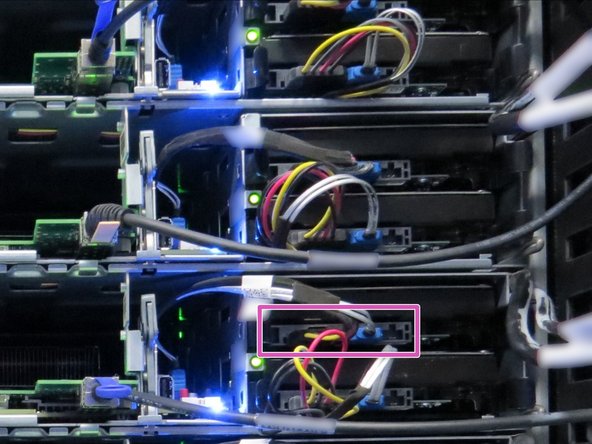

  2. Disconnect the 10G SFP+ cable from the network interface controller. Disconnect the SATA / power cables connected to the boot hard disk drive. Node 1 (right-most sled) boot drive is the top drive in the chassis. Node 0 (left-most sled) boot drive is the bottom drive in the chassis.

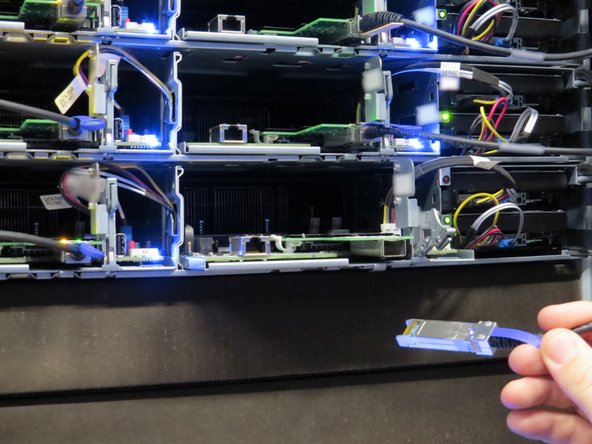

    • Disconnect the 10G SFP+ cable from the network interface controller.

    • Disconnect the SATA / power cables connected to the boot hard disk drive.

    • Node 1 (right-most sled) boot drive is the top drive in the chassis. Node 0 (left-most sled) boot drive is the bottom drive in the chassis.

    • Disconnecting the SATA / power cable can be performed on either the motherboard or HDD end of server node 1 . However, the SATA / power cable must be disconnected from the motherboard end on node 0.

    Edit

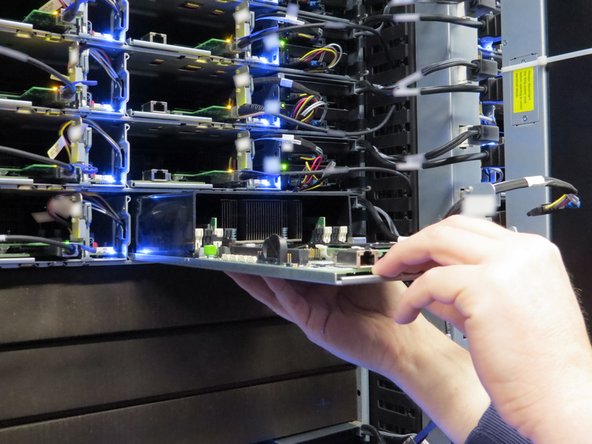

  3. Pull the server sled from the chassis.

    • Pull the server sled from the chassis.

    Edit

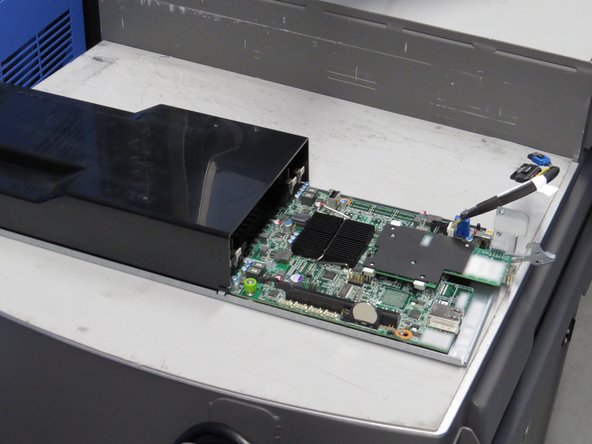

  4. Place the server sled on a work surface.

    • Place the server sled on a work surface.

    Edit
