Removing the Server from the Rack

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

4

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

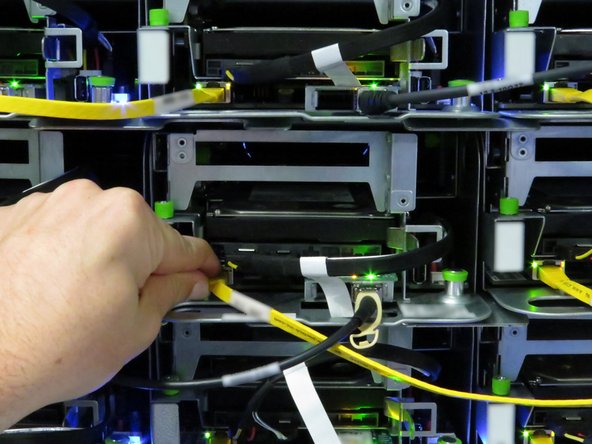

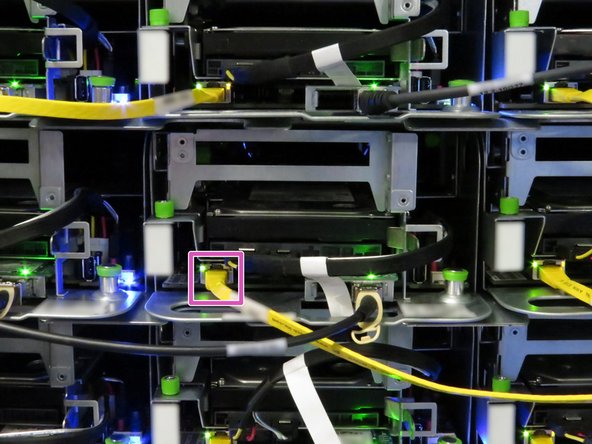

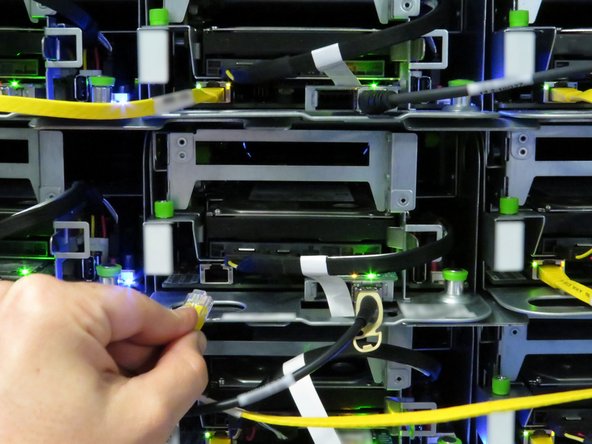

  1. Disconnect the Ethernet cable from the server. Press the tab on the end of the cable to release it. Press the tab on the end of the cable to release it.

    • Disconnect the Ethernet cable from the server.

    • Press the tab on the end of the cable to release it.

    Edit

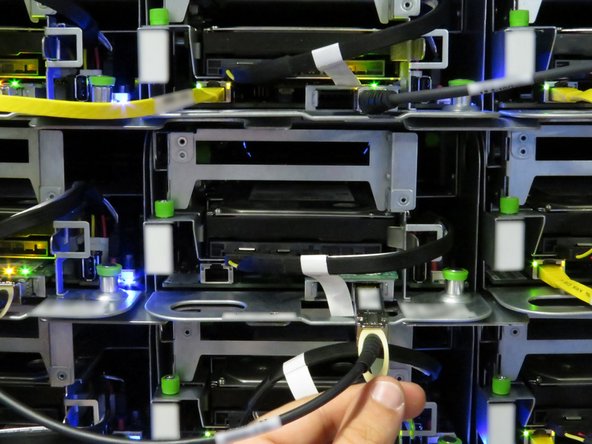

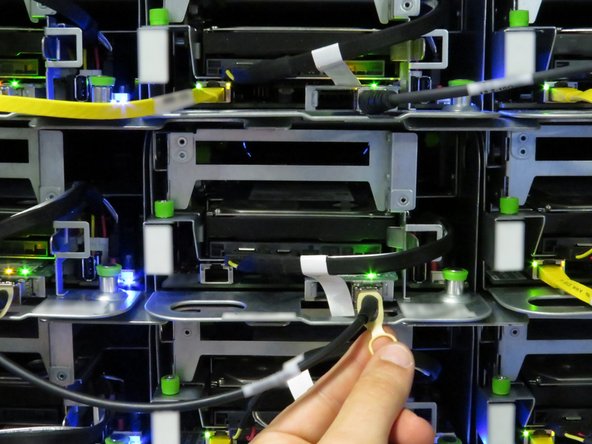

  2. Disconnect the 10G SFP+ cable from the network interface controller. Use the pull-tab to disconnect the cable.

    • Disconnect the 10G SFP+ cable from the network interface controller.

    • Use the pull-tab to disconnect the cable.

    Edit

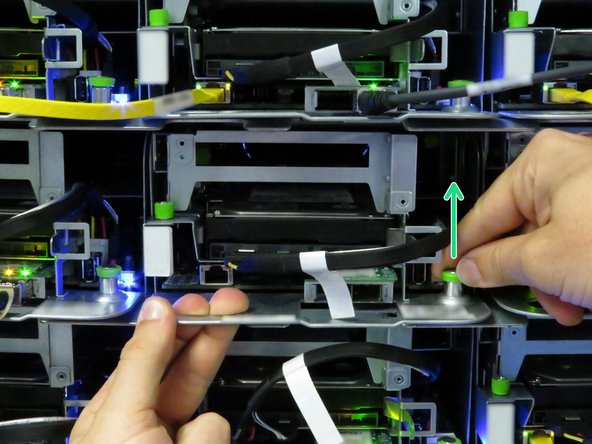

  3. Grasp the server as shown. Pull the retention plunger upwards. Begin sliding the server out of the rack.

    • Grasp the server as shown.

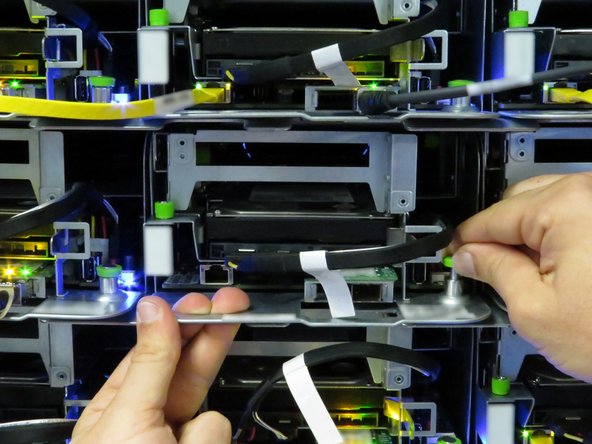

    • Pull the retention plunger upwards.

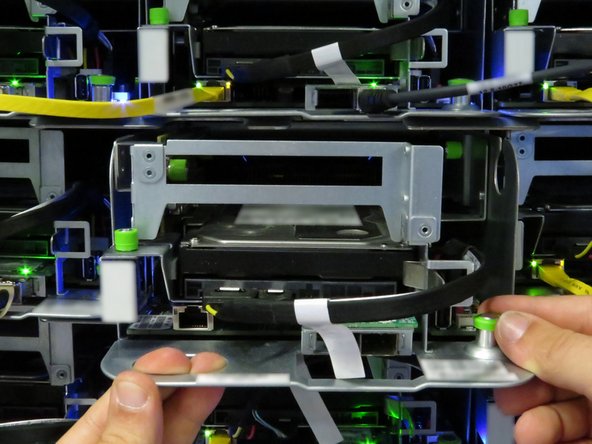

    • Begin sliding the server out of the rack.

    Edit

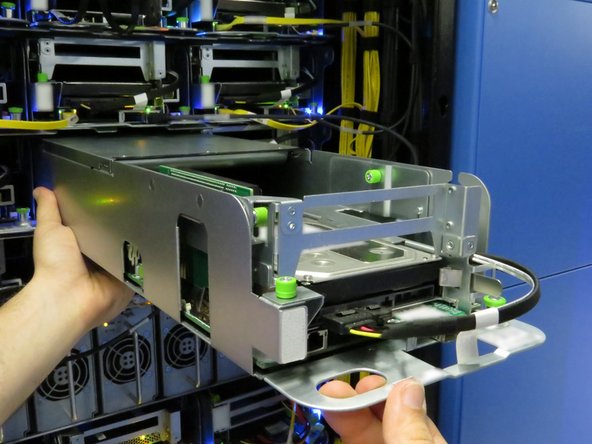

  4. Counter the weight of the server, as shown.

    • Counter the weight of the server, as shown.

    • Completely remove the server from the rack.

    Edit
