Removing the Storage Tray Chassis

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

5

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

    • Remove the remaining storage tray.

    • The process to remove the second tray is identical to removing the first tray.

    Edit

  2. Remove the six chassis fans. Unscrew the thumbscrew on each of the fans.

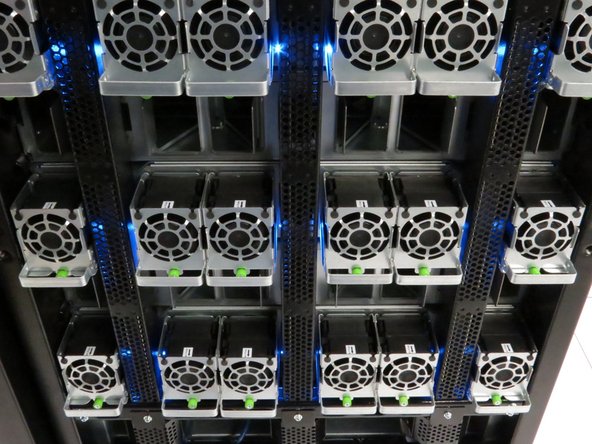

    • Remove the six chassis fans.

    • Unscrew the thumbscrew on each of the fans.

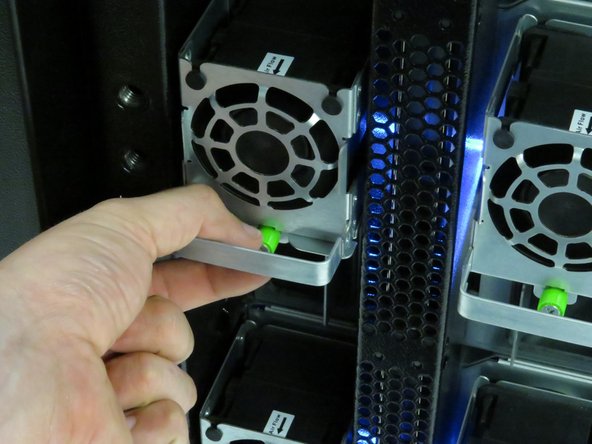

    • Grasp the fan handle and slide it to the rear. Lift the fan upwards.

    Edit

  3. Push the storage chassis about 5cm from the rear of the rack.

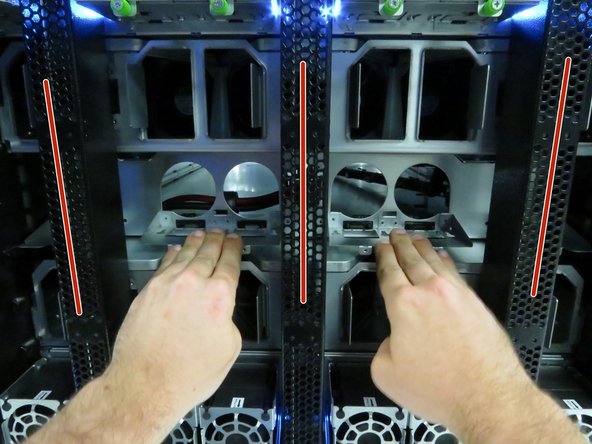

    • Push the storage chassis about 5cm from the rear of the rack.

    • Be careful whenever working around the Open Rack bus bars. Never touch live bus bars.

    Edit

  4. Go to the front of the Open Rack. Remove the storage chassis from the Open Rack.

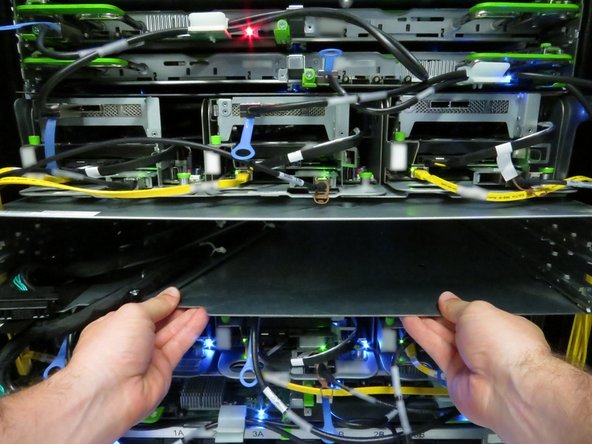

    • Go to the front of the Open Rack.

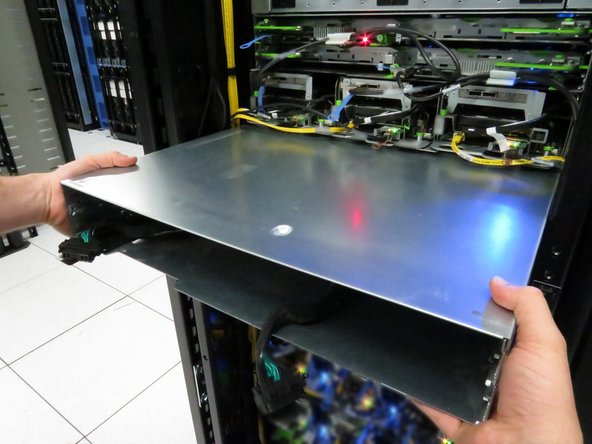

    • Remove the storage chassis from the Open Rack.

    Edit

  5. Loosen the two thumbscrews on top of the chassis lid. Pull the lid towards the rear of of the chassis. Pull the lid towards the rear of of the chassis.

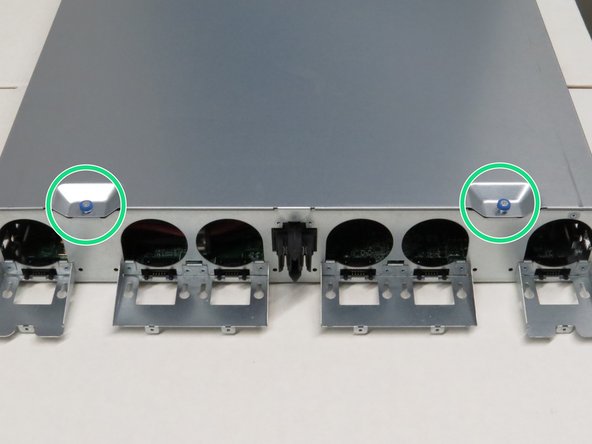

    • Loosen the two thumbscrews on top of the chassis lid.

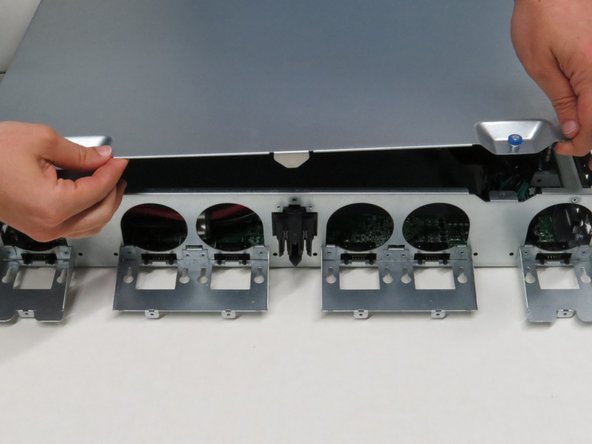

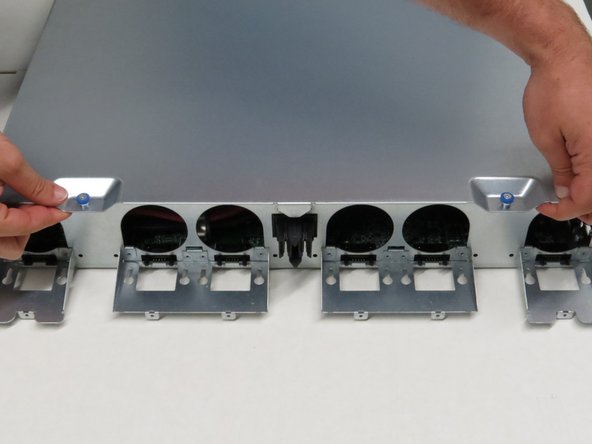

    • Pull the lid towards the rear of of the chassis.

    Edit
Conclusion
