Introduction
Overview
Replacing the power transition board in an Open Vault storage tray.
-
-

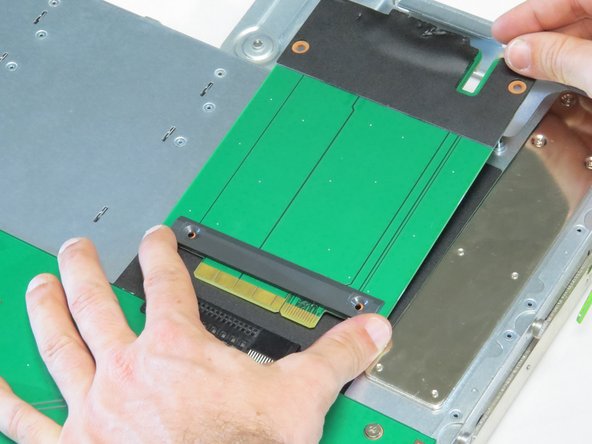

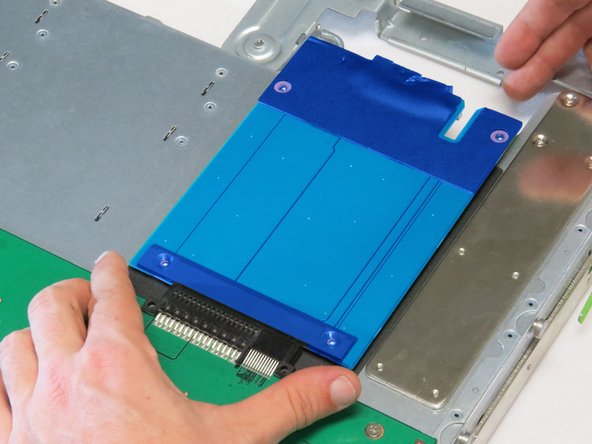

Engage the power transition board, as shown.
-

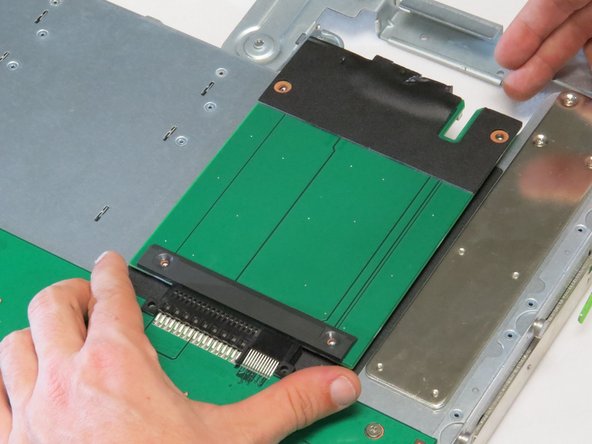

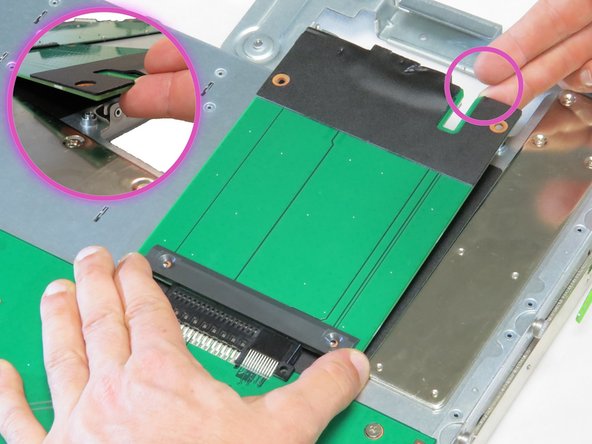

Tilt the power transition board at a slight angle upwards, as shown.
-

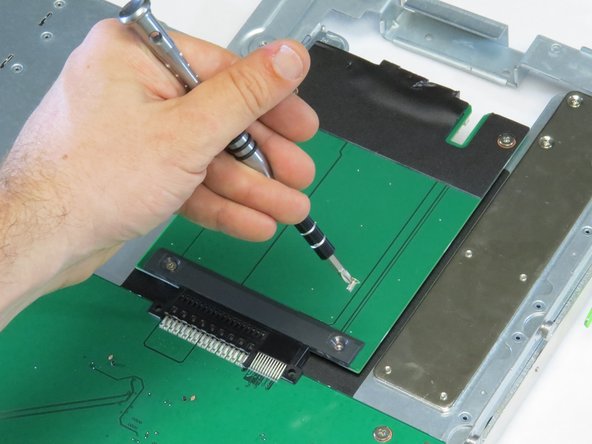

Disconnect the power transition board.
-
-
-

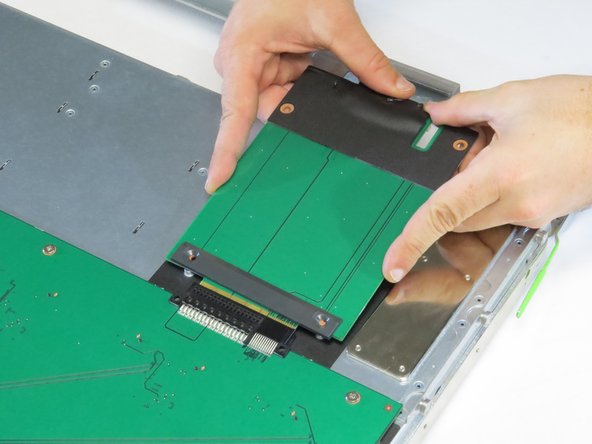

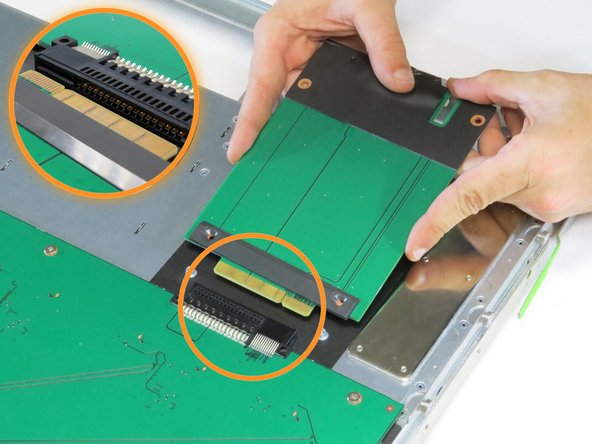

Align the new power transition board with its connector.
-

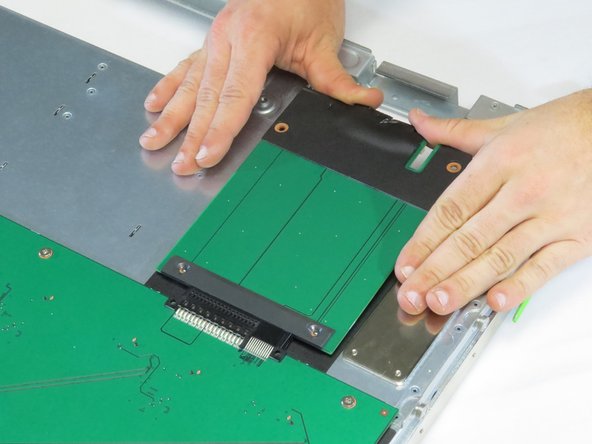

Push the board into its connector.
-
-
-

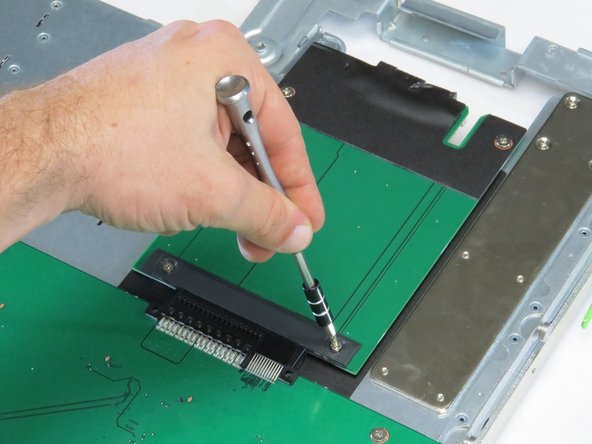

Secure the power transition board back to the Open Vault tray chassis.
-
