Replacing the Riser Card

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

4

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

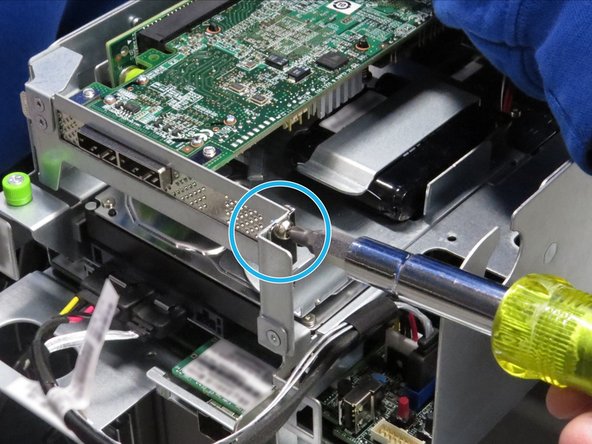

  1. Remove the the screw from the RAID controller bracket with a Phillips #2 screwdriver.

    • Remove the the screw from the RAID controller bracket with a Phillips #2 screwdriver.

    Edit

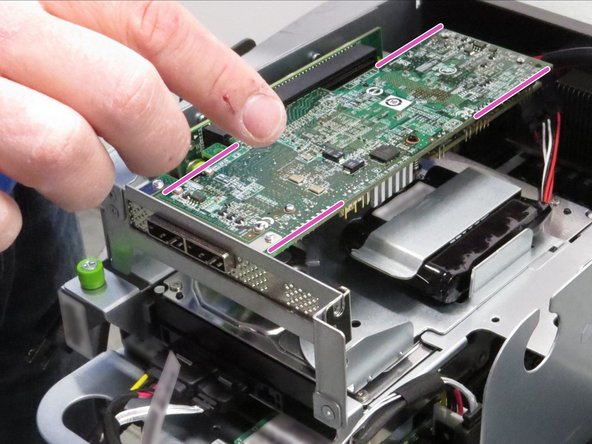

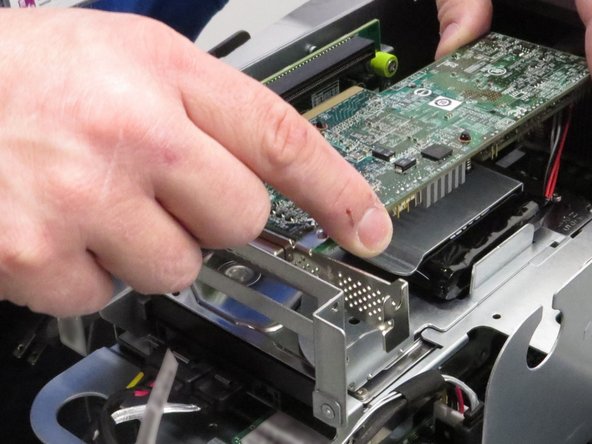

  2. Grasp the edges of the RAID controller, as shown. Pull the RAID controller from the PCI riser card socket. Pull the RAID controller from the PCI riser card socket.

    • Grasp the edges of the RAID controller, as shown.

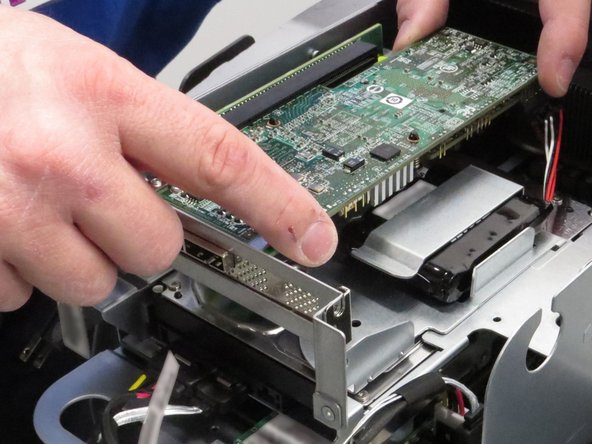

    • Pull the RAID controller from the PCI riser card socket.

    Edit

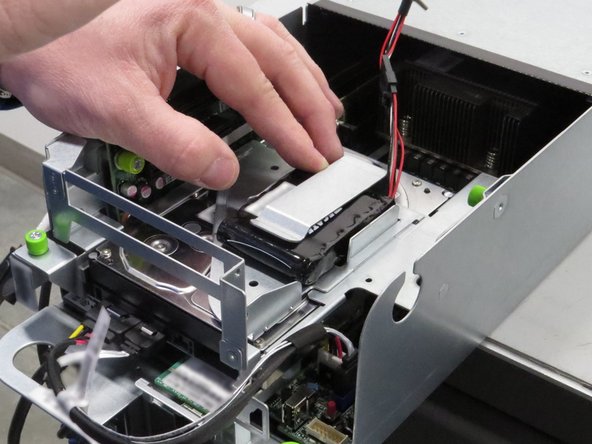

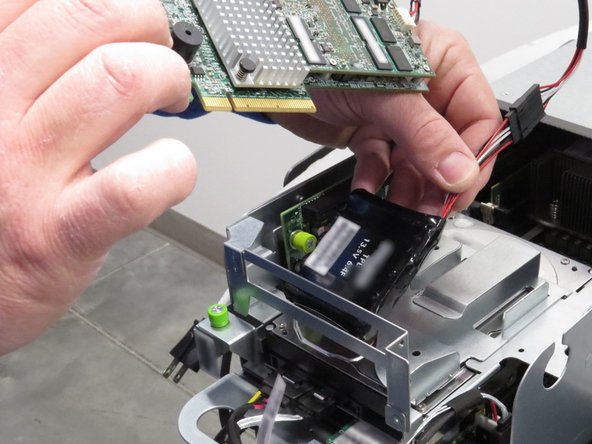

  3. Push the RAID controller battery away from its retention clip. Remove the RAID controller and its tethered battery pack, as shown. Remove the RAID controller and its tethered battery pack, as shown.

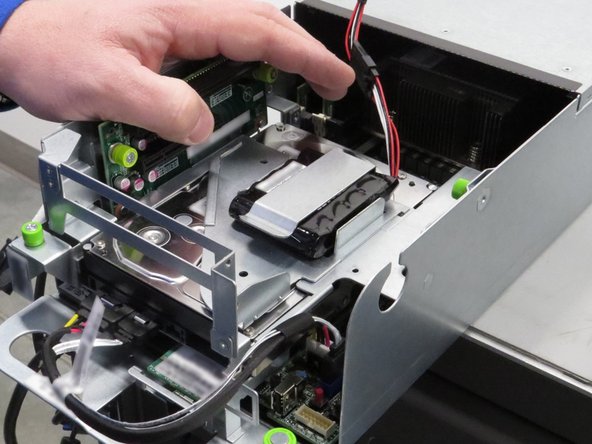

    • Push the RAID controller battery away from its retention clip.

    • Remove the RAID controller and its tethered battery pack, as shown.

    Edit

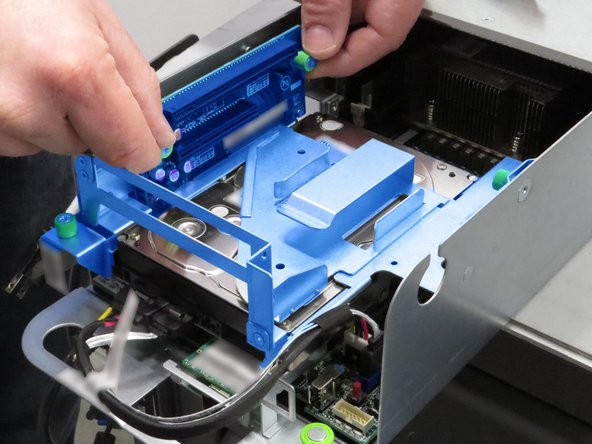

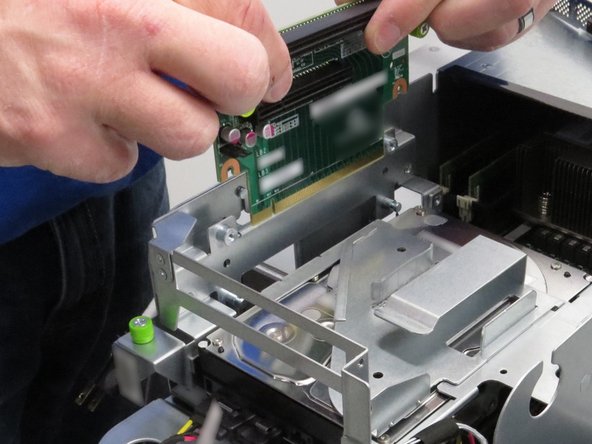

  4. Loosen the (2) thumbscrews securing the PCI riser card. Lift the riser card away from its socket. Lift the riser card away from its socket.

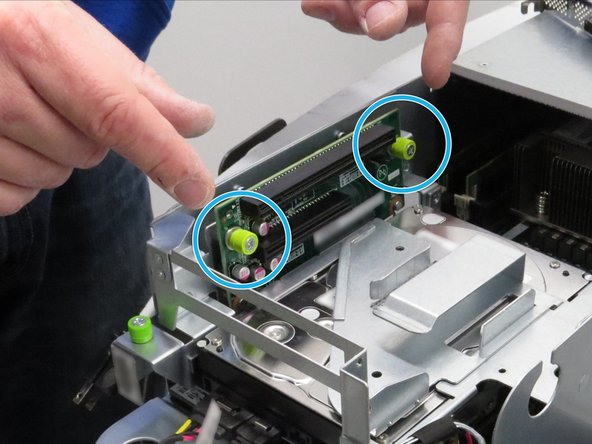

    • Loosen the (2) thumbscrews securing the PCI riser card.

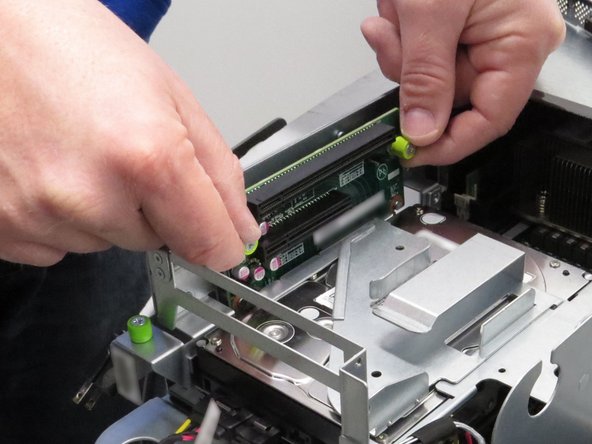

    • Lift the riser card away from its socket.

    Edit
