Riser Card - PCIe Replacement

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

3

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

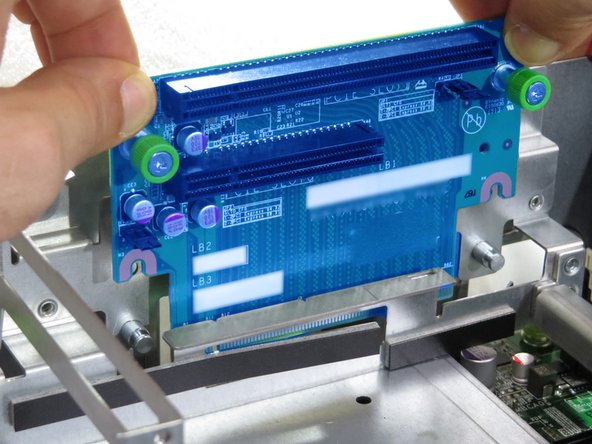

  1. Loosen the two thumbscrews securing the riser card to the riser cage. Loosen the two thumbscrews securing the riser card to the riser cage.

    • Loosen the two thumbscrews securing the riser card to the riser cage.

    Edit

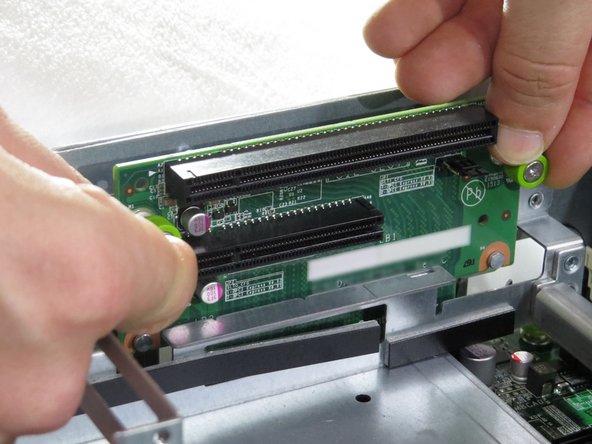

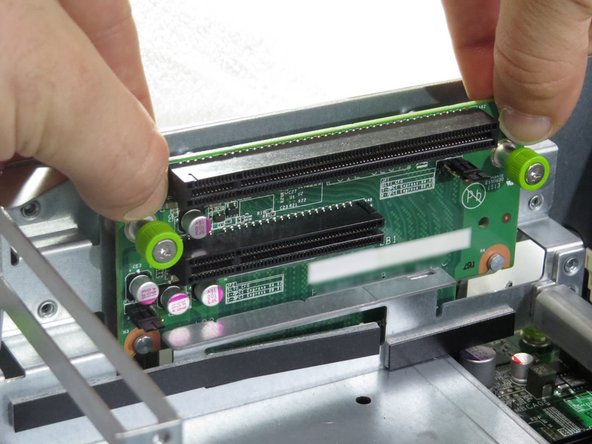

  2. Pull the PCIe card upwards to disconnect it from its socket. Pull the PCIe card upwards to disconnect it from its socket.

    • Pull the PCIe card upwards to disconnect it from its socket.

    Edit

  3. Align the guides on the on the PCIe riser card. Install a new PCIe riser card into the server. Tighten the two thumbscrews.

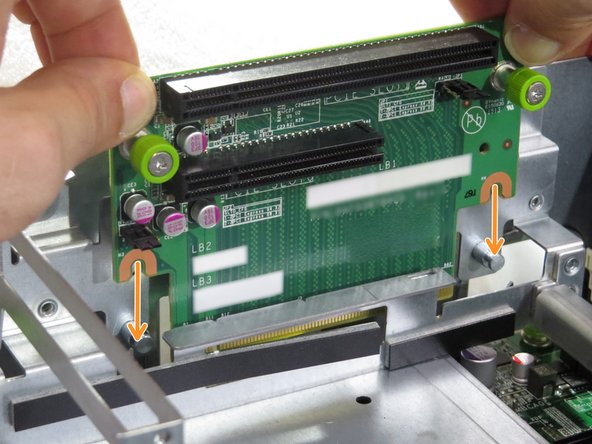

    • Align the guides on the on the PCIe riser card.

    • Install a new PCIe riser card into the server.

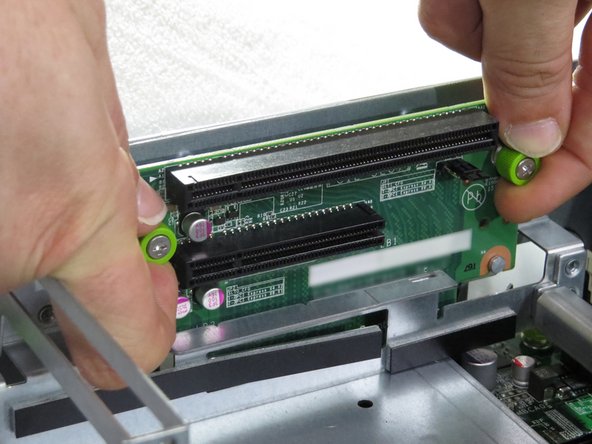

    • Tighten the two thumbscrews.

    Edit
