SAS Expander Board Replacement

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

7

Time Required

Suggest a time??

Sections

1

Flags

1

Prerequisite Only

Prerequisite Only

This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Quiz

0

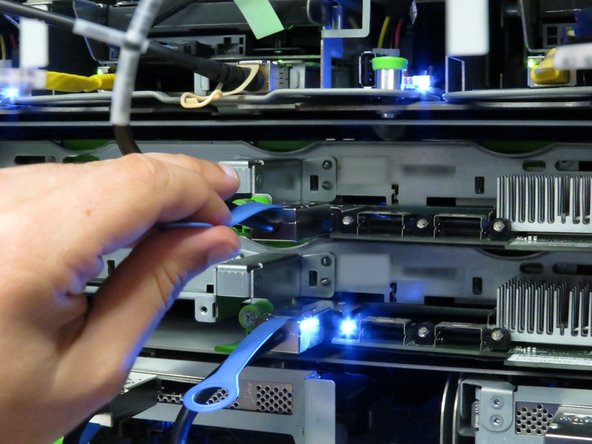

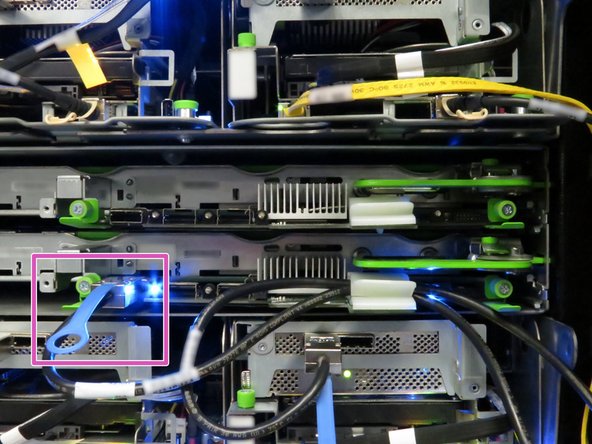

  1. Disconnect the Mini-SAS cable. Pull on the pull-tab to release the cable.

    • Disconnect the Mini-SAS cable.

    • Pull on the pull-tab to release the cable.

    Edit

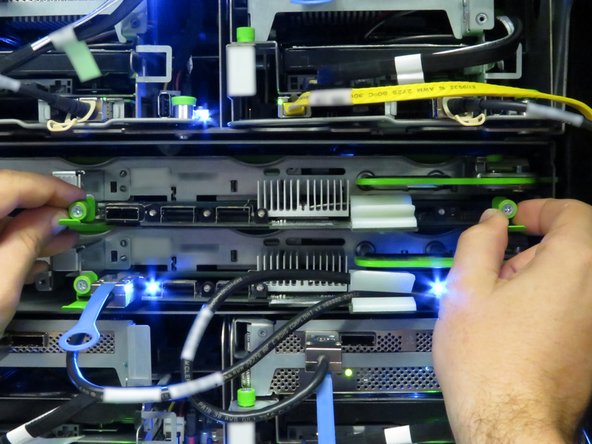

  2. Loosen the two thumbscrews on, as shown.

    • Loosen the two thumbscrews on, as shown.

    Edit

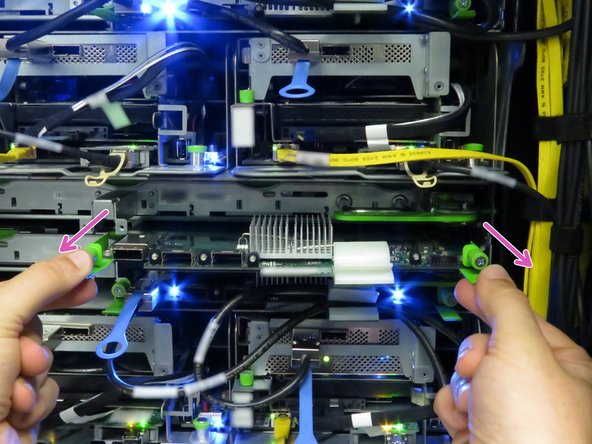

  3. Pull on the two tabs to remove the SAS expander board from the storage tray, as shown.

    • Pull on the two tabs to remove the SAS expander board from the storage tray, as shown.

    Edit

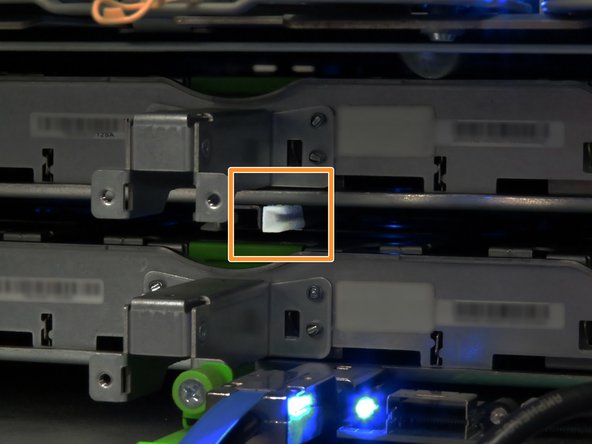

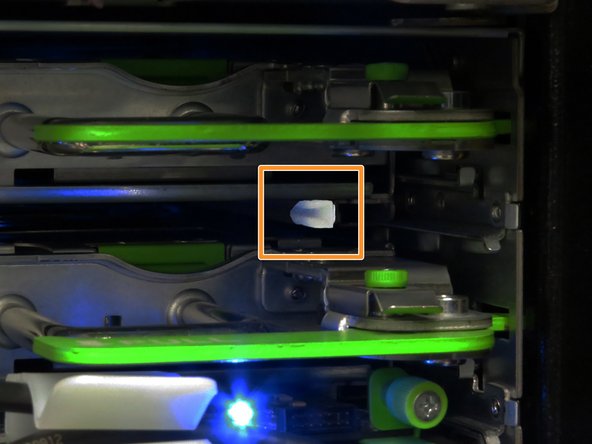

  4. Align the outside edges of the SAS expander board with the nylon guides found underneath the storage tray chassis. Align the outside edges of the SAS expander board with the nylon guides found underneath the storage tray chassis.

    • Align the outside edges of the SAS expander board with the nylon guides found underneath the storage tray chassis.

    Edit

  5. Slide the board into the storage tray. An audible 'click' will be heard when the tray has seated with its socket correctly.

    • Slide the board into the storage tray.

    • An audible 'click' will be heard when the tray has seated with its socket correctly.

    Edit

  6. Tighten the two thumbscrews.

    • Tighten the two thumbscrews.

    Edit

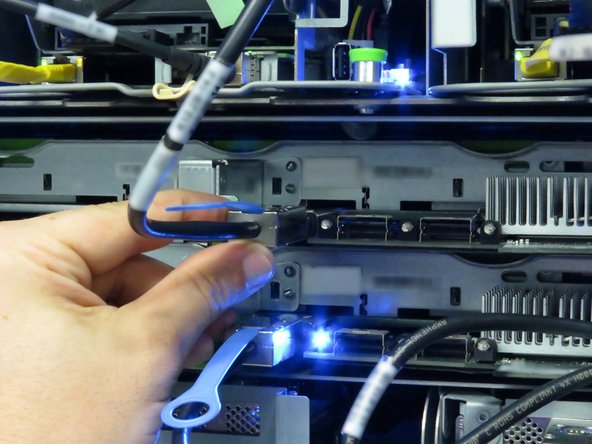

  7. Connect the Mini-SAS cable.

    • Connect the Mini-SAS cable.

    Edit
