SSD Adapter Installation Techniques - 7mm

Written By: Dozuki System
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

5

Time Required

Suggest a time??

Sections

1

Flags

0

Introduction

This guide details the necessary steps to mate a Solid State Drive (SSD) with the solid state drive adapter.

  1. Use caution when inserting the Solid State Drive (SSD) into the adapter as the foam strip edge can catch on the SSD. Insert the SSD at an angle to avoid direct contact with the foam strip's edge. Insert the SSD at an angle to avoid direct contact with the foam strip's edge.

    • Use caution when inserting the Solid State Drive (SSD) into the adapter as the foam strip edge can catch on the SSD.

    • Insert the SSD at an angle to avoid direct contact with the foam strip's edge.

    Edit

  2. Continue sliding the SSD into the adapter at an angle until fully seated in the unit. Continue sliding the SSD into the adapter at an angle until fully seated in the unit. Continue sliding the SSD into the adapter at an angle until fully seated in the unit.

    • Continue sliding the SSD into the adapter at an angle until fully seated in the unit.

    Edit

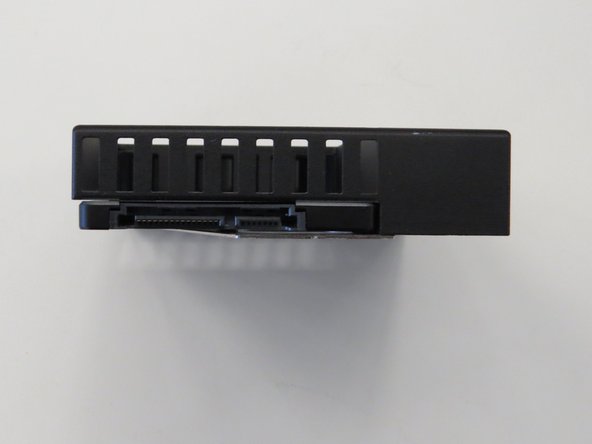

  3. Once installed, the SSD connector should be facing outward as shown.

    • Once installed, the SSD connector should be facing outward as shown.

    Edit

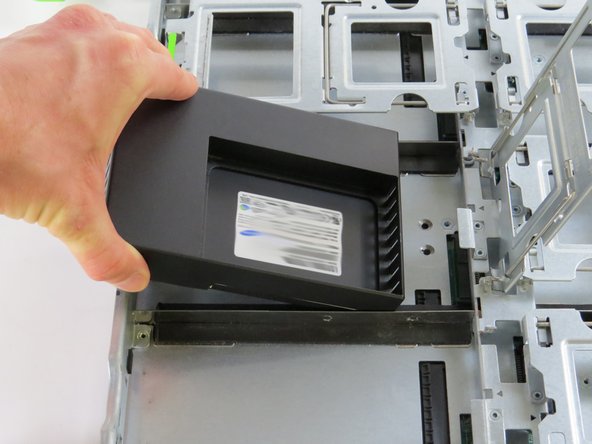

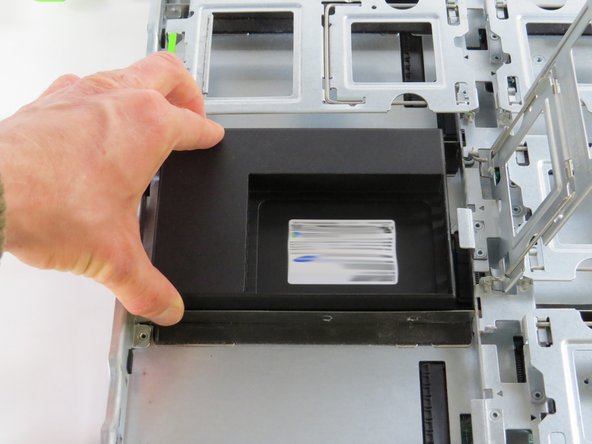

  4. Lower the mated unit into the Open Vault. Lower the mated unit into the Open Vault. Lower the mated unit into the Open Vault.

    • Lower the mated unit into the Open Vault.

    Edit

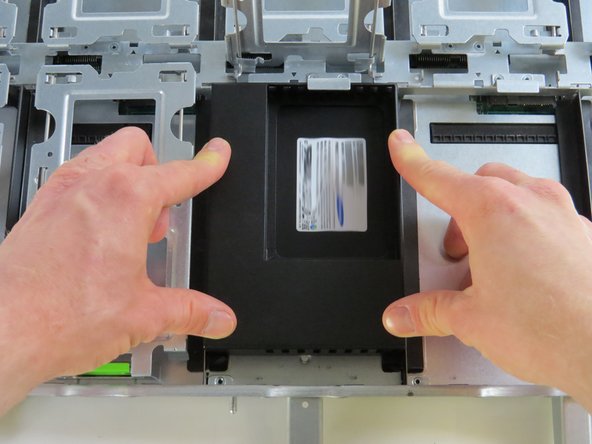

  5. Press down firmly to ensure both sockets align properly. Slide the unit forward until fully seated.

    • Press down firmly to ensure both sockets align properly.

    • Slide the unit forward until fully seated.

    Edit
