Hard Disk Drive Replacement

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

9

Time Required

Suggest a time??

Sections

1

Flags

0

Introduction

Overview

This guide demonstrates how to replace a boot hard disk drive in an Open Compute V2 server. == Acronyms and Terms == * HDD - Hard Disk Drive * SATA - Serial ATA === Additional Information === The images in this procedure displays HDD removal on a work surface. However, servicing a HDD can be accomplished within the rack (eliminating the need to remove the server chassis or sled).

  1. The server can be powered off remotely or on the hardware itself.

    • The server can be powered off remotely or on the hardware itself.

    • Remote Power Down: Login to the server to power it off.

    • shutdown -h now;exit

    • Hardware Power Down: Press and hold the power switch for at least three seconds, as annotated.

    Edit

  2. The images in this procedure displays HDD removal on a work surface. However, servicing a HDD can be accomplished in-rack. Disconnect the SATA / power cable from the failed hard disk drive.

    • The images in this procedure displays HDD removal on a work surface. However, servicing a HDD can be accomplished in-rack.

    • Disconnect the SATA / power cable from the failed hard disk drive.

    • Each connector features a metal retention tab. Make sure to actuate the tab before pulling the cable.

    Edit

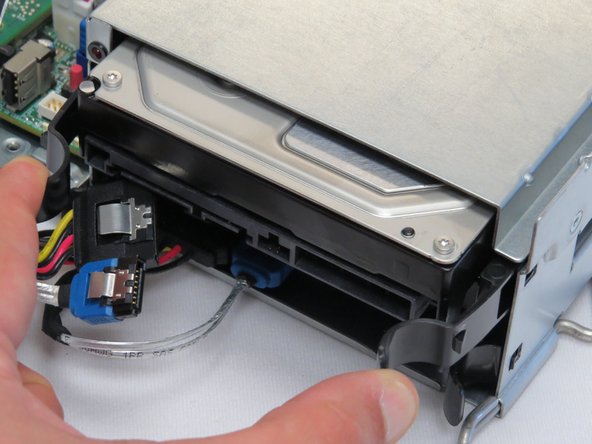

  3. Squeeze the two retention tabs on either side of the HDD. Pull the HDD away from the chassis. Pull the HDD away from the chassis.

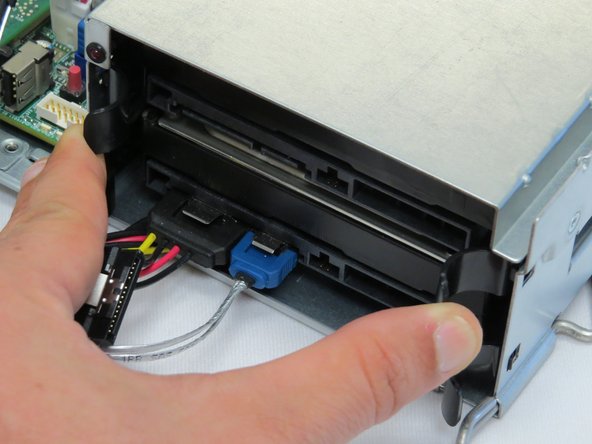

    • Squeeze the two retention tabs on either side of the HDD.

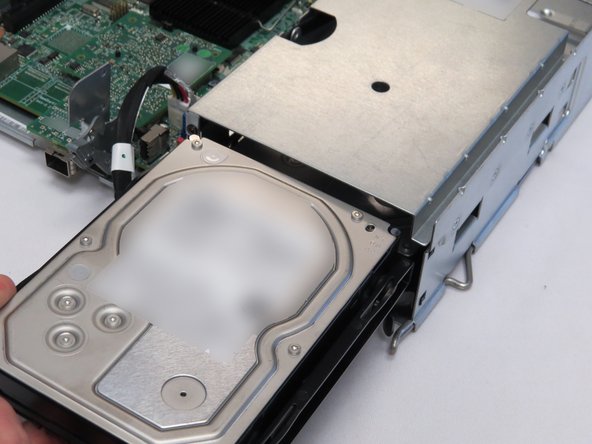

    • Pull the HDD away from the chassis.

    Edit

  4. Pull the HDD away from the plastic drive caddy. Pull the HDD away from the plastic drive caddy.

    • Pull the HDD away from the plastic drive caddy.

    Edit

  5. Make sure the rubber grommets remain in the drive caddy. If the rubber grommets fall out, insert them as shown. If the rubber grommets fall out, insert them as shown.

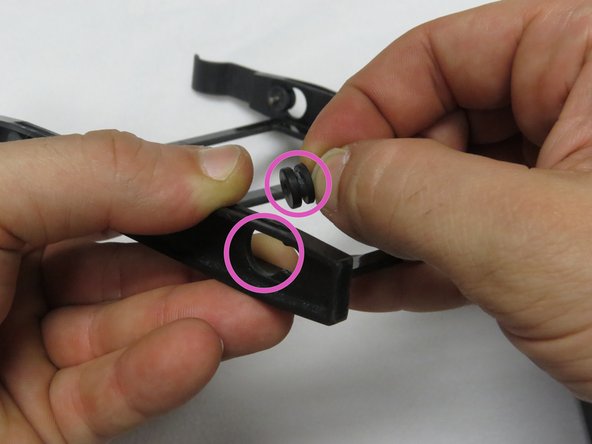

    • Make sure the rubber grommets remain in the drive caddy.

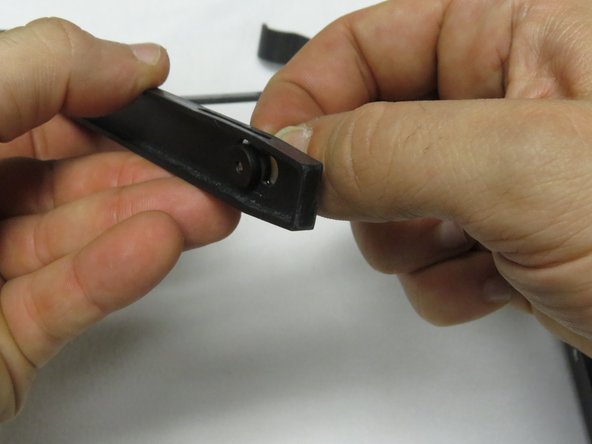

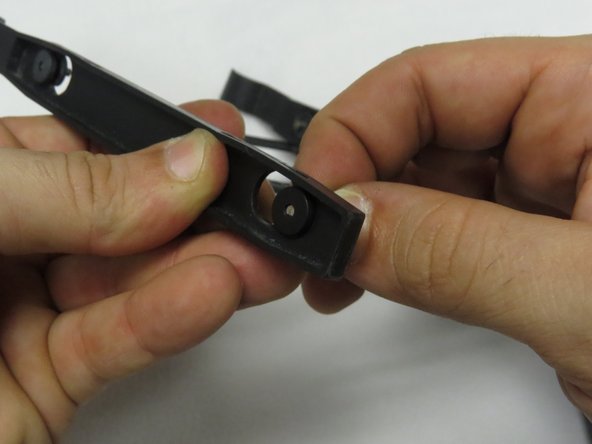

    • If the rubber grommets fall out, insert them as shown.

    Edit

  6. Install the new HDD into the drive caddy. Install the new HDD into the drive caddy.

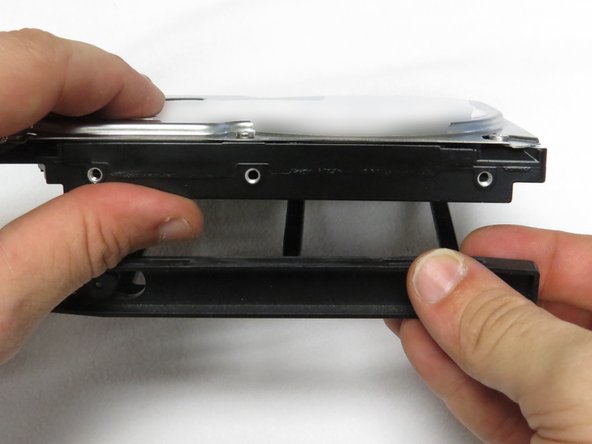

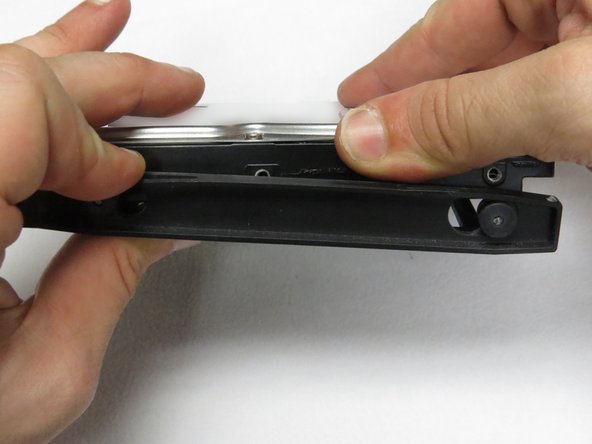

    • Install the new HDD into the drive caddy.

    Edit

  7. Slide the HDD back into the drive slot.

    • Slide the HDD back into the drive slot.

    • The retention clips will make a distinctive 'click' when the drive is properly seated.

    Edit

  8. Connect the SATA / power cable to the HDD.

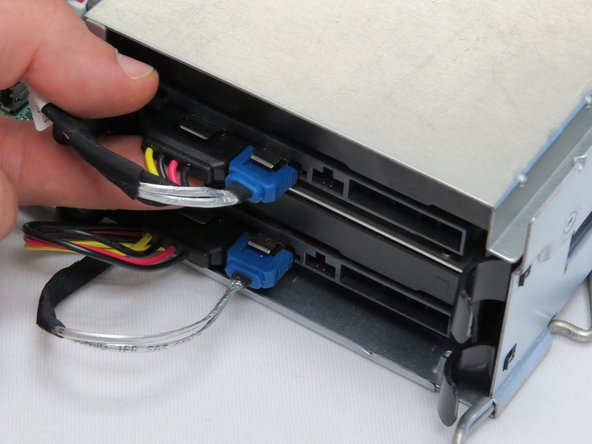

    • Connect the SATA / power cable to the HDD.

    Edit

  9. Power on the server.

    • Power on the server.

    Edit
Conclusion

This work is licensed under a Creative Commons Attribution 4.0 International License.
